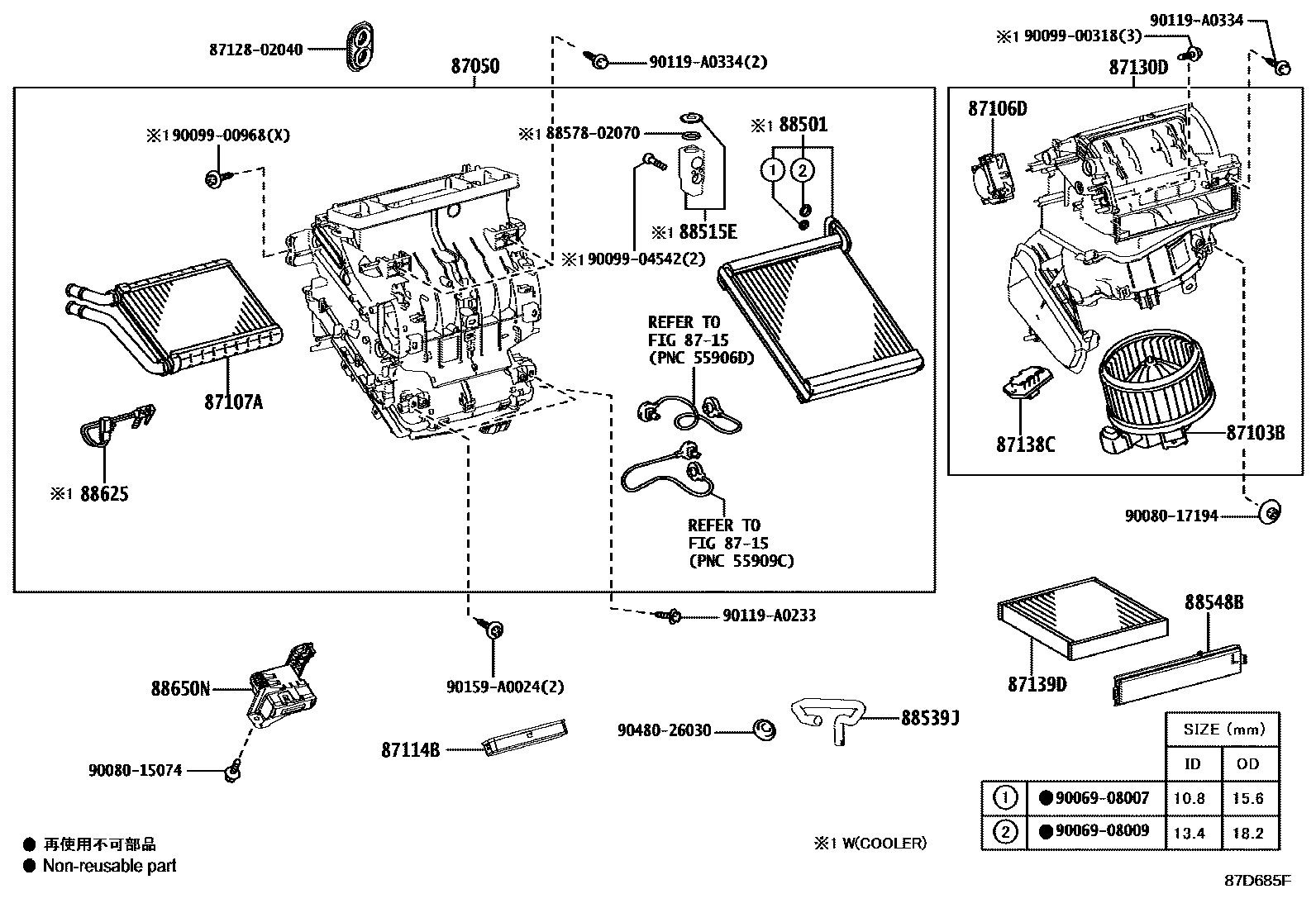

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B70iZRE172..CVT..S;ZRE172..LE..GEN;ZRE172..6F..S..GEN201608

AIR CONDITIONER-MANUAL

main87050-02B70iZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)201308-201608

main87050-02B80iZRE172..CVT..S;ZRE172..LE..GEN;ZRE172..6F..S..GEN201404-201608

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02200iZRE172..4FC201308-201608

main87103-02200iZRE172..STD..GEN;ZRE172..6F..S..MXC;ZRE172..(LE,STD)..MXC201608

AIR CONDITIONER-MANUAL

main87103-02210iZRE172..S..GEN201404-201608

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-02210iZRE172..CVT..S;ZRE172..LE..GEN;ZRE172..6F..S..GEN201608

AIR CONDITIONER-MANUAL

main87106-02210iZRE172..4FC201308-201608

main87106-02220iZRE172..S..GEN201404-201608

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02230iZRE172..4FC201308-201608

87114BCOVER, HEATER

main87114-02030iZRE172..4FC201308-201608

87130DBLOWER ASSY

main87130-02A10iZRE172..4FC201308-201608

main87130-02A10iZRE172..STD..GEN;ZRE172..6F..S..MXC;ZRE172..(LE,STD)..MXC201608

AIR CONDITIONER-MANUAL

main87130-02A20iZRE172..S..GEN201404-201608

87138CRESISTOR, BLOWER

main87138-02110iZRE172..(CVT,MTM)..S..MXC;ZRE172..(CVT,MTM)..(LE,STD)201308-201608

main87138-02110iZRE172..STD..GEN;ZRE172..6F..S..MXC;ZRE172..(LE,STD)..MXC201608

AIR CONDITIONER-MANUAL

87139DELEMENT, AIR REFINER

main87139-07020iZRE172..CVT,MTM201308-201608

POLLEN FILTER

main87139-50100iZRE172..4FC201308-201608

*DPF

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02222iZRE172..CVT,MTM201308-201608

88515EVALVE, COOLER EXPANSION, W/PACKING

main88515-02420iZRE172..4FC201308-201608

main88515-02530iZRE172201608

88539JHOSE, DRAIN COOLER

main88539-02270iZRE172..4FC201308-201608

88548BCASE, AIR FILTER

main88548-02110iZRE172201308-201608

88625THERMISTOR, COOLER, NO.1

main88625-02120iZRE172..CVT,MTM201308-201608

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02B10iZRE172..LE,STD;ZRE172..S..MXC201308-201407

main88650-02B11iZRE172..CVT..S;ZRE172..LE..GEN;ZRE172..6F..S..GEN201408-201608

AIR CONDITIONER-WITHOUT

main88650-02B11iZRE172..6F..STD..GEN201608

AIR CONDITIONER-MANUAL

main88650-02B30iZRE172..S..GEN201404-201407

main88650-02B31iZRE172..LE;ZRE172..S..MXC201408-201608

AIR CONDITIONER-AUTO(SINGLE MODE)

main88650-02F70iZRE172..(LE,S)..GEN201608

main88650-02F80iZRE172..CVT..S..MXC201608

8712802040GROMMET, HEATER

main87128-02040

8857802070PAKING, COOLER AIR DUCT

main88578-02070

9006908007

main90069-08007

9006908009

main90069-08009

9008015074

main90080-15074

9008017194

main90080-17194

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

90119A0233

main90119-A0233

90119A0334

main90119-A0334

90159A0024

main90159-A0024

9048026030

main90480-26030

28 parts on this diagram · 2 diagrams in section
