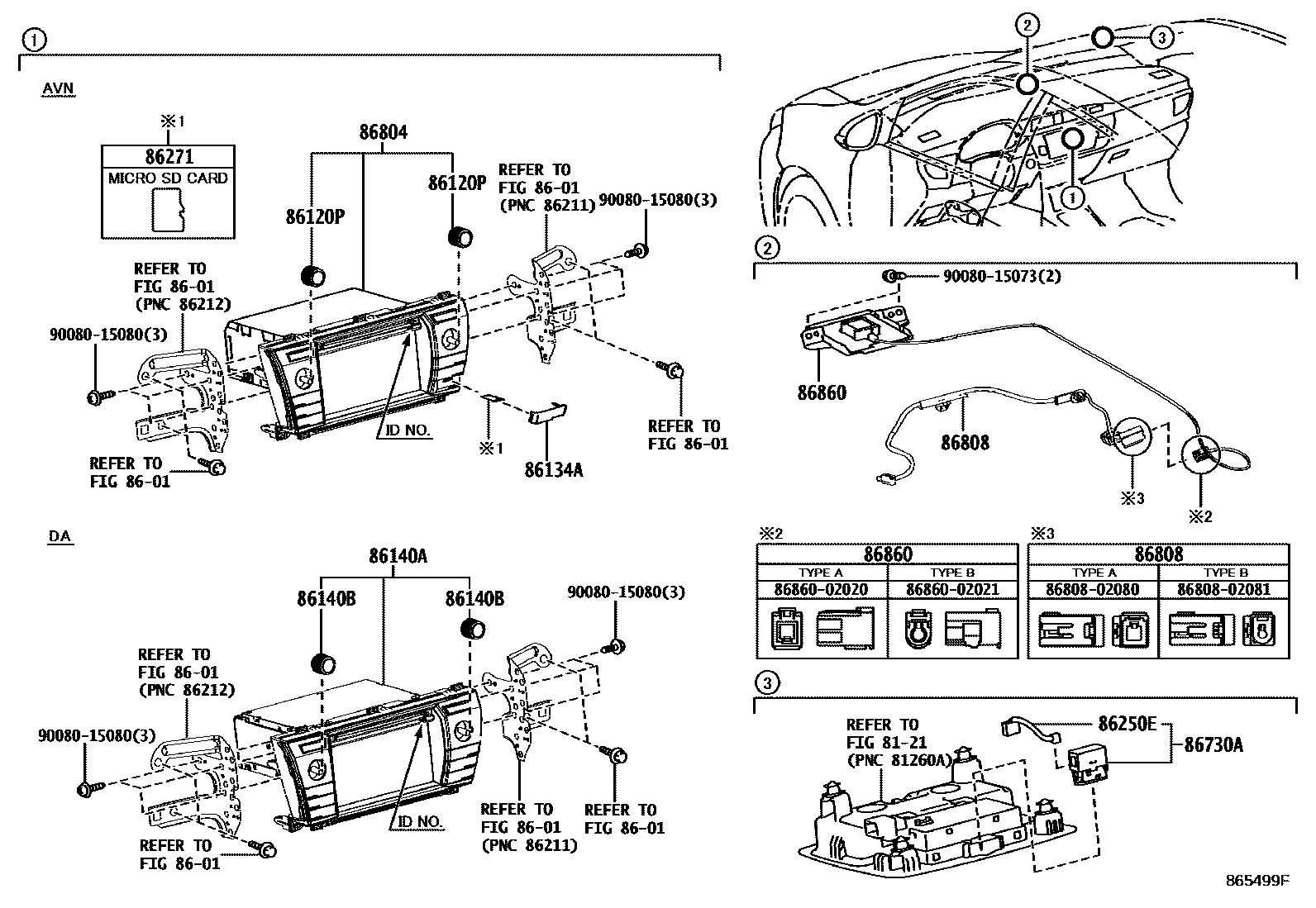

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8121

8601

86120PKNOB, NAVIGATION RECEIVER SWITCH

main90011-23037iZRE172..4FC..S201308-201408

86134APARTS, MULTI-DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-02050iZRE172..4FC..(LE,S)201308-201508

FUJITSU TEN,ID100149,BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86140-02050iZRE172..4FC..STD201308-201508

FUJITSU TEN,ID100149

main86140-02470iZRE172..(LE,S)..MXC201508-201608

FUJITSU TEN,ID100571

main86140-02470iZRE172..(LE,S)..MXC201508-201608

FUJITSU TEN,ID100571,BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main86140-02520iZRE172..MXC201608-201810

FUJITSU TEN,ID100639,MARK 86140-02520

main86140-02521iZRE172..MXC201810-201903

DENSO TEN,ID100639,MARK 86140-02521

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-23037iZRE172..4FC..(LE,S)201308-201608

AUDIO-AVN & 6SPEAKER

main90011-23037iZRE172..4FC..(LE,S)201308-201608

BACK MONITOR(REAR TELEVISION CAMERA)-WITH

main90011-23042iZRE172..MXC201608

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iZRE172201608-201804

main86250-52030iZRE172..4FC201308-201608

AUDIO-RADIO LESS & 4SPEAKER

86271DISC, DISC PLAYER

main86271-0E071

main86271-0E180

main86271-0E181

main86271-0E182

main86271-0E183

main86271-0E184

main86271-0E185

86730AMICROPHONE ASSY, TELEPHONE

main86730-48100iZRE172201804-201903

sub86730-45030

main86730-52020iZRE172201308-201608

AUDIO-RADIO LESS & 4SPEAKER

main86730-52020iZRE172201608-201804

86804COVER SUB-ASSY, NAVIGATION COMPUTER

main86804-02020

main86804-02070

main86804-02100

main86804-02101

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-02080

main86808-02081

86860ANTENNA ASSY, NAVIGATION

main86860-02020

main86860-02021

9008015073

main90080-15073

9008015080

main90080-15080

14 parts on this diagram · 2 diagrams in section
