WIRING & CLAMP

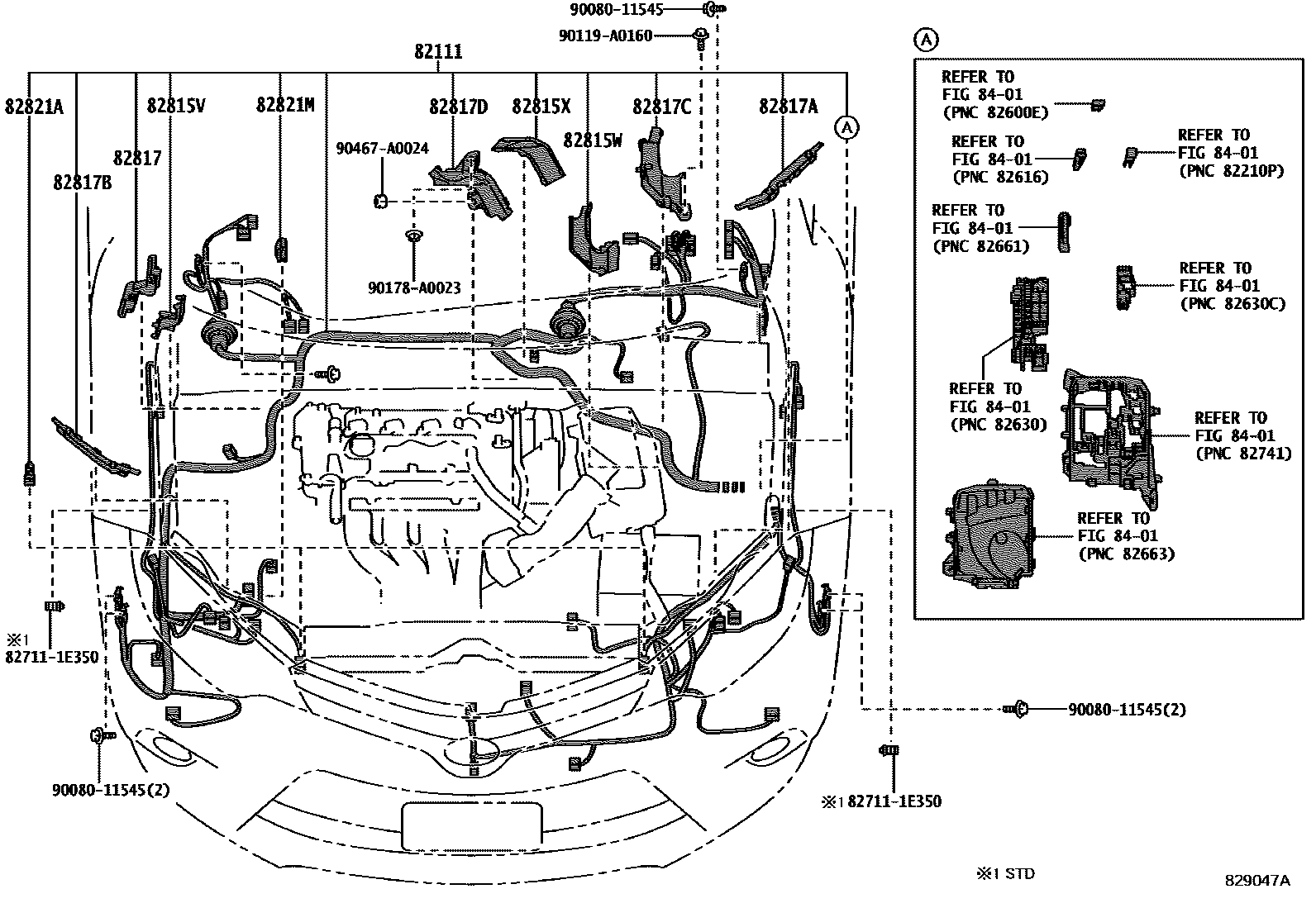

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82115-0ZB40i201308-201508

main82115-0ZB41i201508-201608

main82115-0ZB60i201308-201508

main82115-0ZB61i201508-201608

main82115-0ZQ50i201404-201508

main82115-0ZQ51i201508-201608

main82115-0ZQ60i201404-201508

main82115-0ZQ61i201508-201608

main82115-0ZV10i201608

main82115-0ZV30i201608

main82115-0ZV40i201608

main82115-0ZV50i201608

main82115-0ZV80i201608

main82115-0ZV90i201608

main82115-0ZW00i201608

main82116-0ZK80i201608

82815VCOVER, WIRING HARNESS PROTECTOR, NO.1

main82815-02040i201308-201608

82815WCOVER, WIRING HARNESS PROTECTOR, NO.2

main82815-12250i201308-201608

82815XCOVER, WIRING HARNESS PROTECTOR, NO.3

main82815-12270i201308-201608

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-02100i201308-201608

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-02C40i201308-201608

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-02C50i201308-201608

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12D50i201308-201608

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12D70i201308-201608

82821ACOVER, CONNECTOR

main82821-42040i201308-201608

82821MCOVER, CONNECTOR

main82821-12570i201308-201608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

9008011545

main90080-11545

90119A0160

main90119-A0160

90178A0023

main90178-A0023

90467A0024

main90467-A0024

17 parts on this diagram · 15 diagrams in section
