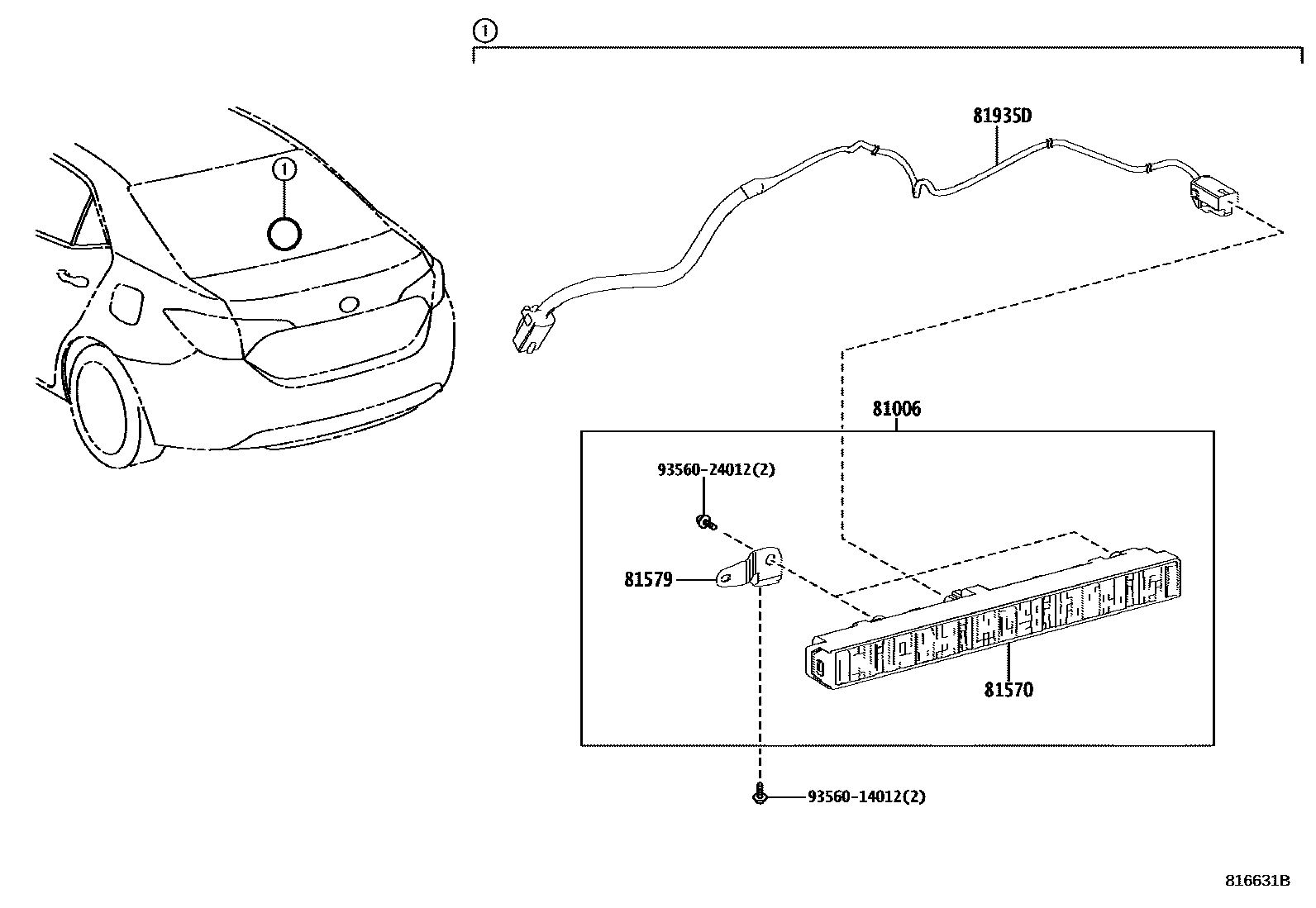

CENTER STOP LAMP

81006LAMP SET, STOP CENTER

main81006-07010iZRE172201308-201608

81570LAMP ASSY, CENTER STOP

main81570-06120iZRE172..4FC201308-201408

81579BRACKET, CENTER STOP LAMP

main81577-33010×2iZRE172..4FC201308-201408

81935DCORD ASSY, CENTER STOP LAMP

main81935-02110iZRE172201308-201608

9356014012

main93560-14012

9356024012

main93560-24012

6 parts on this diagram · 1 diagram in section
