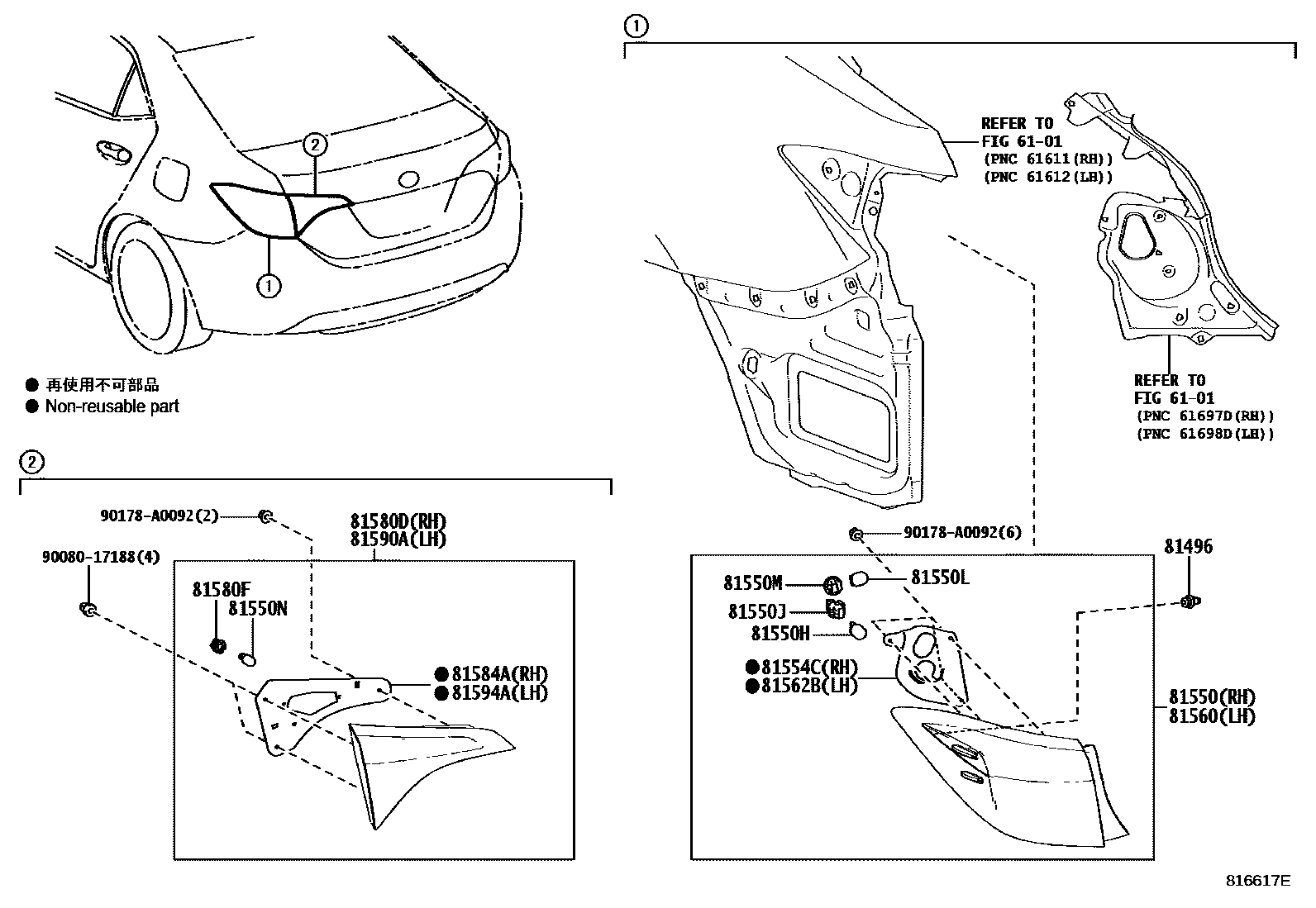

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010iZRE172..CVT,MTM201308-201608

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02750iZRE172..4FC201308-201602

sub81550-02751

main81550-02751iZRE172201603-201608

main81550-02B00iZRE172..LE,STD201608

main81550-02B10iZRE172..S201608

81550HBULB, TAIL & STOP LAMP

main90981-13044iZRE172..4FC201308-201608

main90981-13044iZRE172201608

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60002iZRE172201308-201608

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iZRE172..S201608

12V 21W

main90981-15021iZRE172..4FC201308-201608

main90981-15021iZRE172..LE,STD201608

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main81555-02B10iZRE172..S201608

main90075-60026iZRE172..LE,STD201308-201608

81550NBULB, BACK UP LAMP

main90981-11059iZRE172..4FC201308-201608

main90981-11059iZRE172..LE,STD201608

12V 16W

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81554-02750iZRE172201308-201608

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02750iZRE172..4FC201308-201602

sub81560-02751

main81560-02751iZRE172201603-201608

main81560-02B00iZRE172..LE,STD201608

main81560-02B10iZRE172..S201608

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81554-02750iZRE172201308-201608

81580DLAMP ASSY, REAR, RH

main81580-02510iZRE172..4FC201308-201608

main81580-02A50iZRE172..LE,STD201608

main81580-02A60iZRE172..S201608

81580FSOCKET PLUG, REAR LAMP

main90075-60037iZRE172..4FC201308-201608

81584AGASKET, REAR LAMP RH

main81584-02510iZRE172..4FC201308-201608

main81584-02A60iZRE172..S201608

81590ALAMP ASSY, REAR, LH

main81590-02510iZRE172..4FC201308-201608

main81590-02A50iZRE172..LE,STD201608

main81590-02A60iZRE172..S201608

81594AGASKET, REAR LAMP LH

main81584-02510iZRE172..4FC201308-201608

main81584-02A60iZRE172..S201608

9008017188

main90080-17188

90178A0092

main90178-A0092

18 parts on this diagram · 2 diagrams in section
