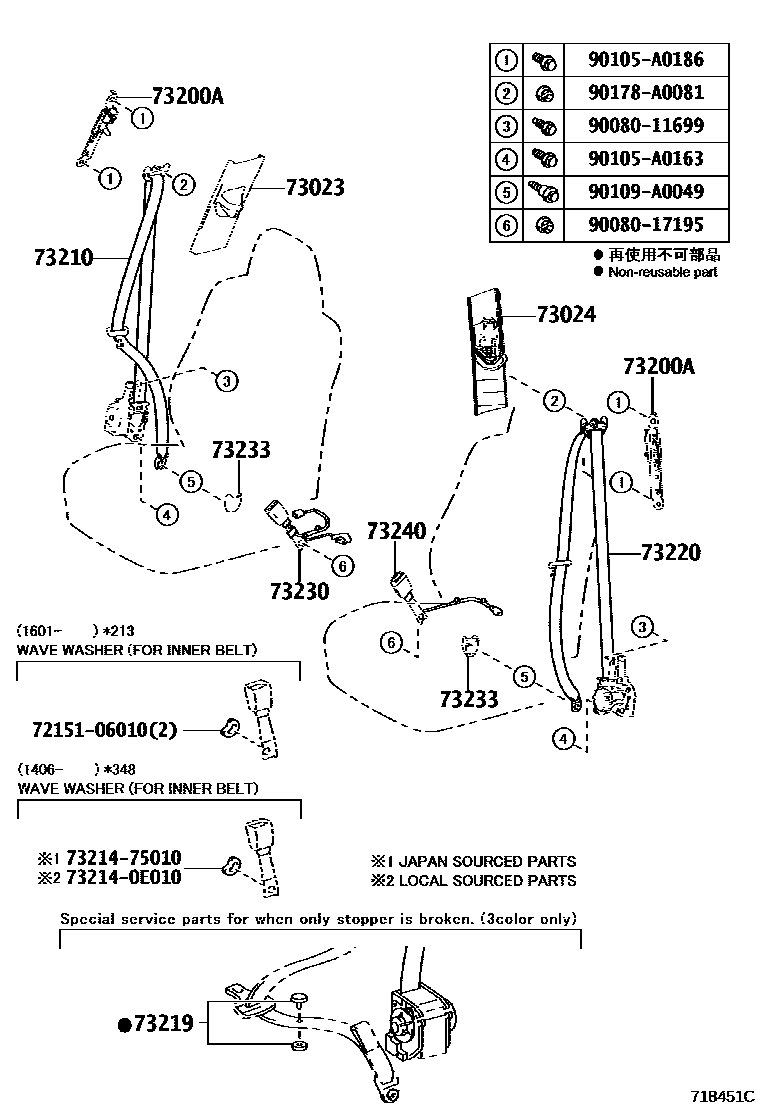

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
IVORY,TRIM0#,41
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#,4#,8#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
IVORY,TRIM0#,41
FLAXEN,TRIM0#
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM2#,4#,8#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
GRAY,TRIM1#
main73210-02480-C0iZRE172..4FC..S;ZRE172..(CVT,MTM)..(LE,S)..MXC; ZRE172..S..MXC; ZRE172..STD..MXC201308-201510
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK/IVORY,TRIM41
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK/LT.GRAY,TRIM1#; BLACK/LT.GRAY,TRIM2#,4#,8#; SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2#
BLACK/IVORY,TRIM4#
IVORY,TRIM0#
GRAY,TRIM1#
main73210-02500-C0supersedes 73210-02480-C0iZRE172..LE..GEN; ZRE172..S..GEN; ZRE172..STD..GEN201404-201510
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#; BLACK,TRIM41
BLACK/IVORY,TRIM41
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#,8#
BLACK/IVORY,TRIM4#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
GRAY,TRIM1#
main73220-02460-C0iZRE172..4FC..S;ZRE172..(CVT,MTM)..(LE,S)..MXC; ZRE172..S..MXC; ZRE172..STD..MXC201308-201510
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK/IVORY,TRIM41
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK/LT.GRAY,TRIM1#; BLACK/LT.GRAY,TRIM2#,4#,8#; SEAT COVER MATERIAL-LEATHER,BLACK/LT.GRAY,TRIM2#
BLACK/IVORY,TRIM4#
IVORY,TRIM0#
GRAY,TRIM1#
main73220-02580-C0supersedes 73220-02460-C0iZRE172..LE..GEN; ZRE172..S..GEN; ZRE172..STD..GEN201404-201510
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#; BLACK,TRIM41
BLACK/IVORY,TRIM41
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
main73220-02581-C0supersedes 73220-02461-C0iZRE172..S..GEN; ZRE172..STD..GEN; ZRE172..STD..MXC201511-201608
BLACK,TRIM1#; BLACK,TRIM2#,4#,8#; MEXICO DECONTENT,BLACK,TRIM1#
BLACK/IVORY,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
FLAXEN,TRIM0#,*213
GRAY,TRIM1#,*213
BLACK,TRIM1#,*213; BLACK,TRIM2#,*213; BLACK,TRIM2#,4#,8#,*213
IVORY,TRIM0#,*213
GRAY,TRIM1#,*213
main73230-02750-C0iZRE172..4FC..S;ZRE172..(CVT,MTM)..(LE,S)..MXC; ZRE172..LE..MXC; ZRE172..S..MXC; ZRE172..STD..MXC201308-201608
BLACK,TRIM1#,*213; BLACK,TRIM2#,4#,8#,*213; BLACK,TRIM4#,*213; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*213,(L)
IVORY,TRIM0#
FLAXEN,TRIM0#,*348
GRAY,TRIM1#; GRAY,TRIM16
main73230-02830-C0supersedes 73230-0R080-C0iZRE172..LE..GEN; ZRE172..S..GEN; ZRE172..STD..GEN; ZRE172..STD..MXC201608-201708
BLACK,TRIM1#,*348; BLACK,TRIM2#,*348; BLACK,TRIM2#,4#,8#,*348; MEXICO DECONTENT,BLACK,TRIM1#,*348
IVORY,TRIM0#,*348
GRAY,TRIM1#,*348
main73230-0R080-C0iZRE172..(LE,S)..MXC; ZRE172..LE..MXC; ZRE172..S..MXC; ZRE172..STD..MXC201308-201608
BLACK,TRIM1#,*348; BLACK,TRIM2#,4#,8#,*348; BLACK,TRIM4#,*348; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,*348,(L)
FLAXEN,TRIM0#,*348
GRAY,TRIM1#,*348
BLACK,TRIM1#,*348; BLACK,TRIM2#,*348; BLACK,TRIM2#,4#,8#,*348
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#,*348
FLAXEN,TRIM0#,*348
GRAY,TRIM1#,*348
BLACK,TRIM1#,*348; BLACK,TRIM2#,*348; BLACK,TRIM2#,4#,8#,*348
IVORY,TRIM0#,*213
FLAXEN,TRIM0#,*213
GRAY,TRIM1#,*213
BLACK,TRIM1#,*213; BLACK,TRIM2#,*213; BLACK,TRIM2#,4#,8#,*213
IVORY,TRIM0#
FLAXEN,TRIM0#,*348
GRAY,TRIM1#; GRAY,TRIM16
main73230-02A20-C0supersedes 73230-02780-C0iZRE172..LE..GEN; ZRE172..S..GEN; ZRE172..STD..GEN201404-201608
BLACK,TRIM11; BLACK,TRIM2#,4#,8#; BLACK,TRIM4#
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,4#,*348,(L)
7215106010RAIL, SEAT TRACK, LOWER RH
main72151-06010
732140E010PLATE, FRONT SEAT BELT ANCHOR
main73214-0E010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9008011699
main90080-11699
9008017195
main90080-17195
90105A0163
main90105-A0163
90105A0186
main90105-A0186
90109A0049
main90109-A0049
90178A0081
main90178-A0081
18 parts on this diagram · 2 diagrams in section
