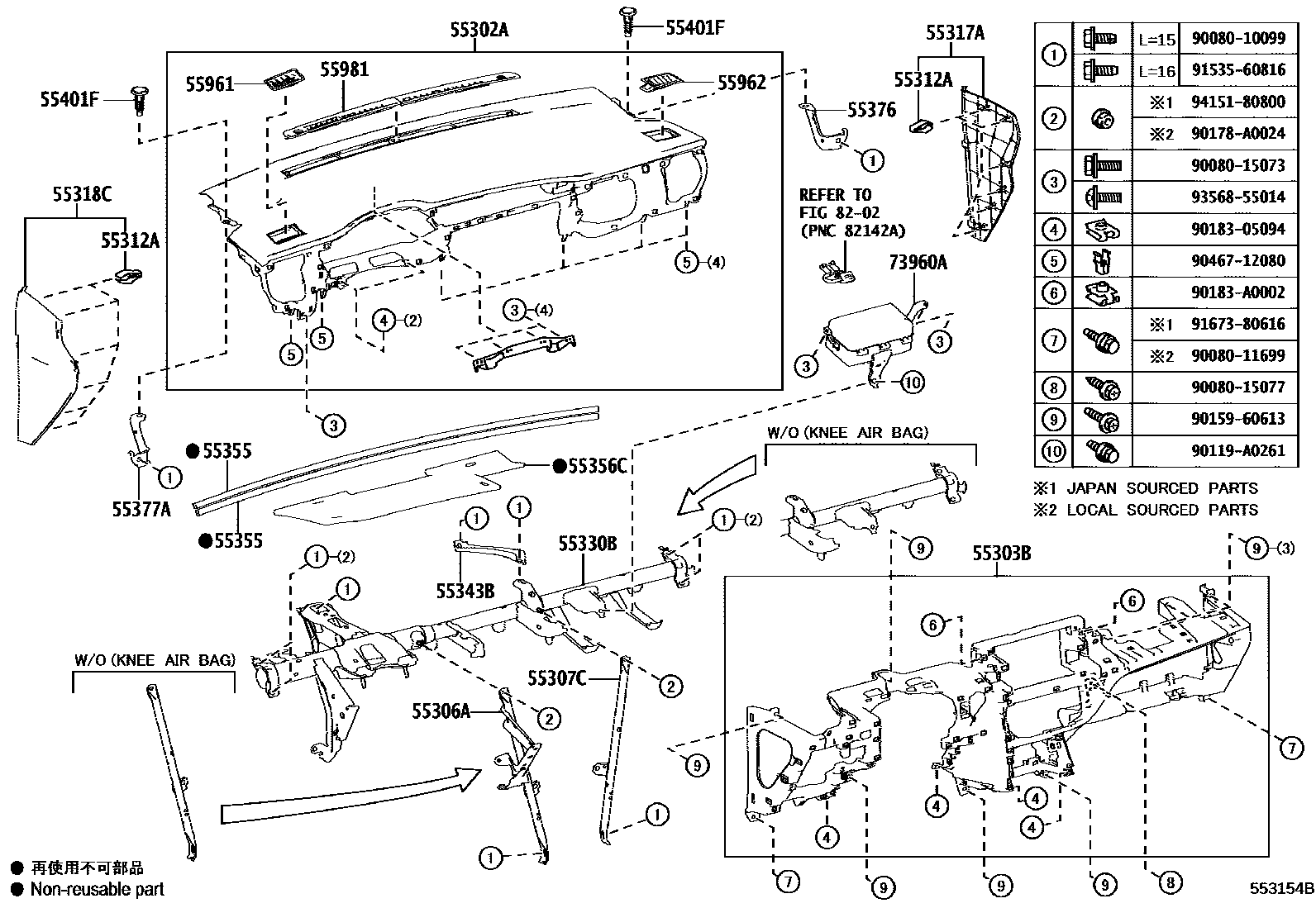

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE, W(AUTO AIR CONDI0007 1DRIVER SIDE, W(MANUAL AIR CON0008 1CENTER, W(AUTO AIR CONDITIONE0009 1CENTER, W(MANUAL AIR CONDITIO0010 1PASSENGER SIDE, W(AUTO AIR CO0011 1PASSENGER SIDE, W(MANUAL AIR

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02370-C0iZRE172..S201608

BLACK,TRIM2#,4#,8#

main55302-02370-C0iZRE172..S201608

BLACK,TRIM1#

main55302-02370-C0iZRE172..STD201608

BLACK,TRIM0#,1#,2#

main55302-02540-C0iZRE172..S201308-201608

BLACK,TRIM0#,1#,2#,4#

sub55302-02370

main55302-02540-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM2#,4#,8#

sub55302-02370

main55302-02540-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM1#

sub55302-02370

main55302-02540-C0iZRE172..(LE,STD)..GEN201404-201608

BLACK,TRIM0#,1#,4#

sub55302-02370

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02170-C0iZRE172..LE..MXC201308-201506

BLACK,TRIM0#,1#,2#,4#

sub55303-02171

main55303-02170-C0iZRE172..LE..MXC201308-201506

BLACK,TRIM2#,4#,8#

sub55303-02171

main55303-02170-C0iZRE172..LE..MXC201308-201506

BLACK,TRIM1#

sub55303-02171

main55303-02170-C0iZRE172..LE..GEN201404-201506

BLACK,TRIM0#,1#,4#

sub55303-02171

main55303-02171-C0iZRE172..S201608

BLACK,TRIM0#,1#,2#

main55303-02171-C0iZRE172..LE..GEN201507-201608

BLACK,TRIM0#,1#,2#,4#

main55303-02171-C0iZRE172..LE..GEN201507-201608

BLACK,TRIM2#,4#,8#

main55303-02171-C0iZRE172..LE..GEN201507-201608

BLACK,TRIM1#

main55303-02171-C0iZRE172..LE..MXC201507-201608

BLACK,TRIM0#,1#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02450iZRE172..4FC201308-201608

main55306-02590iZRE172..GEN201404-201408

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02240iZRE172..4FC201308-201608

55312ACLIP, INSTRUMENT PANEL

main90467-13082-A0iZRE172201308-201608

MELLOW WHITE

sub90467-13082

55317APANEL, INSTRUMENT SIDE, RH

main55317-02100-C0iZRE172..LE..MXC201308-201608

BLACK,TRIM1#

main55317-02100-C0iZRE172..STD..GEN201308-201608

BLACK,TRIM2#,4#,8#

main55317-02100-C0iZRE172..LE..GEN201404-201408

BLACK,TRIM0#,1#,4#

main55317-02100-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM0#,1#,2#,4#

main55317-02100-C0iZRE172..STD..MXC201608

BLACK,TRIM0#,1#,2#

main55317-02290-C0iZRE172..S..GEN201408-201505

BLACK,TRIM2#,4#,8#

sub55317-02290

main55317-02290-C0iZRE172..S..GEN201408-201505

MEXICO DECONTENT,BLACK,TRIM1#

sub55317-02290

main55317-02290-C0iZRE172..STD..MXC201408-201505

BLACK,TRIM1#

sub55317-02290

main55317-02290-C0iZRE172..STD..MXC201408-201505

BLACK,TRIM0#,1#,4#

sub55317-02290

main55317-02640-C0iZRE172..LE..GEN201505-201708

BLACK,TRIM2#,4#,8#

main55317-02640-C0iZRE172..LE..GEN201505-201708

MEXICO DECONTENT,BLACK,TRIM1#

main55317-02640-C0iZRE172..S..GEN201505-201708

BLACK,TRIM1#

main55317-02640-C0iZRE172..S..GEN201608-201708

BLACK,TRIM0#,1#,2#

main55317-02640-C0iZRE172..LE..GEN201505-201608

BLACK,TRIM0#,1#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-02150-C0iZRE172..S201308-201608

BLACK,TRIM0#,1#,2#,4#

main55318-02150-C0iZRE172..LE..MXC201308-201608

BLACK,TRIM2#,4#,8#

main55318-02150-C0iZRE172..LE..MXC201308-201608

BLACK,TRIM1#

main55318-02150-C0iZRE172..LE..GEN201404-201608

BLACK,TRIM0#,1#,4#

main55318-02150-C0iZRE172..LE201608

BLACK,TRIM0#,1#,2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02580iZRE172..(CVT,MTM)..MXC201308-201608

main55330-02630iZRE172..MXC201608

main55330-02770iZRE172..GEN201404-201608

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02130iZRE172..4FC201308-201608

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02270iZRE172..4FC201308-201608

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-02220iZRE172..4FC201308-201608

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-02080iZRE172201308-201608

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-02060iZRE172..4FC201308-201608

55401FCLIP(FOR SAFETY PAD)

main52161-02020iZRE172201308-201608

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02150-C0iZRE172..LE201608

BLACK,TRIM0#,1#,2#

main55961-02150-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM1#

main55961-02150-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM0#,1#,2#,4#

main55961-02150-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM2#,4#,8#

main55961-02150-C0iZRE172..(LE,STD)..GEN201404-201608

BLACK,TRIM0#,1#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02110-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM1#

main55962-02110-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM0#,1#,2#,4#

main55962-02110-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM2#,4#,8#

main55962-02110-C0iZRE172..(LE,STD)..GEN201404-201608

BLACK,TRIM0#,1#,4#

main55962-02110-C0iZRE172..LE201608

BLACK,TRIM0#,1#,2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-02300-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM0#,1#,2#,4#

main55981-02300-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM1#

main55981-02300-C0iZRE172..STD..MXC201308-201608

BLACK,TRIM2#,4#,8#

main55981-02300-C0iZRE172..(LE,STD)..GEN201404-201608

BLACK,TRIM0#,1#,4#

main55981-02300-C0iZRE172..LE201608

BLACK,TRIM0#,1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02170iZRE172..MXC201308-201803

main73960-02171iZRE172201803-201903

main73960-02230iZRE172..GEN201404-201412

sub73960-02231

main73960-02231iZRE172..GEN201501-201708

MEXICO DECONTENT

8202

9008010099

main90080-10099

9008011699

main90080-11699

9008015073

main90080-15073

9008015077

main90080-15077

90119A0261

main90119-A0261

9015960613

main90159-60613

90178A0024

main90178-A0024

9018305094

main90183-05094

90183A0002

main90183-A0002

9046712080

main90467-12080

9153560816

main91535-60816

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

33 parts on this diagram · 11 diagrams in section
