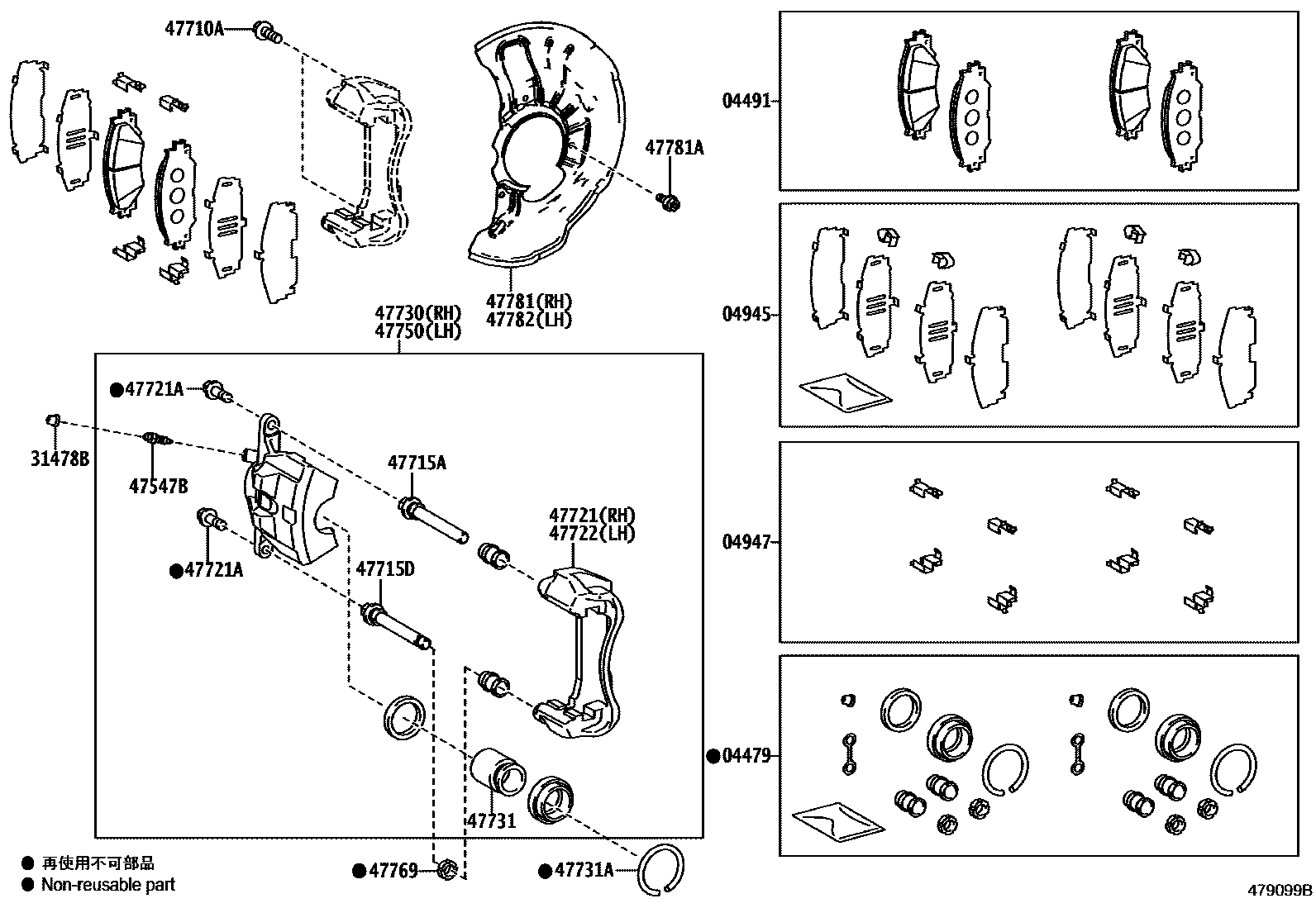

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02230iZRE172..4FC201308-201608

04491PAD KIT, DISC BRAKE, FRONT

main04465-02410iZRE172..4FC201308-201608

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02150iZRE172..4FC201308-201608

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZRE172..4FC201308-201608

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRE172..4FC201308-201608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iZRE172..4FC201308-201608

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067iZRE172201308-201608

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-02400iZRE172..4FC201308-201608

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-02400iZRE172..4FC201308-201608

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02400iZRE172..4FC201308-201608

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA604iZRE172..4FC201308-201608

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02400iZRE172..4FC201308-201608

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02400iZRE172..4FC201308-201608

47731PISTON, FRONT DISC BRAKE

main47731-02401iZRE172..4FC201308-201608

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90016-AU506iZRE172..4FC201308-201608

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02400iZRE172..4FC201308-201608

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZRE172..4FC201308-201608

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02210iZRE172201308-201608

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11429iZRE172201308-201608

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02210iZRE172201308-201608

20 parts on this diagram · 1 diagram in section
