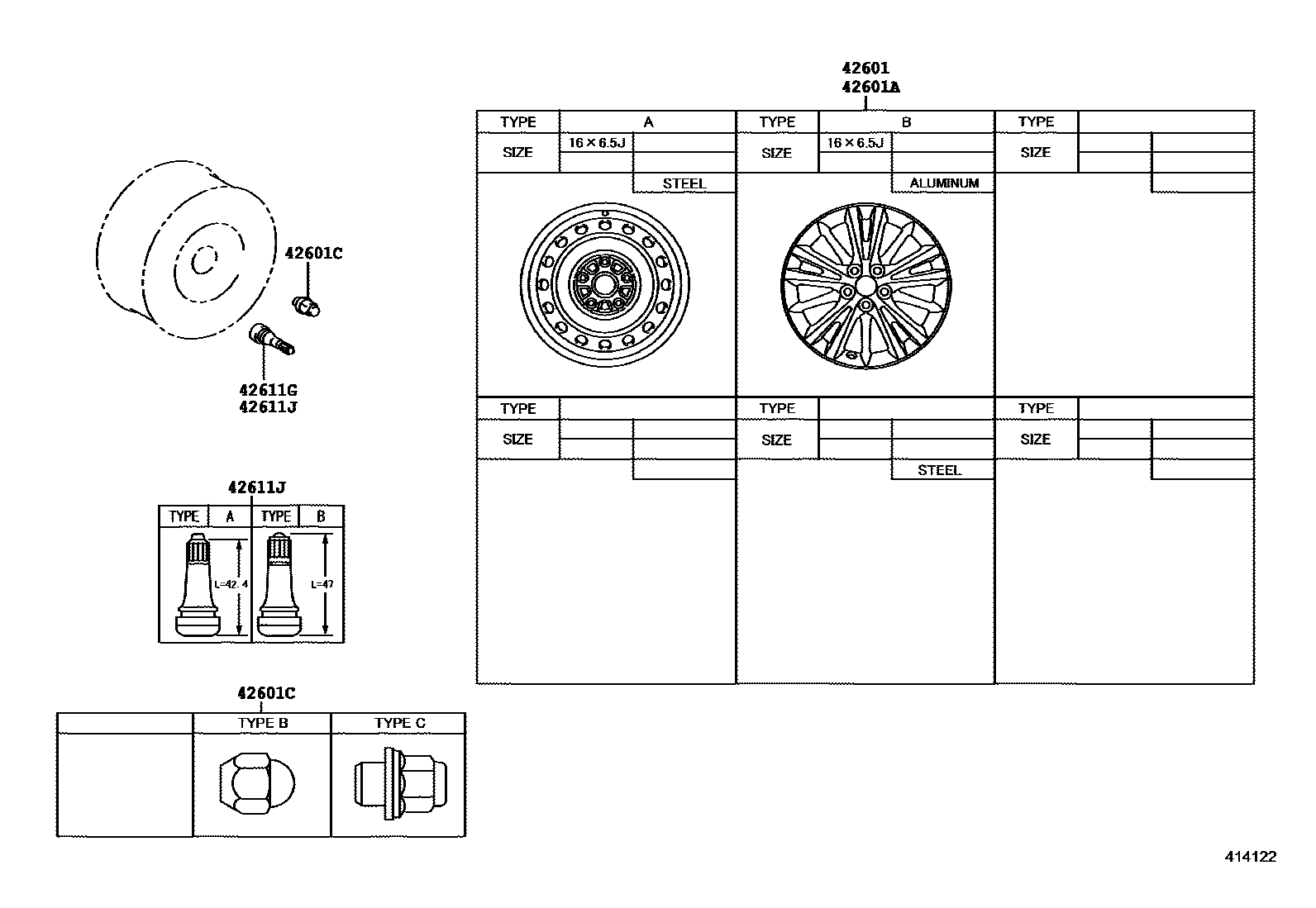

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-02A00×4i201608

16X6.5J,#,TYPE A:REFER ILLUST.

main42611-02F70×4i201404-201508

16X6.5J,#,TYPE B:REFER ILLUST.

main42611-02M50×4i201608

16X6.5J,#,PLUS1 PACKAGE,TYPE B:REFER ILLUST.; 16X6.5J,#,PLUS2 PACKAGE,TYPE B:REFER ILLUST.; 16X6.5J,#,TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.; 16X6.5J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02480i201308-201608

16X4T,TYPE E:REFER ILLUST.

main42611-02A00i201404-201608

16X6.5J,#,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90084-94001×20i201404-201608

TYPE C:REFER ILLUST.

main90942-01021×20i201608

TYPE B:REFER ILLUST.

main90942-01082×20i201308-201608

TYPE B:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4i201404-201608

TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

main90080-45006×4i201404-201608

MEXICO DECONTENT; TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i201404-201608

TIRE & DISC WHEEL-205/55R16 ALUMI OS39 MEXICO,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.

main90080-45006i201608

TYPE B:REFER ILLUST.

5 parts on this diagram · 4 diagrams in section
