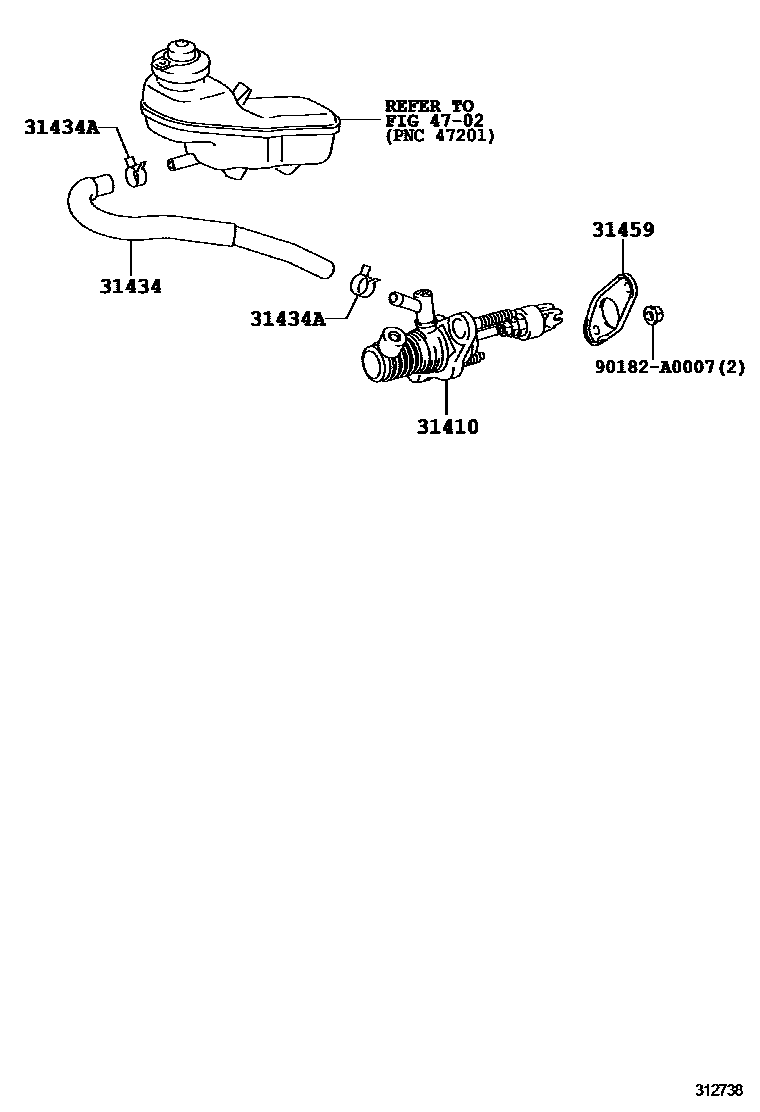

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-12030iZRE172..6F201308-201608

31434TUBE, CLUTCH RESERVOIR

main31434-02060iZRE172..6F201308-201608

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-A0013×2iZRE172..6F201308-201608

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iZRE172..6F201308-201608

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182A0007

main90182-A0007

6 parts on this diagram · 1 diagram in section
