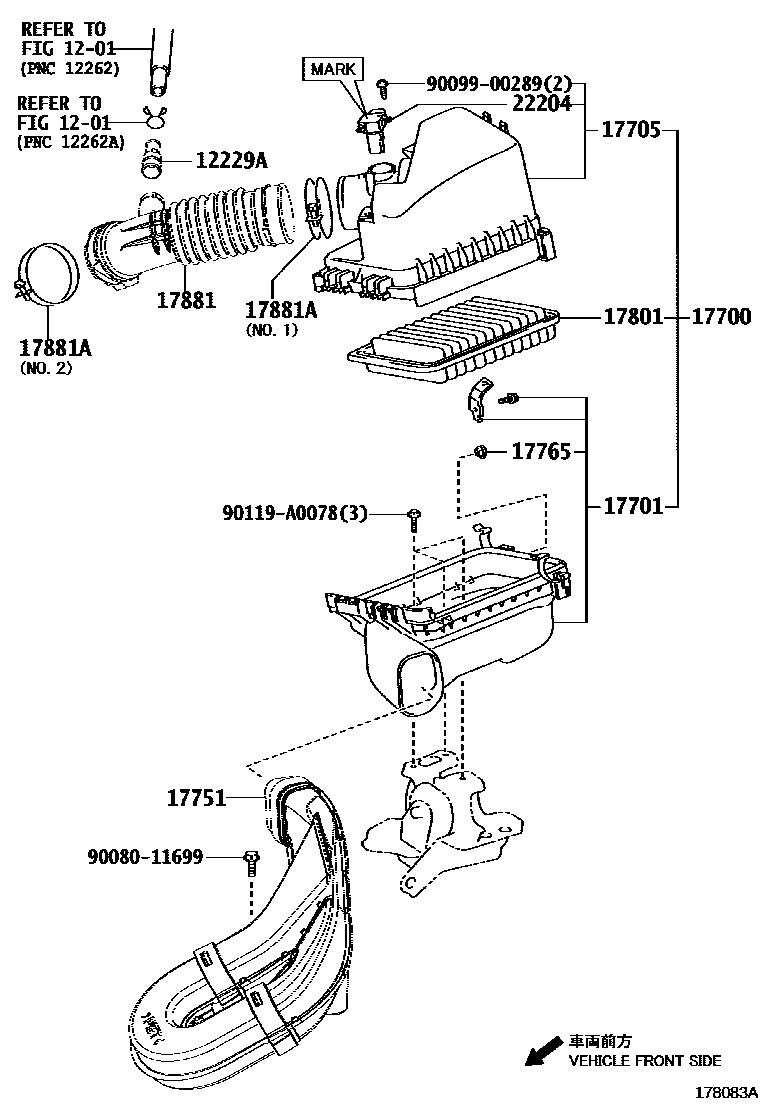

AIR CLEANER

1201

12229APIPE, VENTILATION

main12229-0T030i2ZRFE..ZRE172..CVT,MTM201308-201608

17700CLEANER ASSY, AIR

main17700-0T043i2ZRFAE..ZRE172201308-201608

main17700-0T190i2ZRFE..ZRE172..GEN201404-201608

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T040i2ZRFE..ZRE172..4FC201308-201608

17705CAP SUB-ASSY, AIR CLEANER

main17705-0T043i2ZRFE..ZRE172..4FC201308-201608

main17705-0T190i2ZRFE..ZRE172..GEN201404-201608

17751INLET, AIR CLEANER, NO.1

main17751-0T130i2ZRFE..ZRE172..4FC201308-201608

main17751-0T210i2ZR#..ZRE172201608

17765STAY, AIR CLEANER, NO.1

main17706-22010i2ZRFE..ZRE172..4FC201308-201608

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T030i2ZRFE..ZRE172..4FC201308-201608

17881HOSE, AIR CLEANER, NO.1

main17881-0T080i2ZRFAE..ZRE172201308-201608

main17881-0T350i2ZRFE..ZRE172..GEN201404-201608

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZRFE..ZRE172..4FC201308-201608

NO.1

main96111-10780i2ZR#..ZRE172201308-201608

NO.2

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2ZRFE..ZRE172..CVT,MTM201308-201608

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ZRFE..ZRE172..CVT,MTM201308-201608

MARK 22204-0V020

main22204-28010i2ZRFE..ZRE172..4FC201308-201608

MARK 22204-28010

9008011699

main90080-11699

9009900289

main90099-00289

90119A0078

main90119-A0078

14 parts on this diagram · 1 diagram in section
