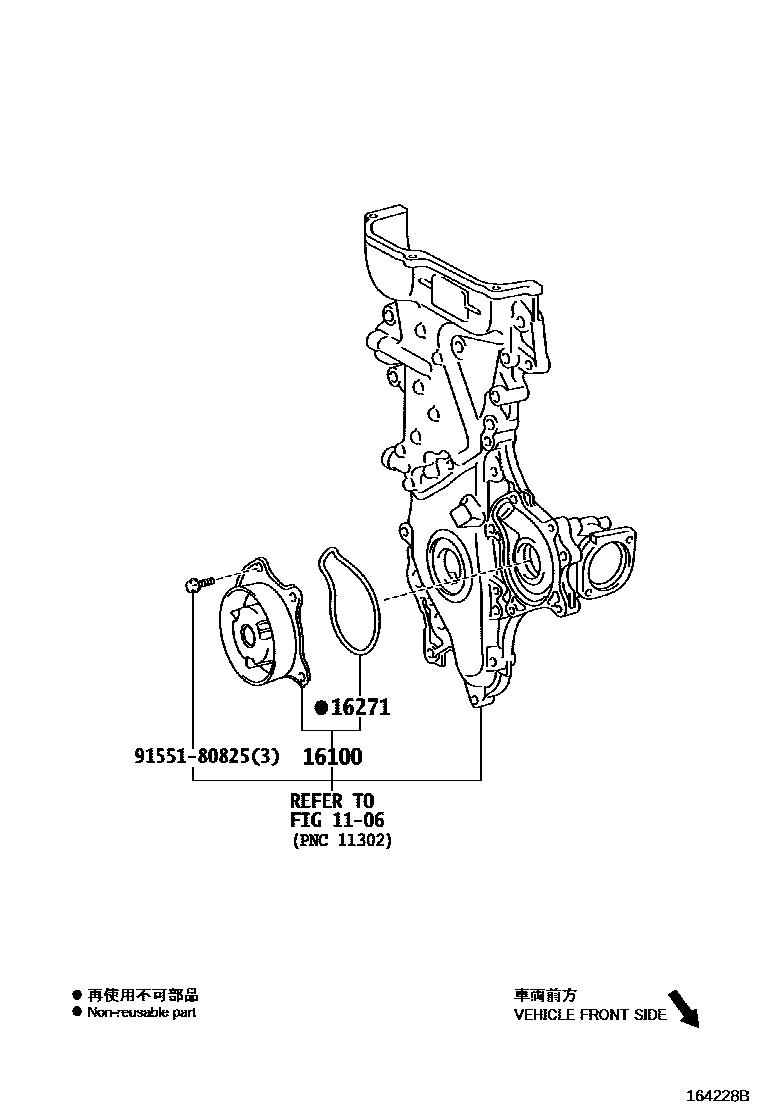

WATER PUMP

0001 1 0002 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-09560i2ZRFE..ZRE172201608

(L)

main16100-09620i2ZRFAE..ZRE172201608

(L)

main16100-39466i2ZRFE..ZRE172201608

(J)

main16100-39565i2ZRFAE..ZRE172201608

(J)

16271GASKET, WATER PUMP

main16271-37010i2ZRFE..ZRE172..4FC201308-201408

main16271-37030i2ZRFAE..ZRE172201608

9155180825

main91551-80825

4 parts on this diagram · 2 diagrams in section
