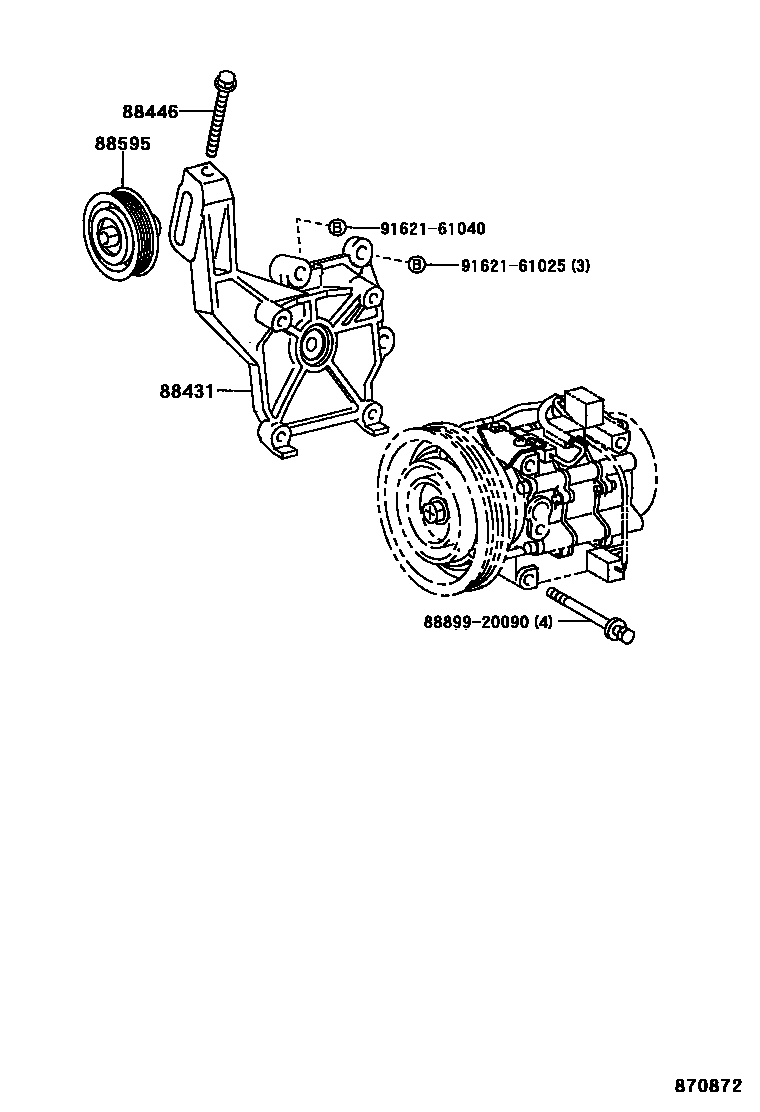

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12500iAE102199402-199409

88446BOLT, IDLE PULLEY

main88446-12030iAE102199402-199605

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iAE102199402-199605

8889920090COVER, EVAPORATOR

main88899-20090

9162161025

main91621-61025

9162161040

main91621-61040

6 parts on this diagram · 2 diagrams in section
