WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1CLAMP 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1CABLE BOND 0008 1DIODE & REPAIR

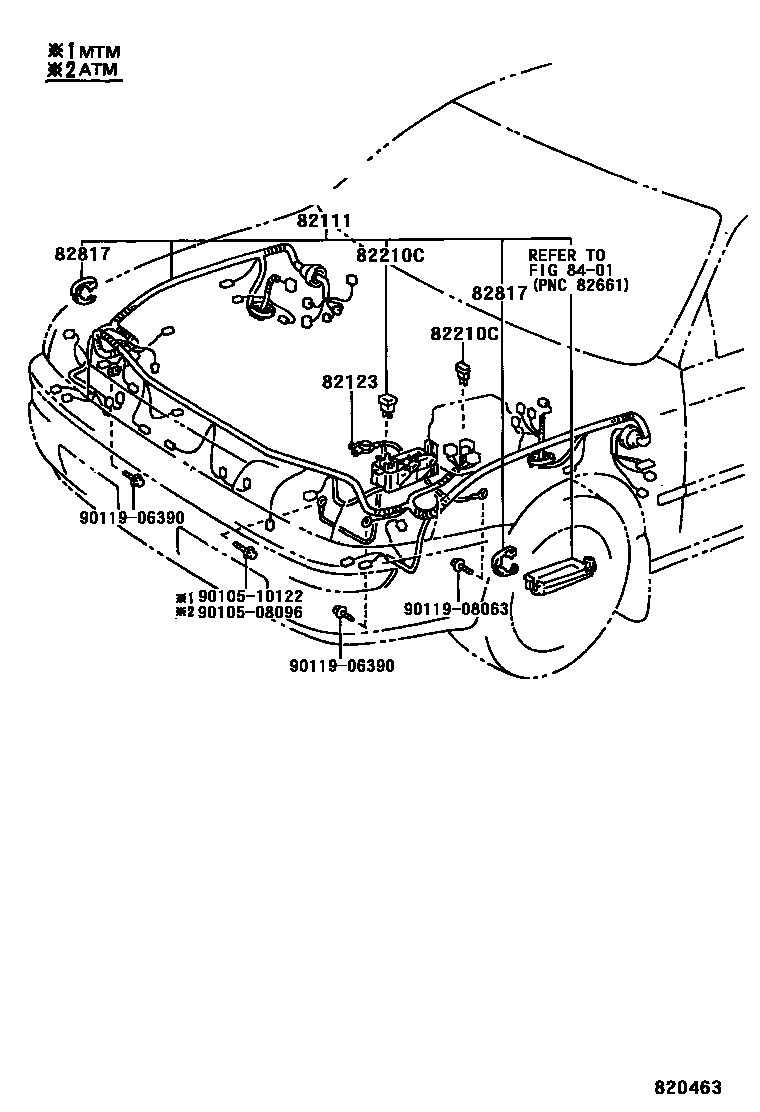

82111WIRE, ENGINE ROOM MAIN

main82111-1H130iAE102199402-199411

main82111-1H131iAE102199411-199605

main82111-1H140iAE102199402-199411

W(ABS)

main82111-1H141iAE102199411-199505

W(ABS)

main82111-1H450iAE102199505-199605

W(ABS)

82123WIRE, ENGINE, NO.3

main82123-12220iAE102199505-199605

main82123-12230iAE102199402-199505

82210CFUSIBLE LINK

main90982-08188×2iAE102199402-199605

30A,TERM.:FEMALE,PNK

main90982-08228iAE102199402-199605

50A,TERM.:MALE,RED

main90982-08246iAE102199402-199605

100A,TERM.:MALE,BLUE

main90982-08257iAE102199402-199605

40A,TERM.:MALE,GRN

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A090×2iAE102199402-199411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508096

main90105-08096

9010510122

main90105-10122

9011906390

main90119-06390

9011908063

main90119-08063

9 parts on this diagram · 8 diagrams in section
