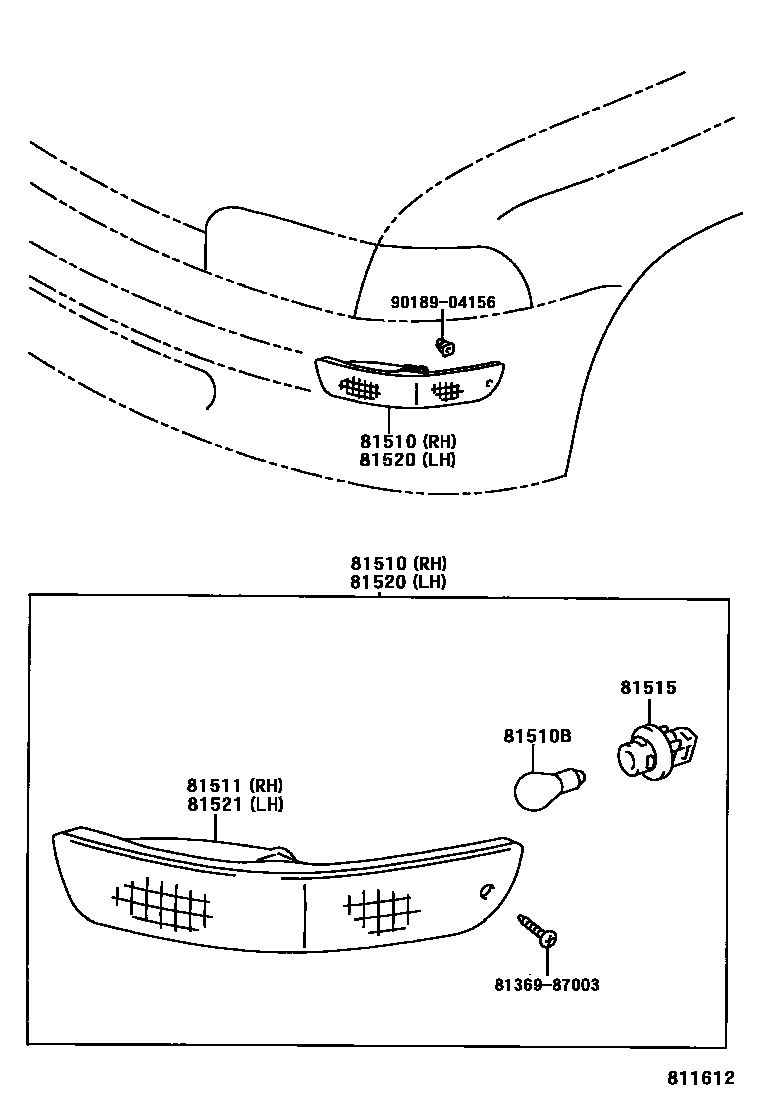

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-12680iAE102199402-199605

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iAE102199402-199605

12V 21W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-12680iAE102199402-199605

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main90075-99020×2iAE102199402-199605

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-12640iAE102199402-199605

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-12640iAE102199402-199605

8136987003COVER, SPOT LAMP

main81369-87003

9018904156

main90189-04156

8 parts on this diagram · 1 diagram in section
