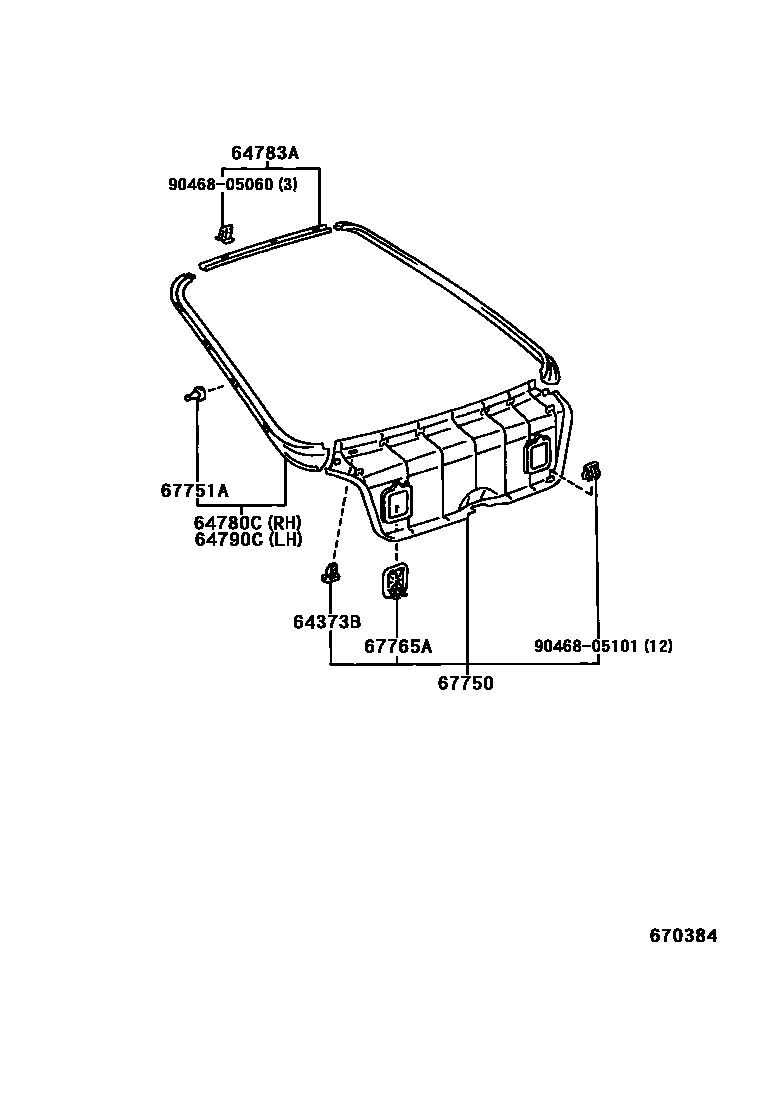

BACK DOOR PANEL & GLASS

0001 1 0002 1

64373BSTOPPER, PACKAGE TRAY TRIM

main64373-12070iAE102199402-199605

64780CPANEL ASSY, BACK DOOR TRIM, RH

main64780-12040-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-12020-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

sub64783-12020

64790CPANEL ASSY, BACK DOOR TRIM, LH

main64790-12020-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-12040-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-10084iAE102199402-199605

67765ACOVER, BACK DOOR SERVICE HOLE, NO.1

main67765-12090-B0iAE102199402-199605

SHADOW GRAY,TRIM1#

9046805060

main90468-05060

9046805101

main90468-05101

9 parts on this diagram · 2 diagrams in section
