DECK BOARD & DECK TRIM COVER
55574CSHAFT, GLOVE COMPARTMENT DOOR HINGE
58703BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58704BCOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
62607CPOCKET SUB-ASSY, QUARTER TRIM
SHADOW GRAY,TRIM1#
63709BBAND SUB-ASSY, ROOM RACK
BLACK,TRIM1#
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
SHADOW GRAY,TRIM1#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
SHADOW GRAY,TRIM1#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64310BRACKET, PACKAGE TRAY TRIM, RH
SHADOW GRAY,TRIM1#
64320BRACKET, PACKAGE TRAY TRIM, LH
SHADOW GRAY,TRIM1#
64321CCLIP(FOR PACKAGE TRIM SIDE)
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#
64367SUSPENDER, PACKAGE TRAY TRIM
64381AHANGER, PACKAGE TRAY TRIM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
SHADOW GRAY,TRIM1#
64707CKNOB, JACK COVER
64707GSTOPPER, JACK COVER
64716DCOVER, DECK TRIM, REAR
SHADOW GRAY,TRIM1#
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64730BPANEL ASSY, DECK TRIM SIDE, RH
SHADOW GRAY,TRIM1#
64730FCLAMP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
SHADOW GRAY,TRIM1#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
SHADOW GRAY,TRIM1#
64751BRACKET, DECK TRIM SIDE SPEAKER SET, RH
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
9018304046
main90183-04046
9046709158
main90467-09158
9046804147
main90468-04147
9046804157
main90468-04157
9046807014
main90468-07014
9095001513
main90950-01513
9356055014
main93560-55014
9356614512
main93566-14512

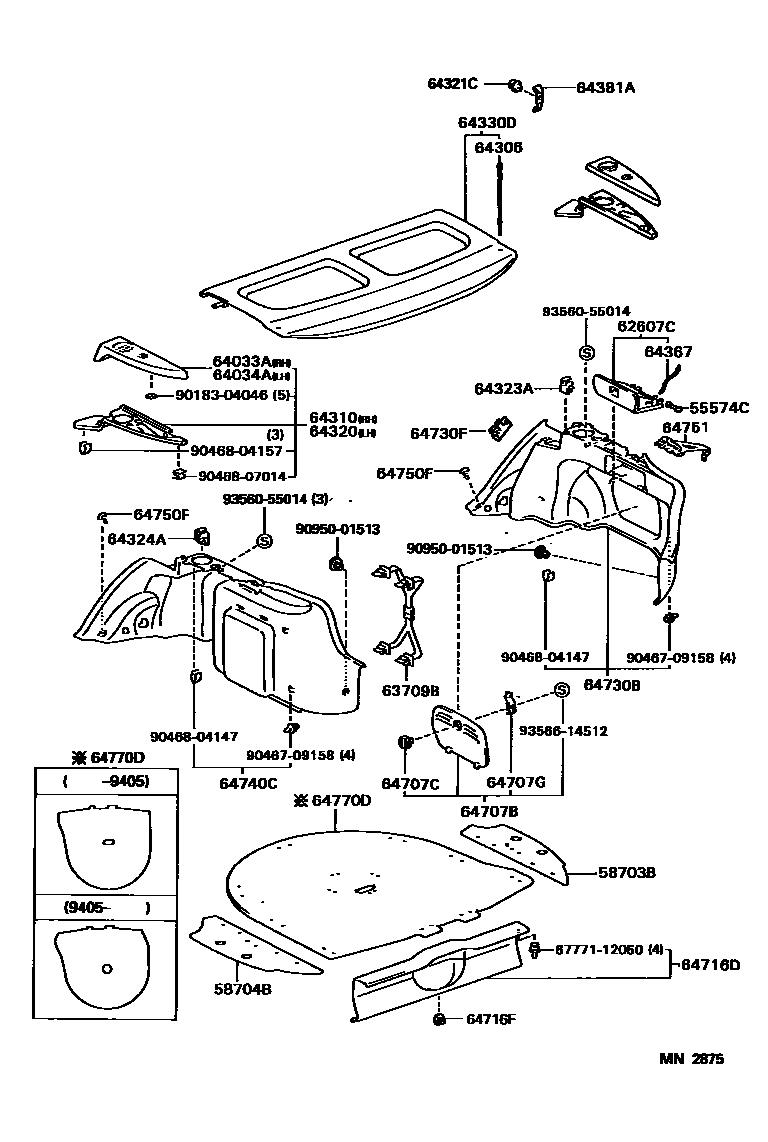

36 parts on this diagram · 1 diagram in section
