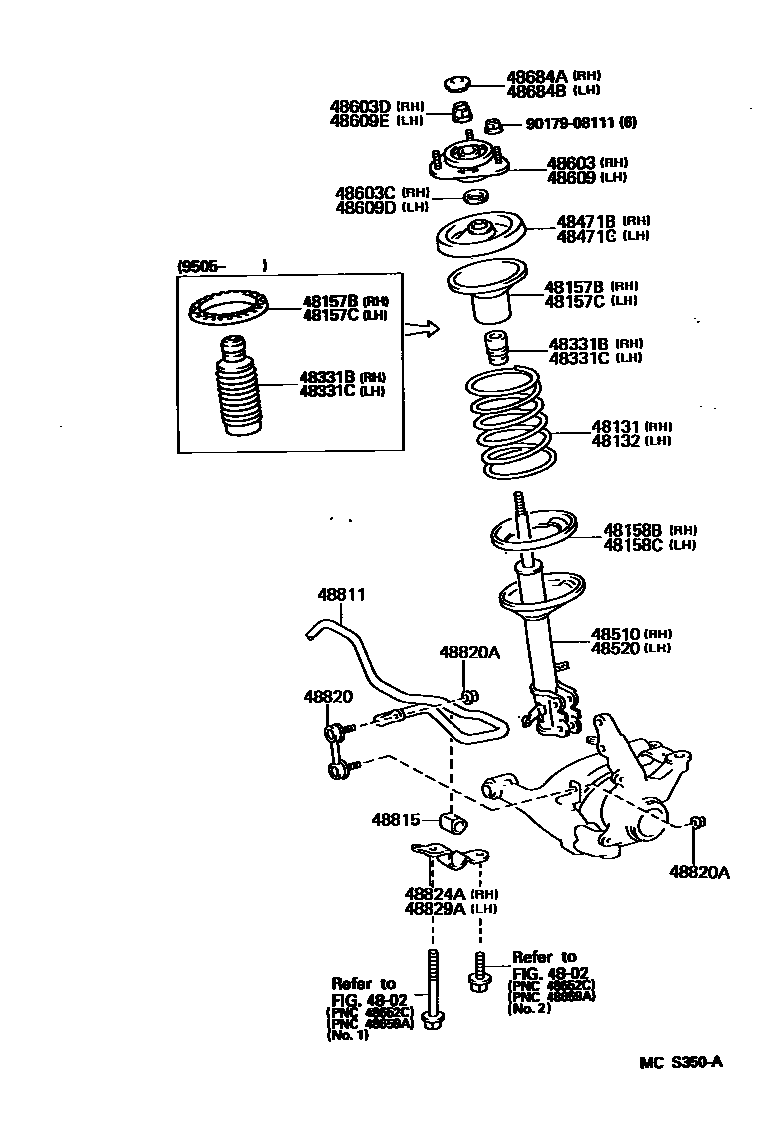

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-1K890iAE102..4FC199505-199605

main48131-1L200iAE102..5F199402-199605

48132SPRING, FRONT COIL, LH

main48131-1K870iAE102..5F199402-199605

main48131-1L200iAE102..4FC199402-199605

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE102199402-199505

main48157-12070iAE102199505-199605

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE102199402-199505

main48157-12070iAE102199505-199605

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE102199402-199605

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE102199402-199605

48331BBUMPER, FRONT SPRING, RH

main48331-12130iAE102199402-199505

main48331-12150iAE102199505-199605

48331CBUMPER, FRONT SPRING, LH

main48331-12130iAE102199402-199505

main48331-12150iAE102199505-199605

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE102199505-199605

(L)

main48044-12090iAE102199402-199605

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE102199505-199605

(L)

main48044-12090iAE102199402-199605

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12850iAE102199505-199605

sub48510-87687

sub48331-12150

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12720iAE102199505-199605

sub48520-49225

sub48331-12150

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12290iAE102199402-199505

sub48609-12340

main48609-12340iAE102199505-199605

sub48609-12341

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE102199402-199605

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE102199402-199605

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12290iAE102199402-199505

sub48609-12340

main48609-12340iAE102199505-199605

sub48609-12341

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE102199402-199605

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE102199402-199605

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE102199602-199605

main48684-32010iAE102199402-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE102199602-199605

main48684-32010iAE102199402-199602

48811BAR, STABILIZER, FRONT

main48811-12770iAE102199402-199605

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12230iAE102199402-199605

48820LINK ASSY, FRONT STABILIZER

main48820-20021iAE102199402-199505

main48820-33010iAE102199505-199605

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE102199402-199605

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE102199402-199605

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE102199402-199605

9017908111

main90179-08111

28 parts on this diagram · 1 diagram in section
