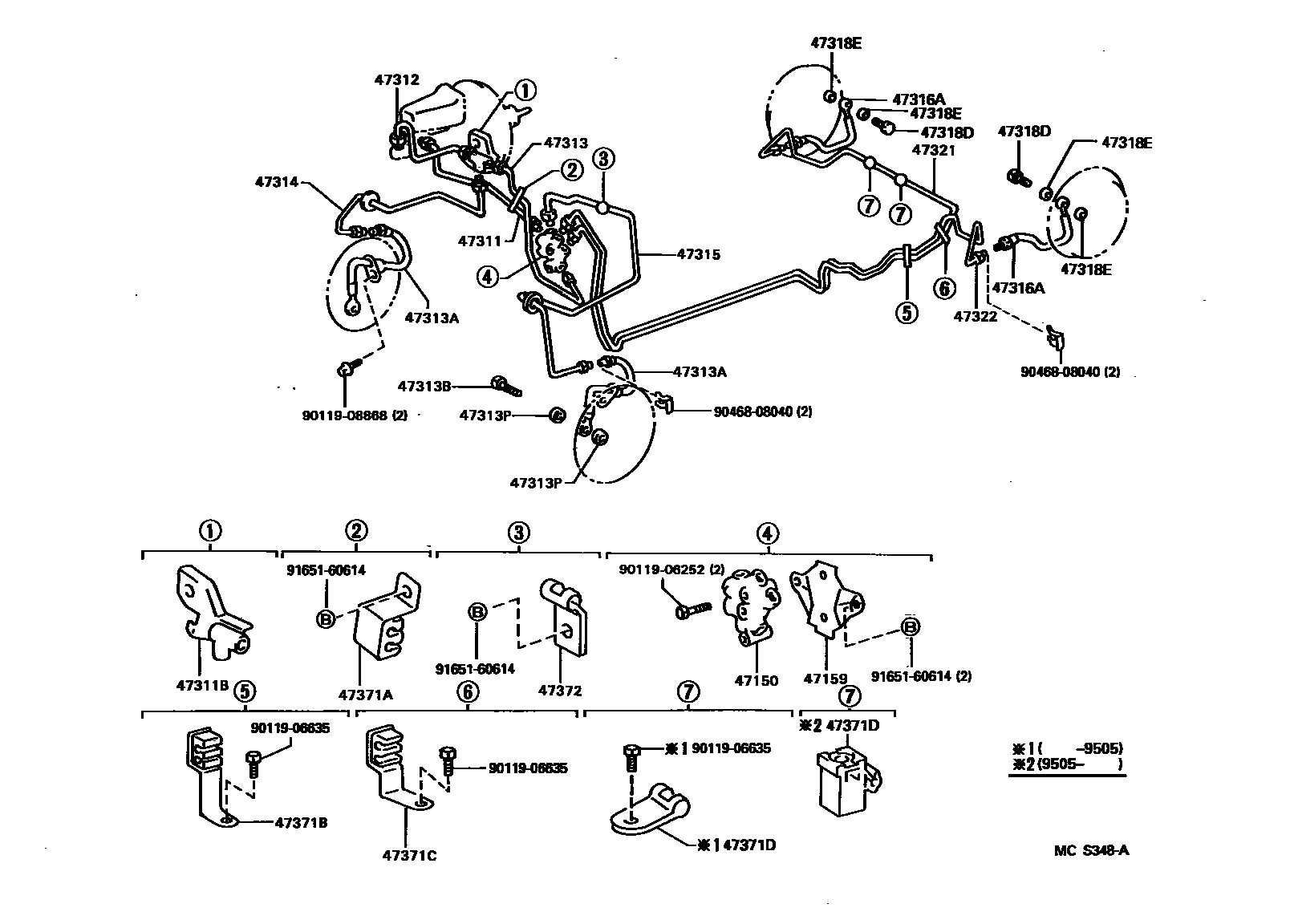

BRAKE TUBE & CLAMP

0001 1 0002 1W(ABS) 0003 1W(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12180iAE102199402-199605

W(ABS)

main47150-33010iAE102199402-199605

47159BRACKET, PROPORTIONING VALVE

main47159-12070iAE102199402-199605

47311TUBE, FRONT BRAKE, NO.1

main47311-12500iAE102199402-199505

W(*66)

main47311-12540iAE102199402-199505

main47311-12560iAE102199505-199605

main47311-12570iAE102199505-199605

W(*66)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-12010iAE102199402-199605

main90412-10116iAE102199402-199605

W(ABS)

47312TUBE, FRONT BRAKE, NO.2

main47312-12330iAE102199402-199605

47313TUBE, FRONT BRAKE, NO.3

main47313-12290iAE102199402-199505

W(*66)

main47313-12340iAE102199402-199505

main47313-12370iAE102199505-199605

main47313-12380iAE102199505-199605

W(*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02659iAE102199402-199405

RH

main90947-02660iAE102199402-199405

LH

main90947-02798iAE102199405-199605

RH

main90947-02799iAE102199405-199605

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE102199402-199605

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iAE102199402-199605

47314TUBE, FRONT BRAKE, NO.4

main47314-12290iAE102199505-199605

main47314-12400iAE102199402-199505

47315TUBE, FRONT BRAKE, NO.5

main47315-12450iAE102199402-199605

W(*66)

main47315-12460iAE102199402-199605

47316TUBE, FRONT BRAKE, NO.6

main47316-12230iAE102199402-199505

main47316-12250iAE102199505-199605

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02740×2iAE102199402-199605

47318TUBE, FRONT BRAKE, NO.8

main47318-12220iAE102199402-199505

main47318-12270iAE102199505-199605

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAE102199402-199605

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iAE102199402-199605

47321TUBE, REAR BRAKE, NO.1

main47321-12100iAE102199402-199505

main47321-12130iAE102199505-199605

47322TUBE, REAR BRAKE, NO.2

main47322-12260iAE102199402-199505

main47322-12280iAE102199505-199605

47371ACLAMP, BRAKE TUBE, NO.1

main47371-12090iAE102199402-199605

W(*66)

main47371-12100iAE102199402-199605

47371BCLAMP, BRAKE TUBE, NO.6

main47375-12010iAE102199402-199505

main47375-12040iAE102199505-199605

47371CCLAMP, BRAKE TUBE, NO.7

main47375-12020iAE102199402-199505

main47375-12060iAE102199505-199605

47371DCLAMP, BRAKE TUBE, NO.8

main47371-12150×2iAE102199505-199605

main90461-08687×2iAE102199402-199505

47372CLAMP, BRAKE TUBE, NO.2

main47372-12050iAE102199402-199505

W(*66)

main47372-12060iAE102199505-199605

W(*66)

main90461-06119iAE102199402-199605

9011906252

main90119-06252

9011906635

main90119-06635

9011908868

main90119-08868

9046808040

main90468-08040

9165160614

main91651-60614
