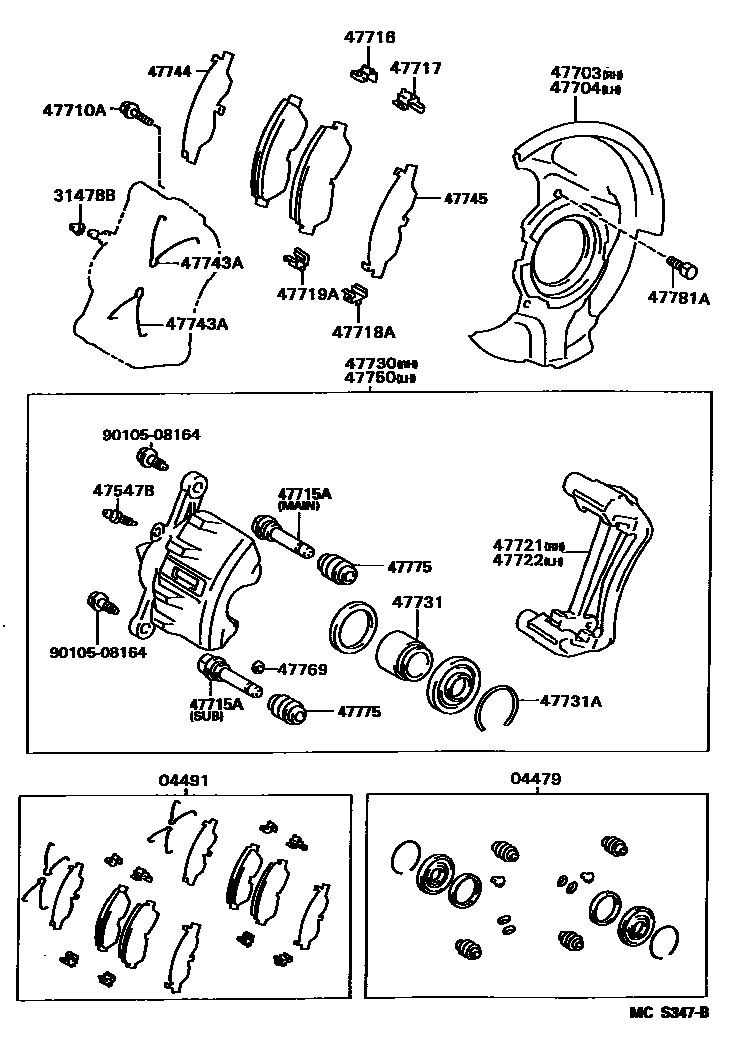

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-12180iAE102199402-199605

04491PAD KIT, DISC BRAKE, FRONT

main04491-12650iAE102199402-199406

sub04491-12651

main04491-12651iAE102199406-199505

sub04465-33040

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAE102199402-199608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAE102199402-199605

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47781-12170iAE102199402-199605

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47782-12170iAE102199402-199605

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAE102199402-199605

*12-1.25PX25.8-19.5

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-50010iAE102199402-199605

SUB

main47715-50030iAE102199402-199605

MAIN

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-33010iAE102199402-199605

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-33020iAE102199402-199605

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-33010iAE102199402-199605

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-33020iAE102199402-199605

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12210iAE102199402-199605

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12030iAE102199402-199605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12450iAE102199402-199605

47731PISTON, FRONT DISC BRAKE

main47731-12180iAE102199402-199605

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAE102199402-199605

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-12090iAE102199402-199605

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20120iAE102199402-199605

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-20120iAE102199402-199605

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12450iAE102199402-199605

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAE102199402-199605

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-20080iAE102199402-199605

sub47775-30070

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAE102199402-199605

9010508164

main90105-08164

25 parts on this diagram · 2 diagrams in section
