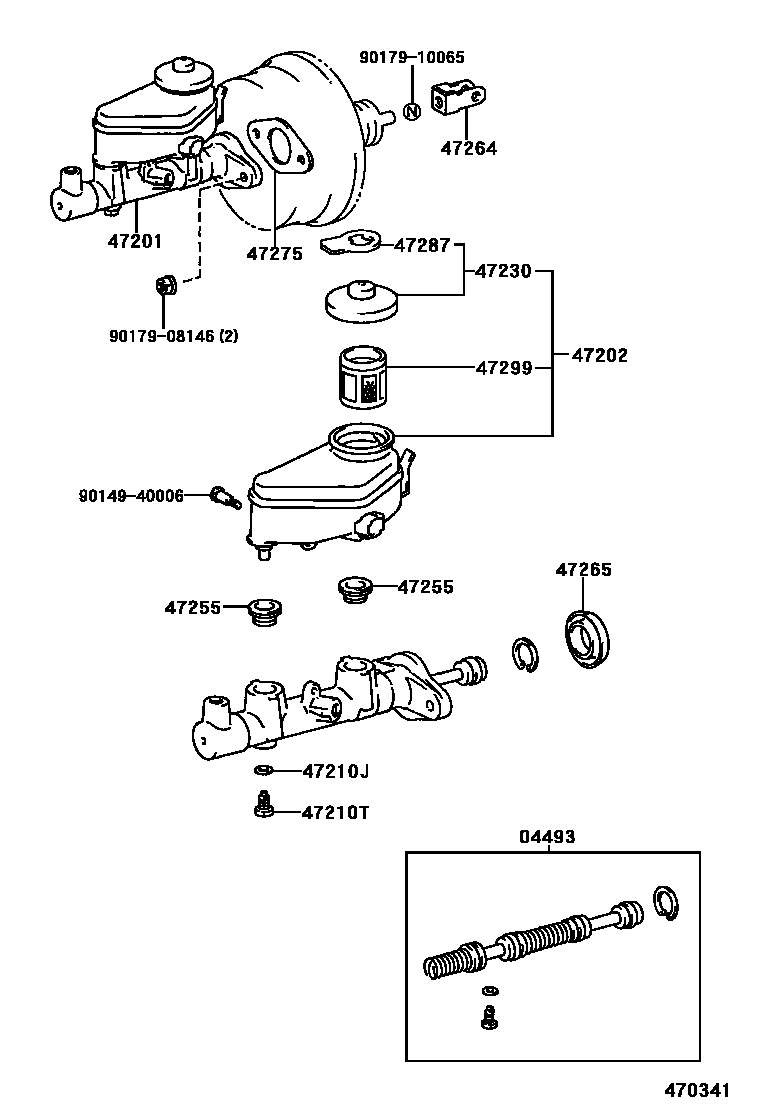

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-10130iAE102199402-199505

W(ABS)

main04493-12180iAE102199402-199505

main04493-12200iAE102199505-199605

W(ABS)

main04493-16080iAE102199505-199605

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-12870iAE102199402-199505

main47201-12880iAE102199402-199505

W(ABS)

main47201-1A090iAE102199505-199605

main47201-1A100iAE102199505-199605

W(ABS)

sub47201-1A140

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-12390iAE102199402-199505

sub47220-32060

main47220-17050iAE102199505-199605

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAE102199402-199605

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iAE102199402-199605

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-12040iAE102199402-199505

main47230-20140iAE102199505-199605

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iAE102199402-199605

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-16020iAE102199402-199407

main47264-33010iAE102199407-199605

47265BOOT, MASTER CYLINDER

main47265-20050iAE102199402-199505

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iAE102199402-199605

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iAE102199505-199605

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iAE102199402-199605

9014940006

main90149-40006

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 1 diagram in section
