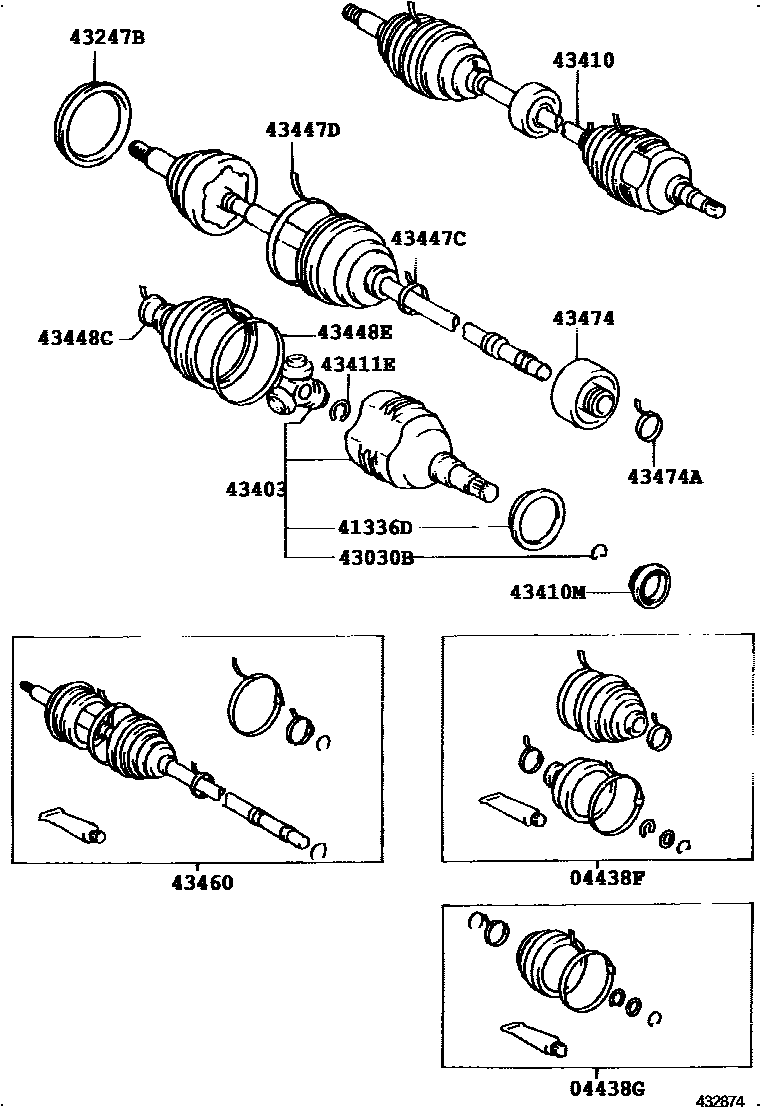

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-20110iAE102199402-199605

sub04438-20131

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12162iAE102199402-199511

sub04438-12410

main04438-12410iAE102199511-199605

sub04438-12840

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iAE102199402-199605

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iAE102199402-199605

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iAE102199402-199605

W(ABS)

main43247-33010iAE102199402-199605

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-12040iAE102199402-199605

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20420iAE102199505-199605

sub43410-20421

sub90178-22001

main43410-20460iAE102199402-199505

sub43410-20461

sub90178-22001

main43410-20460iAE102199505-199605

W(*66)

sub43410-20461

sub90178-22001

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34012iAE102..4FC199402-199605

main90311-34016iAE102..5F199402-199605

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iAE102199402-199605

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iAE102199402-199605

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16040iAE102199402-199605

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iAE102199402-199605

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iAE102199402-199605

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29117iAE102199505-199605

sub43460-29118

sub90178-22001

main43460-29198iAE102199505-199605

W(*66)

sub43460-29199

sub90178-22001

main43460-29198iAE102199402-199505

sub43460-29199

sub90178-22001

43474DAMPER, DRIVE SHAFT

main43474-20050iAE102199402-199605

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16030iAE102199402-199605

16 parts on this diagram · 2 diagrams in section
