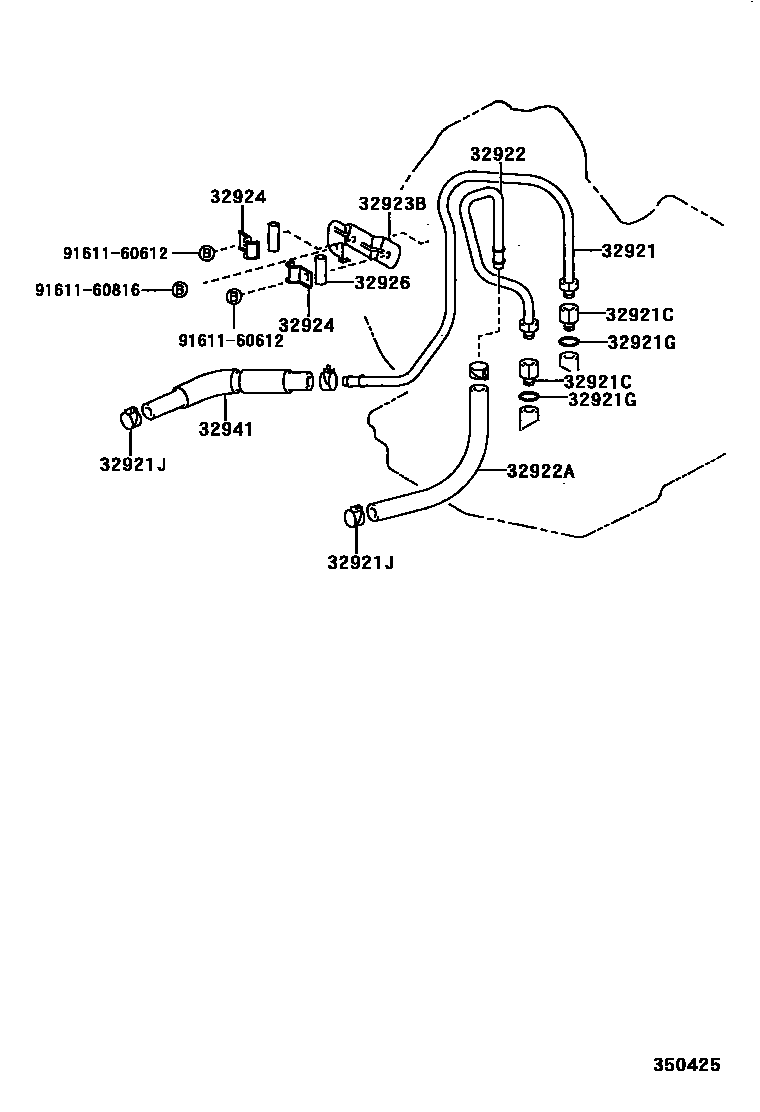

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-12210iAE102..4FC199402-199605

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007×2iAE102..4FC199402-199605

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAE102..4FC199402-199605

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×4iAE102..4FC199402-199605

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12320iAE102..4FC199402-199605

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iAE102..4FC199402-199605

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12200iAE102..4FC199402-199605

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082×2iAE102..4FC199402-199605

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iAE102..4FC199402-199605

L=30,ID=8

main32926-22010iAE102..4FC199402-199605

L=35,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main32941-12171iAE102..4FC199402-199605

9161160612

main91611-60612

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
