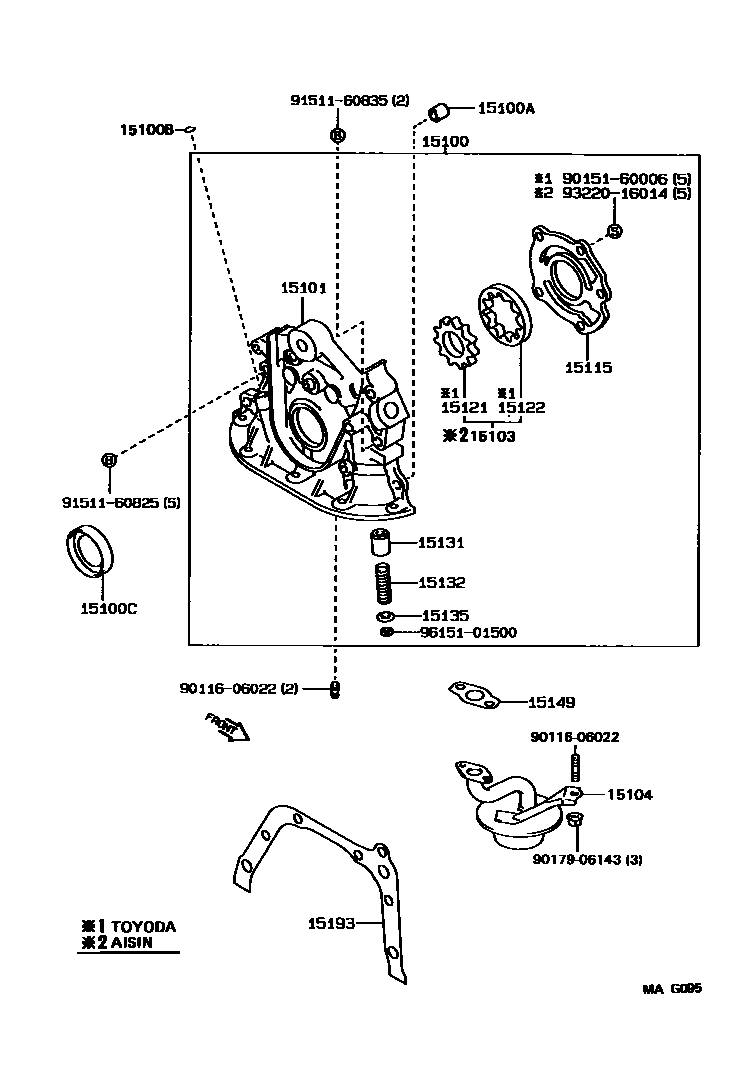

ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15101BODY SUB-ASSY, OIL PUMP
AISIN SEIKI
TOYODA KOUKI
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
AISIN SEIKI
TOYODA KOUKI
15121GEAR, OIL PUMP DRIVE
15122GEAR, OIL PUMP DRIVEN
15131VALVE, OIL PUMP RELIEF
TOYODA KOUKI
AISIN SEIKI
15132SPRING, OIL PUMP RELIEF VALVE
TOYODA KOUKI
AISIN SEIKI
15135RETAINER, OIL PUMP RELIEF VALVE
AISIN SEIKI
TOYODA KOUKI
15149GASKET, OIL STRAINER FLANGE
15193GASKET, OIL PUMP
9011606022
main90116-06022
9015160006
main90151-60006
9017906143
main90179-06143
9151160825
main91511-60825
9151160835
main91511-60835
9322016014
main93220-16014
9615101500
main96151-01500
22 parts on this diagram · 1 diagram in section
