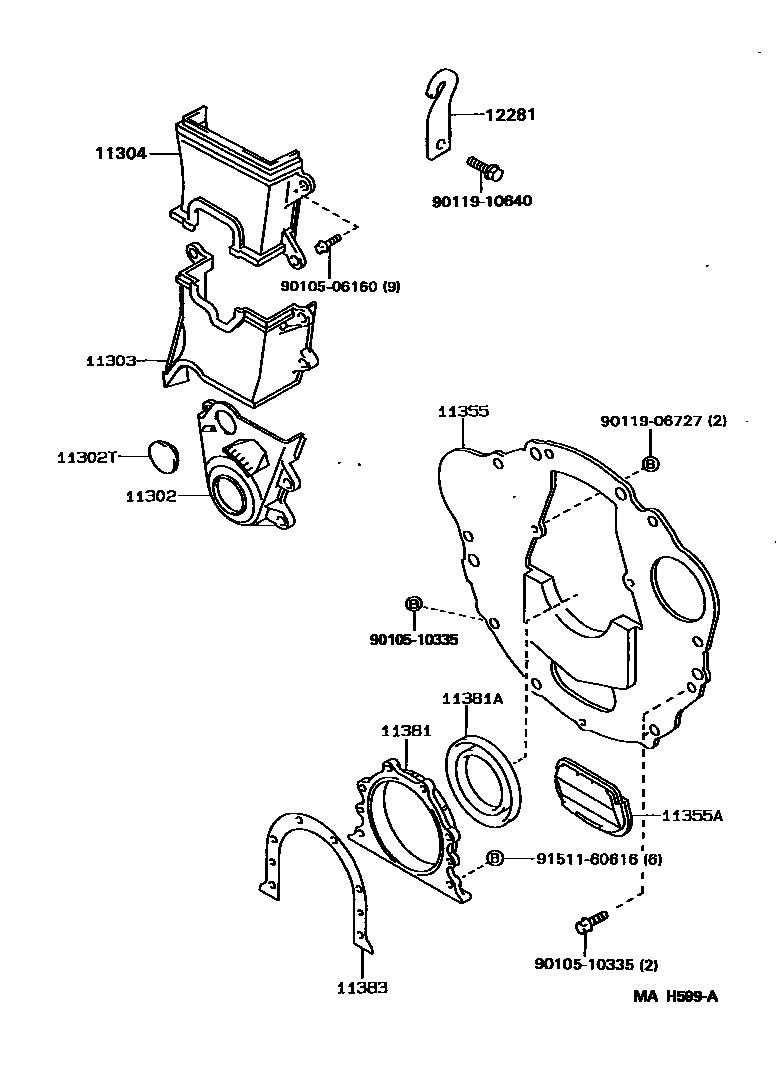

Toyota COROLLA SPRINTER — TIMING GEAR COVER & REAR END PLATE
11302TPLUG, HOLE
11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11304COVER, TIMING CHAIN OR BELT, NO.2
11355APLUG, HOLE(FOR REAR END PLATE)
11381ASEAL, ENGINE REAR OIL
11383GASKET, ENGINE REAR OIL SEAL RETAINER
12281HANGER, ENGINE, NO.1
9010506160
9010510335
9011906727
9011910640
9151160616
15 parts on this diagram · 1 diagram in section
TIMING GEAR COVER & REAR END PLATE for Toyota COROLLA SPRINTER
This section contains 15 genuine Toyota parts for the TIMING GEAR COVER & REAR END PLATE system of the Toyota COROLLA SPRINTER. Key components include: COVER SUB-ASSY, TIMING CHAIN OR BELT, PLUG, HOLE, COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY, COVER, TIMING CHAIN OR BELT, NO.2, PLATE, REAR END.
