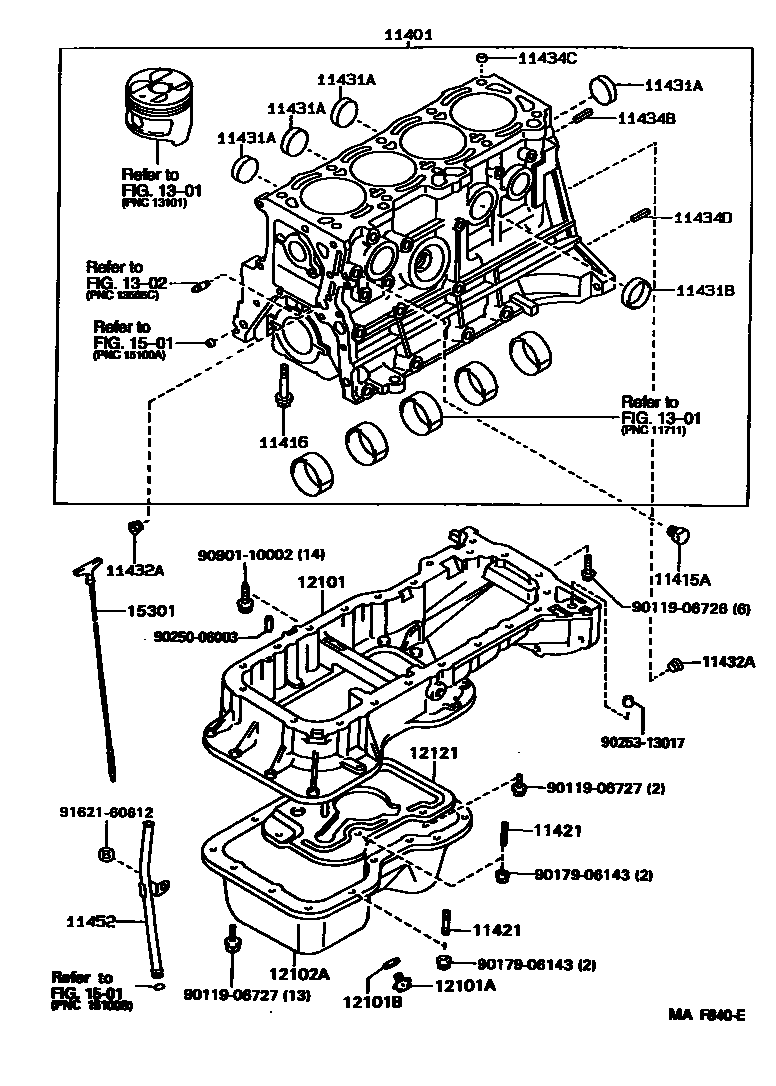

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19725i7AFE..AE102199402-199511

main11401-19735i7AFE..AE102199511-199605

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i7AFE..AE102199402-199605

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i7AFE..AE102199402-199605

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i7AFE..AE102199402-199605

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i7AFE..AE102199402-199605

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i7AFE..AE102199402-199605

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i7AFE..AE102199402-199605

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i7AFE..AE102199402-199605

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i7AFE..AE102199402-199605

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i7AFE..AE102199402-199605

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15030i7AFE..AE102199402-199605

12101PAN SUB-ASSY, OIL

main12111-16120i7AFE..AE102..4FC199409-199605

main12111-16130i7AFE..AE102..5F199402-199605

12101APLUG(FOR OIL PAN DRAIN)

main90341-12026i7AFE..AE102..5F199402-199605

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i7AFE..AE102..5F199402-199605

12102APAN SUB-ASSY, OIL, NO.2

main12102-16010i7AFE..AE102199402-199605

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-16040i7AFE..AE102199402-199605

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-16091i7AFE..AE102199402-199605

9011906726

main90119-06726

9011906727

main90119-06727

9017906143

main90179-06143

9025006003

main90250-06003

9025313017

main90253-13017

9090110002

main90901-10002

9162160612

main91621-60612

27 parts on this diagram · 1 diagram in section
