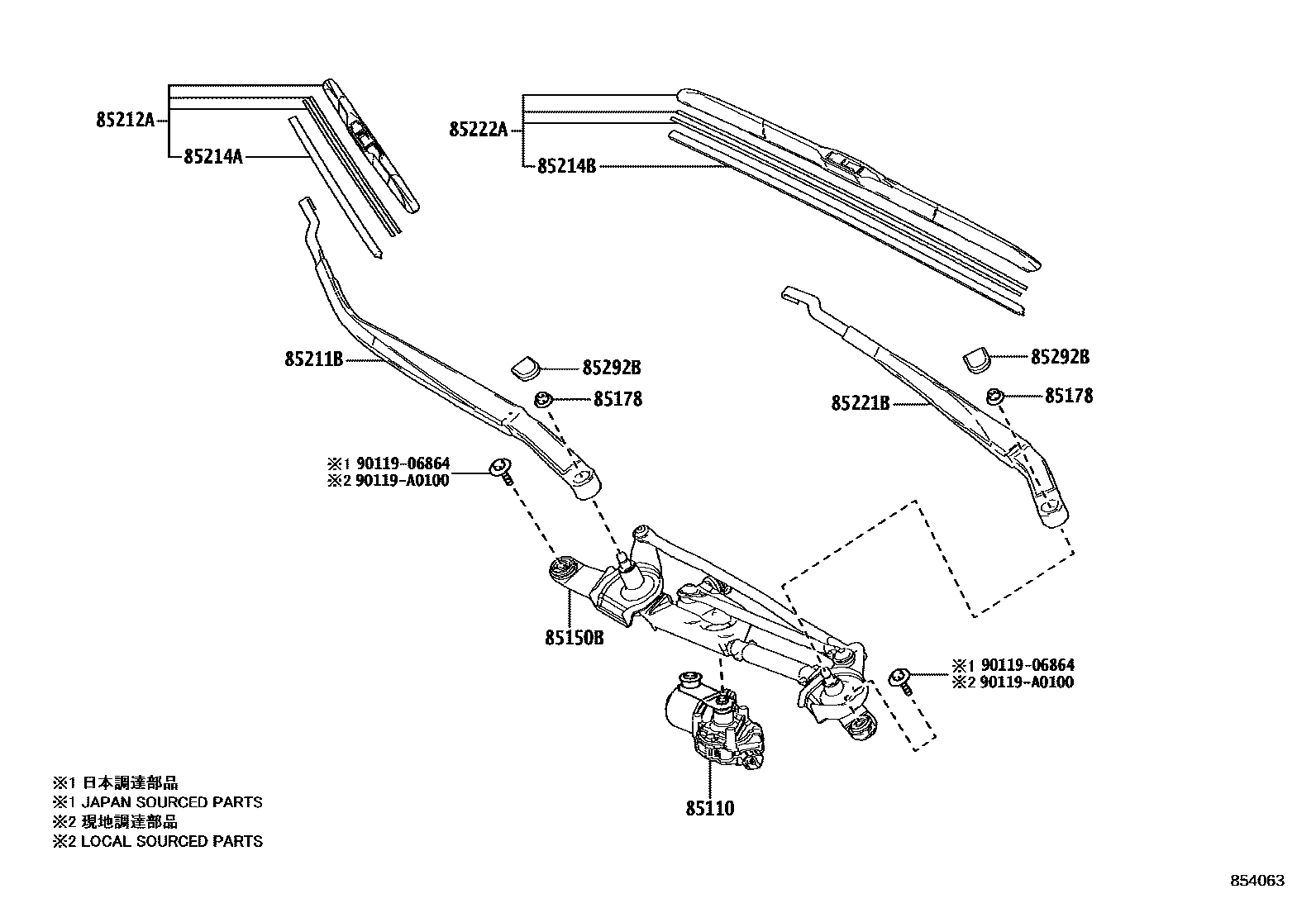

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02440iMZEA12,ZRE212201903-202007

85150BLINK ASSY, WIPER

main85150-02420iMZEA12..6F202007-202106

main85150-02421iMZEA1#202211-202410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iMZEA12,ZRE212201903-202007

(J)

main90182-A0017×2iZRE212;MZEA12..CVT202007-202211

(L)

85211BARM, FRONT WIPER, RH

main85211-02390iMZEA12..6F202007-202106

85212ABLADE, FR WIPER, RH

main85212-52220iMZEA12..6F202007-202106

85214ARUBBER, WIPER, RH

main85214-68030iMZEA1#202410

85214BRUBBER, WIPER, LH

main85214-28080iMZEA1#202410

85221BARM, FRONT WIPER, LH

main85221-02540iMZEA12..6F202007-202106

main85221-02541iMZEA1#202211-202410

85222ABLADE, FR WIPER, LH

main85222-12A90iMZEA12,ZRE212201903-202007

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2iMZEA1#202410

9011906864

main90119-06864

90119A0100

main90119-A0100

12 parts on this diagram · 1 diagram in section
