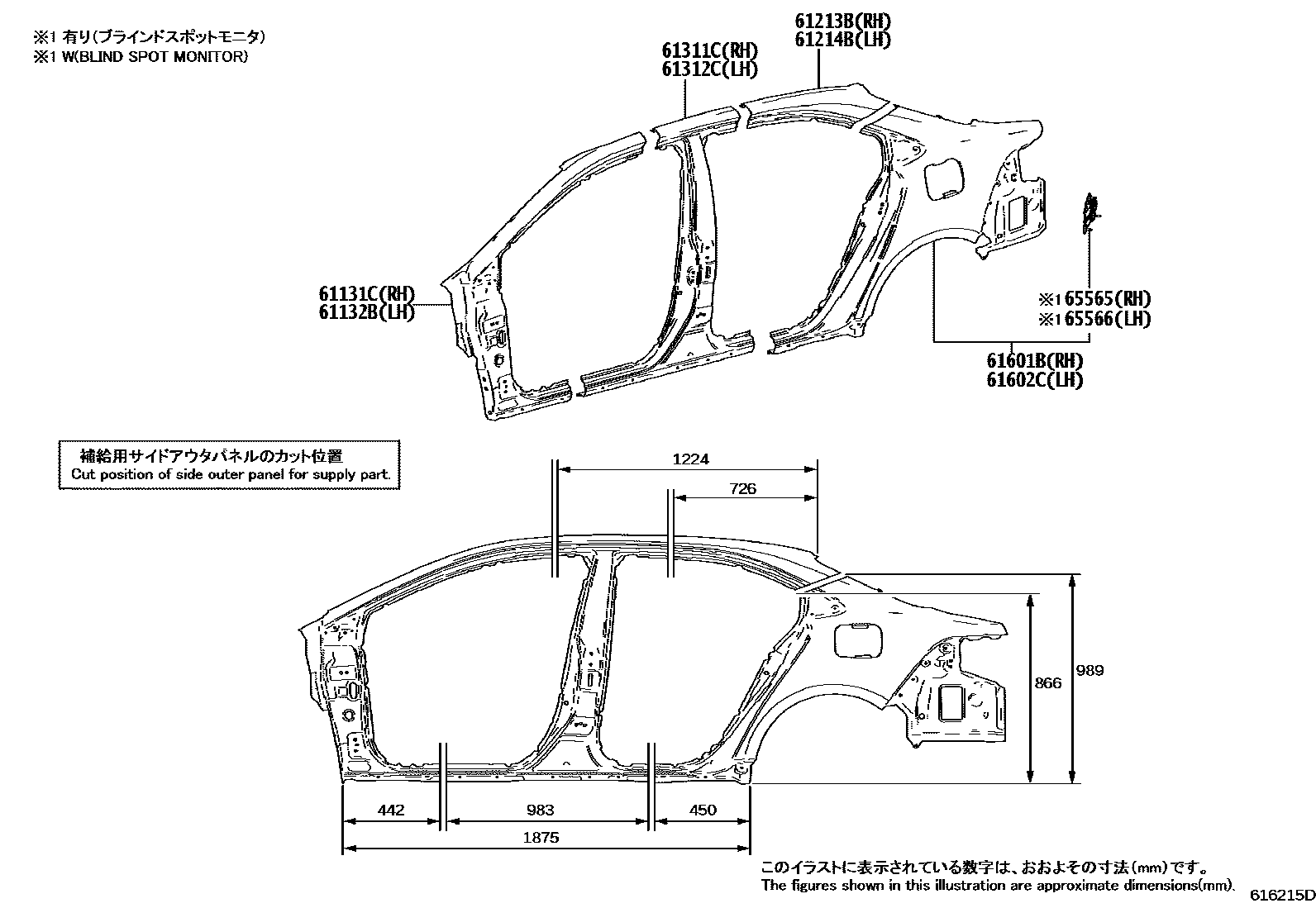

SIDE MEMBER
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61312CPANEL, REAR BODY FRONT OUTSIDE, LH
61601BPANEL SUB-ASSY, QUARTER, RH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
61602CPANEL SUB-ASSY, QUARTER, LH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
65565PATCH, SIDE PANEL REAR END, RH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
65566PATCH, SIDE PANEL REAR END, LH
REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
10 parts on this diagram · 3 diagrams in section
