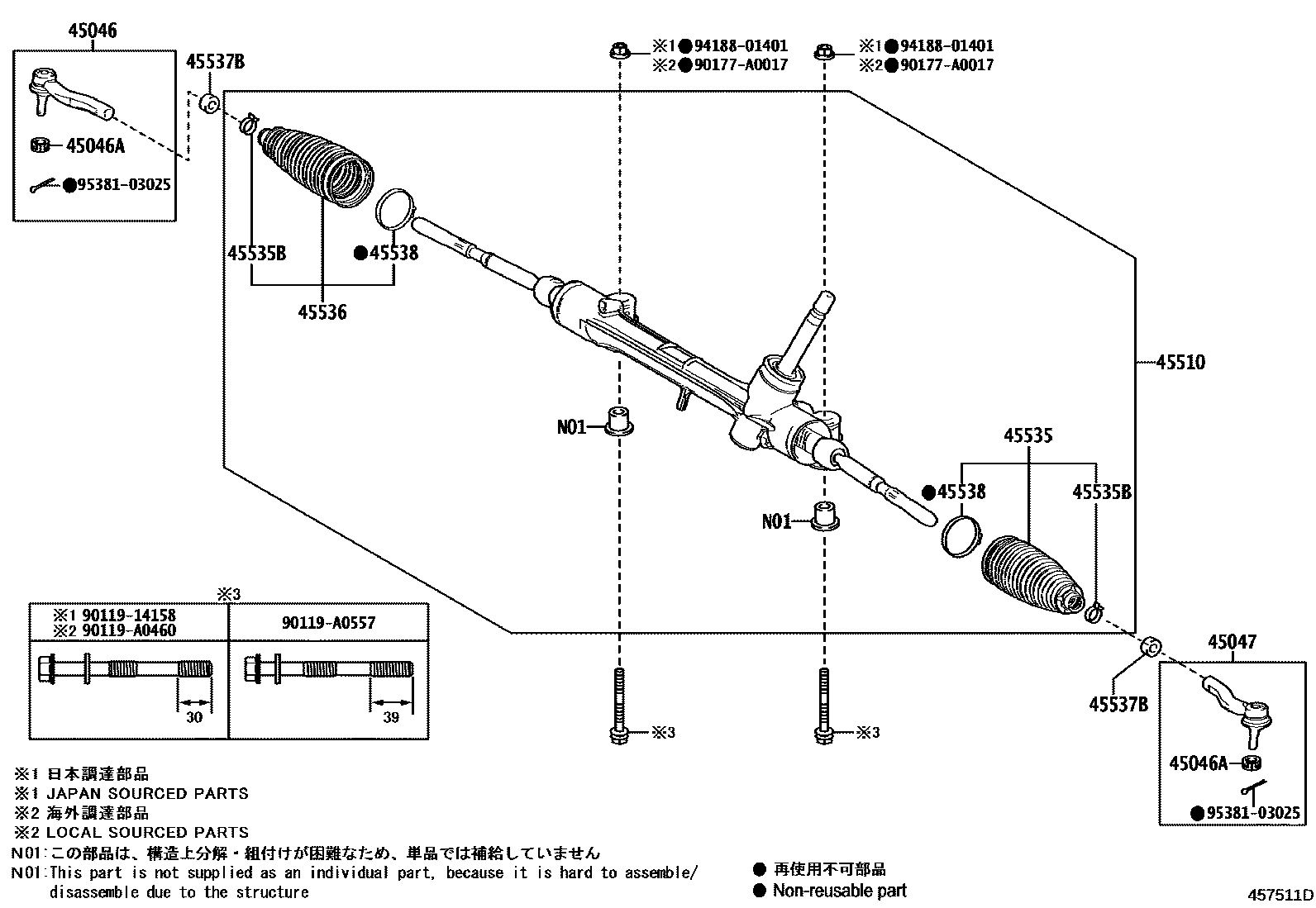

Toyota COROLLA (MEXICO)152 — FRONT STEERING GEAR & LINK
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45535BCLIP(FOR STEERING RACK BOOT)
45536BOOT, STEERING RACK, NO.2
45537BNUT, RACK END LOCK
45538RETAINER, STEERING RACK BOOT
9011914158
90119A0460
90119A0557
90177A0017
9418801401
9538103025
15 parts on this diagram · 1 diagram in section
FRONT STEERING GEAR & LINK for Toyota COROLLA (MEXICO)152
This section contains 15 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota COROLLA (MEXICO)152. Key components include: END SUB-ASSY, TIE ROD, RH, NUT, CASTLE(FOR TIE ROD END), END SUB-ASSY, TIE ROD, LH, GEAR ASSY, STEERING, BOOT, STEERING RACK, NO.1.
