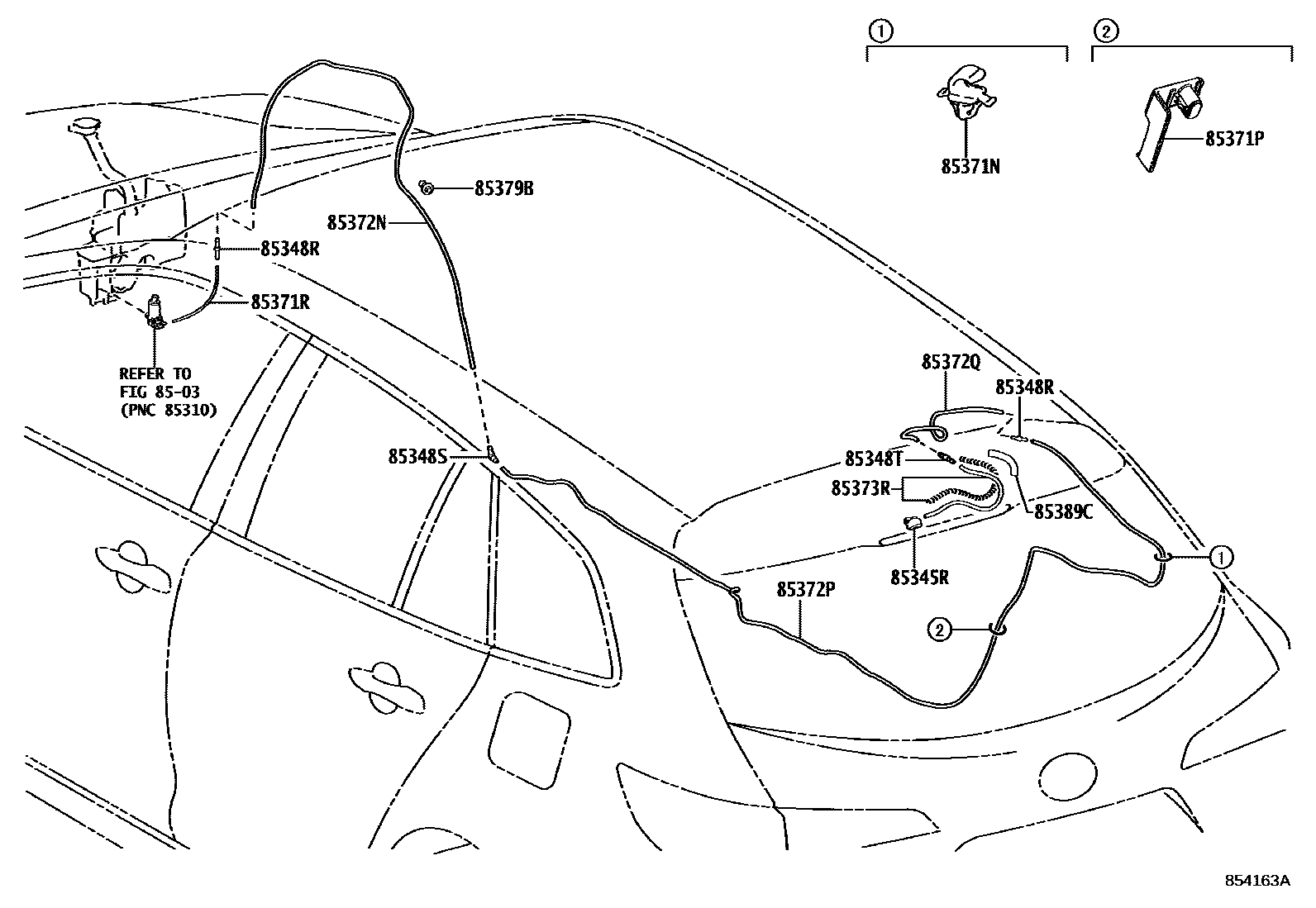

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-12110iZRE212201909

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iZRE212201909

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iZRE212201909

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iZRE212201909

85371NCLAMP, REAR WASHER HOSE

main85371-12040iZRE212201909

85371PCLAMP, REAR WASHER HOSE, NO.2

main85371-12050iZRE212201909

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iZRE212201909

L=1450(*H,L=250)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iZRE212201909

L=1480

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62199iZRE212201909

L=3267

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iZRE212201909

L=1450(*H,L=460)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iZRE212201909

L=1450(*H,L=330)

85379BGROMMET, WASHER, A

main85379-12850iZRE212201909

85389CPROTECTOR, WASHER

main85389-72030iZRE212201909

14 parts on this diagram · 1 diagram in section
