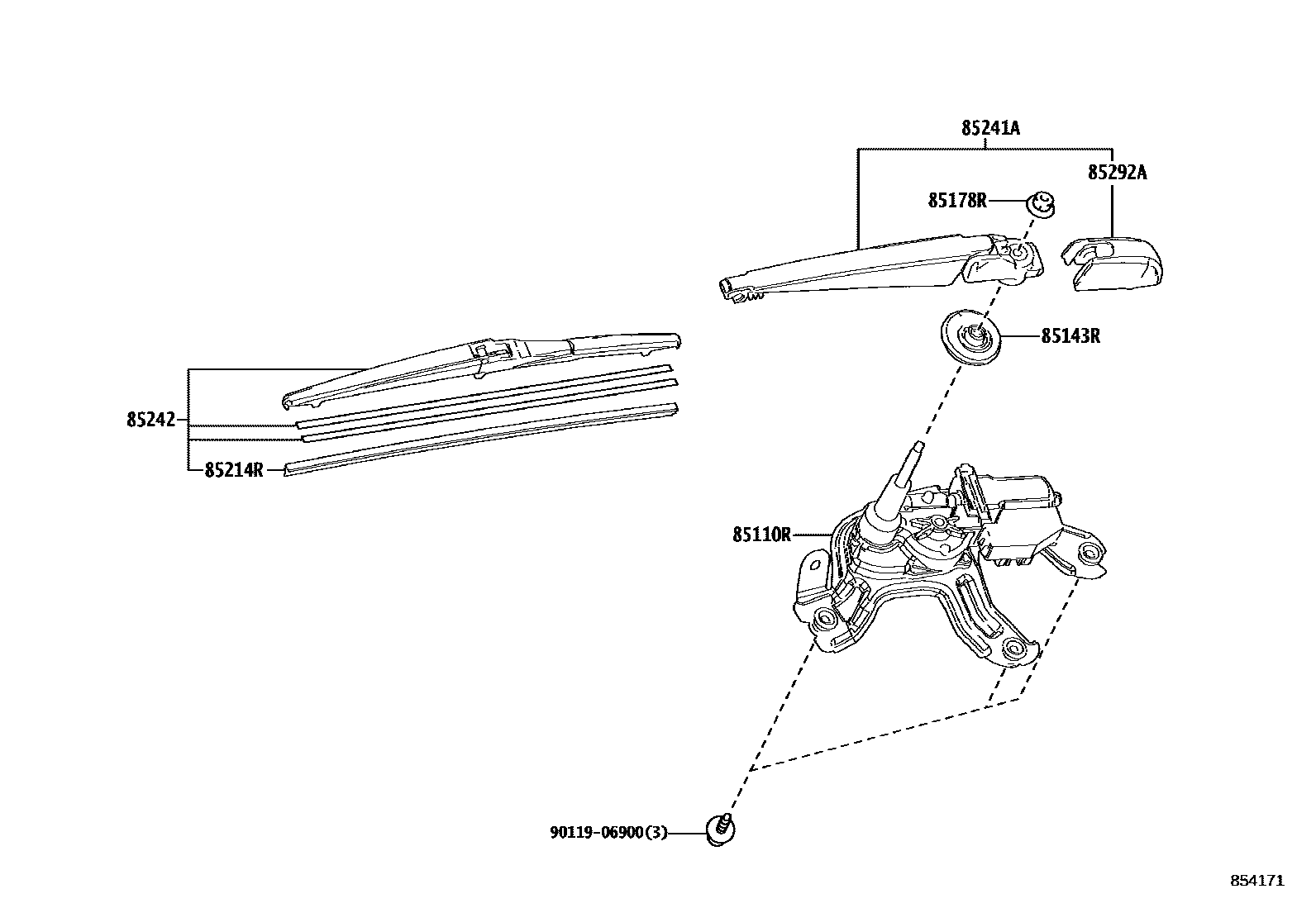

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12A60iZRE212201909

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iZRE212201909

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZRE212201909

85214RRUBBER, REAR WIPER

main85214-42040iZRE212201909

85241AARM, REAR WIPER

main85241-42060iZRE212201909

85242BLADE, RR WIPER

main85242-78010iZRE212201909

sub85242-72010

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iZRE212201909

9011906900

main90119-06900

8 parts on this diagram · 1 diagram in section
