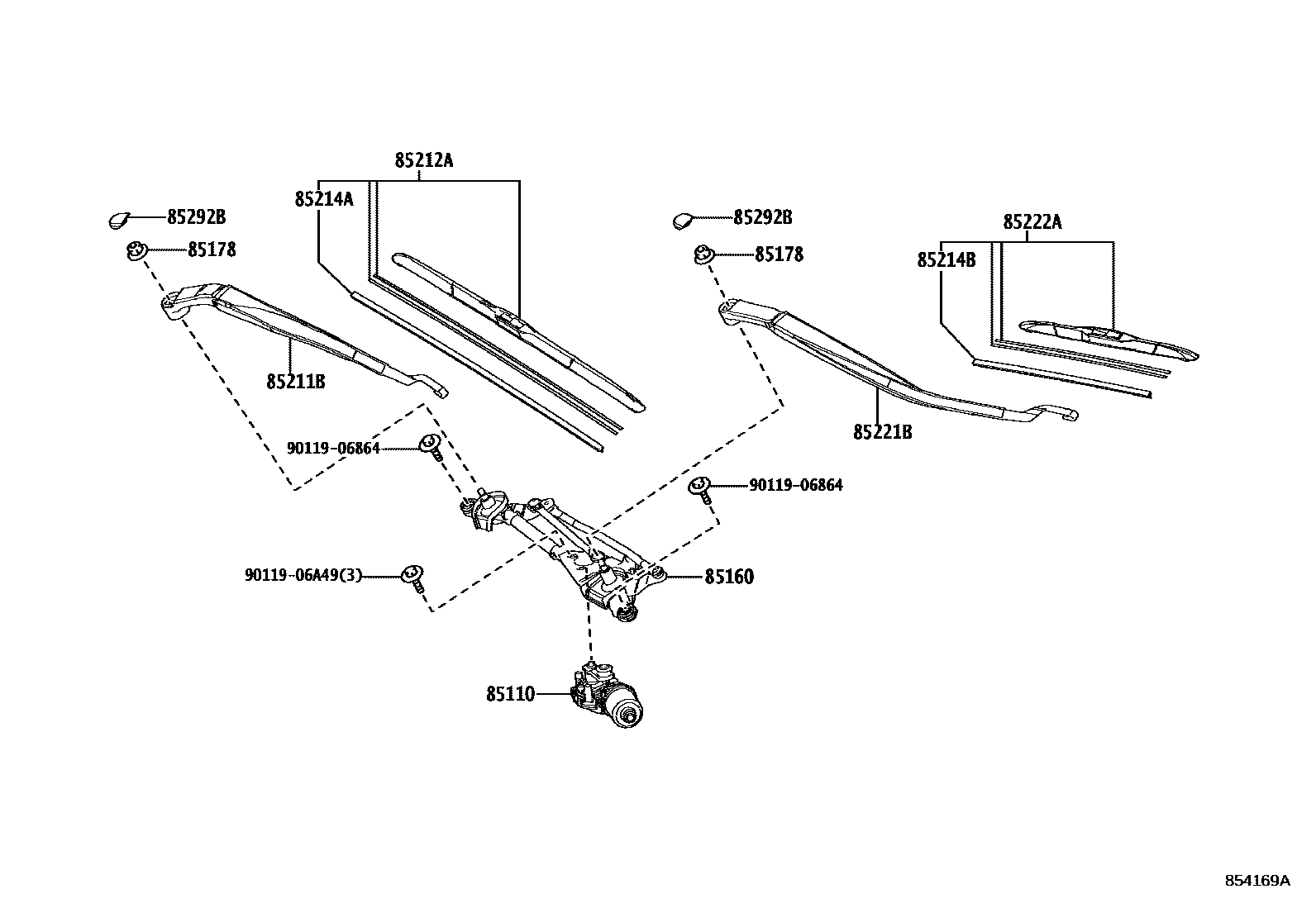

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C40iZRE212201909

85160LINK ASSY, WINDSHIELD WIPER

main85150-12B90iZRE212201909

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iZRE212201909

85211BARM, FRONT WIPER, RH

main85211-12670iZRE212201909

85212ABLADE, FR WIPER, RH

main85212-12610iZRE212201909

85214ARUBBER, WIPER, RH

main85214-28080iZRE212201909

85214BRUBBER, WIPER, LH

main85214-68030iZRE212201909

85221BARM, FRONT WIPER, LH

main85221-12600iZRE212201909

85222ABLADE, FR WIPER, LH

main85222-12A80iZRE212201909

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iZRE212201909

9011906864

main90119-06864

9011906A49

main90119-06A49

12 parts on this diagram · 1 diagram in section
