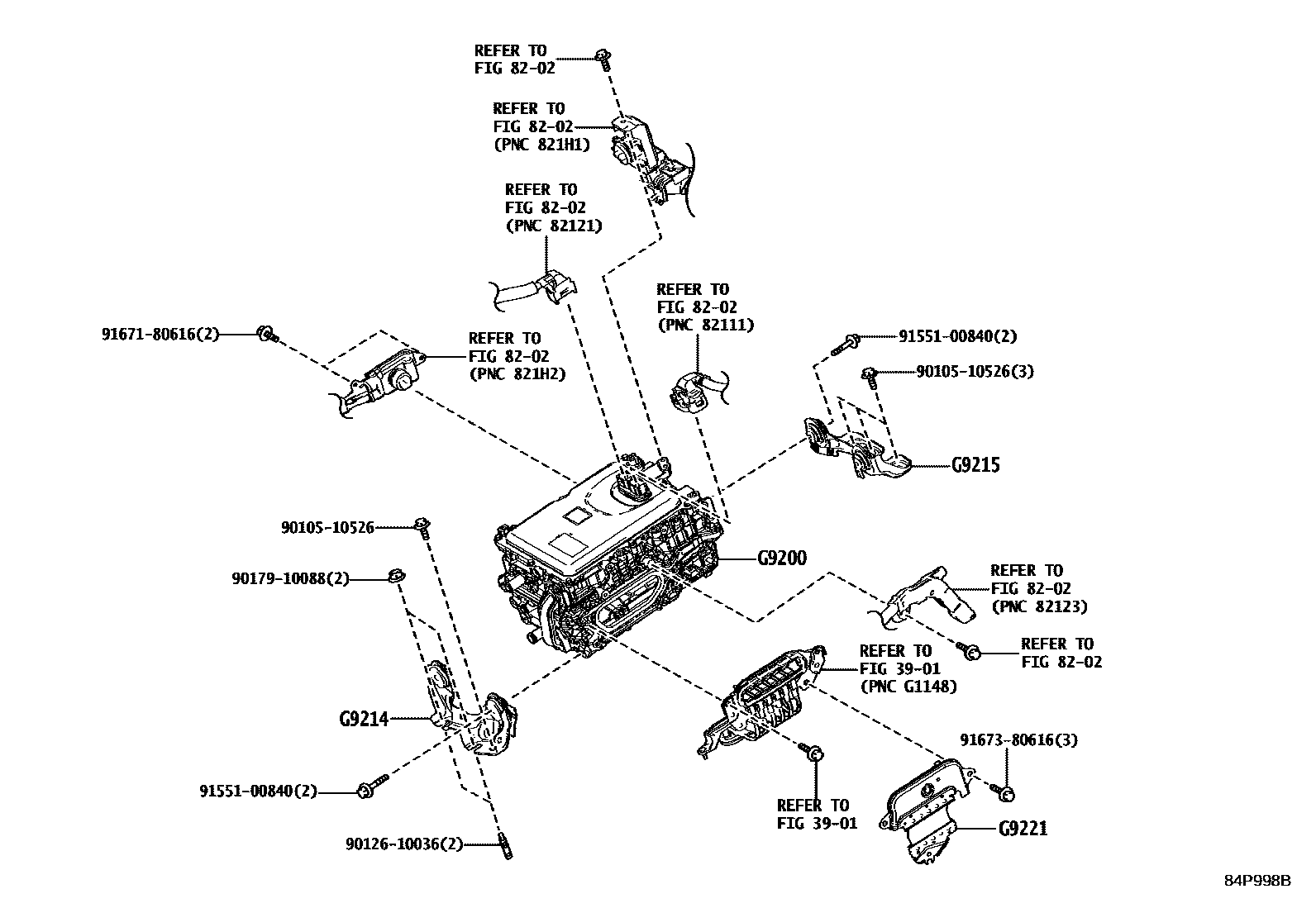

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A016030iZWE219202210-202301

mainG92A047220iZWE219202302

G9214BRACKET, INVERTER, NO.1

mainG921428090iZWE219202210

G9215BRACKET, INVERTER, NO.2

mainG921528050iZWE219202210

G9221COVER, INVERTER

mainG902228030iZWE219202210

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167180616

main91671-80616

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
