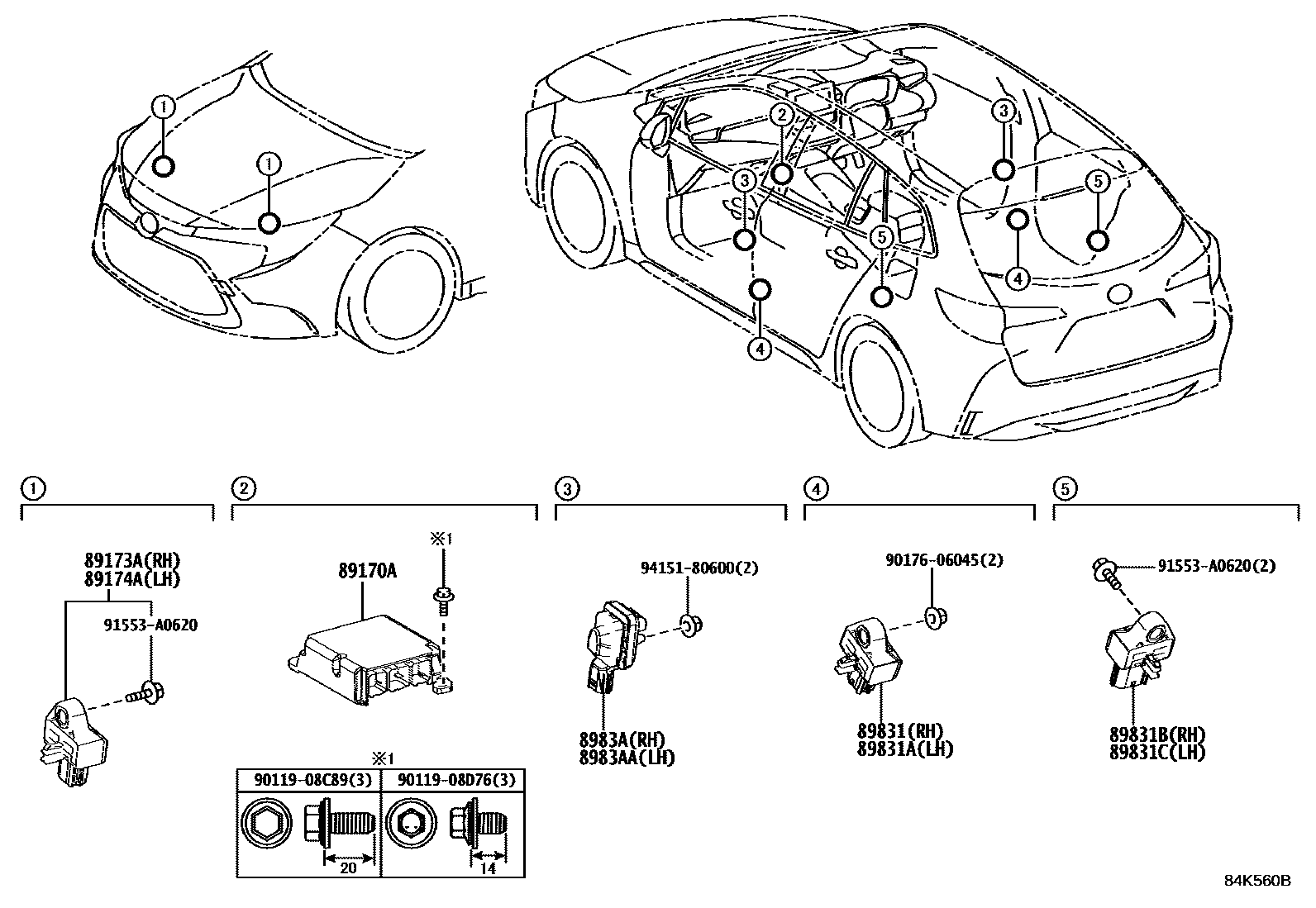

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-12F60iZRE212202101

main89170-12G50iZRE212201909-202101

main89170-12M50iZWE219202210-202404

*614

main89170-12N00iZWE219202404

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-49495iZRE212201909

main89173-49505iZWE219202404

main89173-59335iZWE219202210-202404

89174ASENSOR, AIRBAG, FRONT LH

main89173-49495iZRE212201909

main89173-49505iZWE219202404

main89173-59335iZWE219202210-202404

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-42020iZWE219202210-202404

main89831-42060iZWE219202404

main89831-47050iZRE212201909

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-42020iZWE219202210-202404

main89831-42060iZWE219202404

main89831-47050iZRE212201909

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-28040iZRE212201909

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-28040iZRE212201909

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iZWE219202210

main8983A-33010iZRE212201909-202012

main8983A-33011iZRE212202101

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iZWE219202210

main8983A-33010iZRE212201909-202012

main8983A-33011iZRE212202101

9011908C89

main90119-08C89

9011908D76

main90119-08D76

9017606045

main90176-06045

91553A0620

main91553-A0620

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
