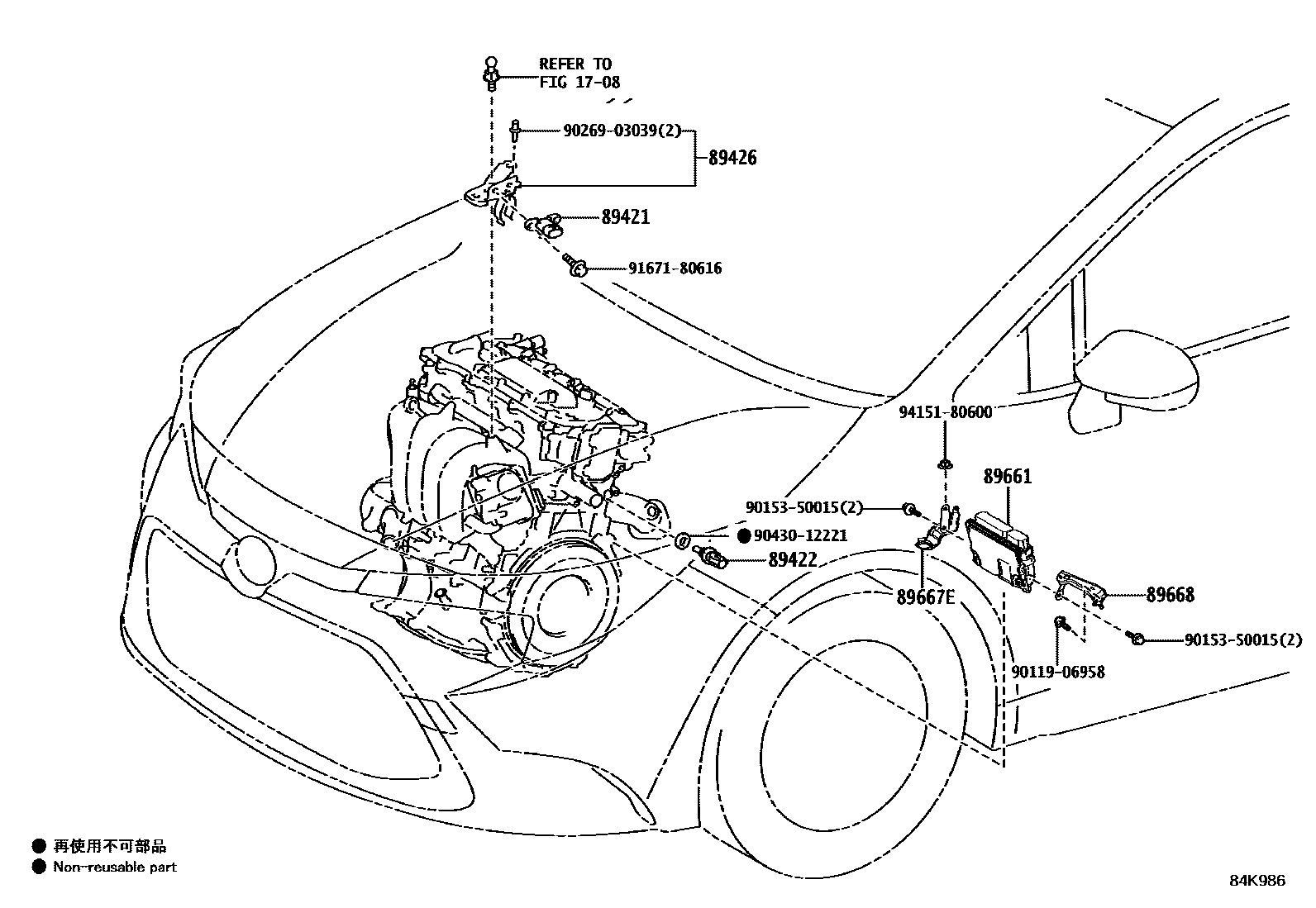

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

1708VACUUM PIPING

→ Go to FIG 17-08

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030201909

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030201909

89426BRACKET, VACUUM SENSOR

main89426-13020201909

89661COMPUTER, ENGINE CONTROL

main89661-12V70201909-202101

main89661-16820202404

main89661-1AE60202101-202102

main89661-1AE61202103

main89661-1AF70202210-202404

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12360201909

main89667-47120202210

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12290201909

main89668-47070202210

9011906958

main90119-06958

9015350015

main90153-50015

9026903039

main90269-03039

9043012221

main90430-12221

9167180616

main91671-80616

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
