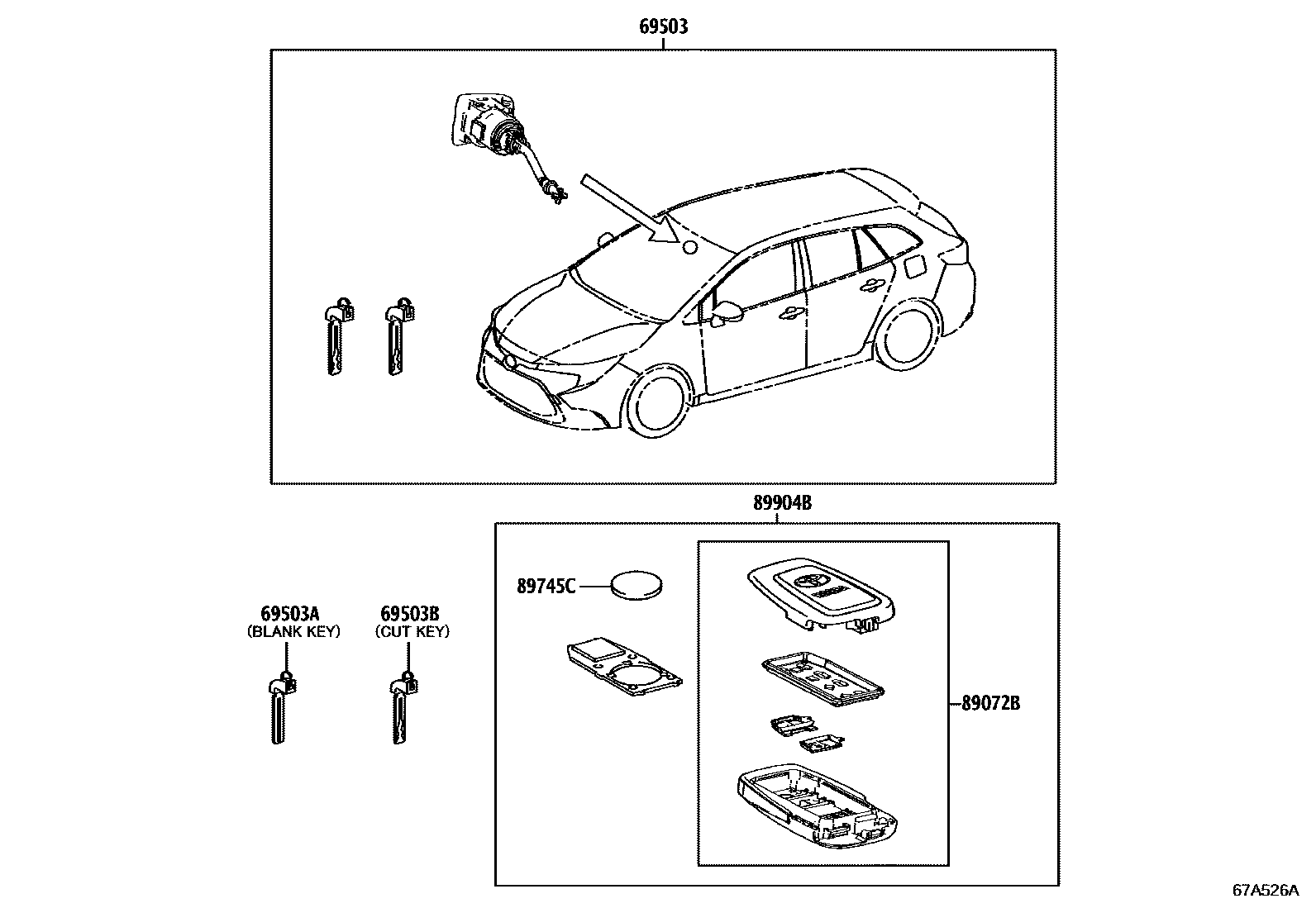

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-12K60iZRE212201909

main69005-12K61iZWE219202210

69503AKEY, BLANK

main69515-16110iZRE212202010

MASTER KEY,W(*68)

main69515-47030iZRE212201909-202009

MASTER KEY,W(*68)

main69515-K0020iZWE219202210

BLANK KEY,W(*68)

69503BKEY, CUT

main69515-16100×2iZRE212202010

MASTER KEY,W(*68)

main69515-47020×2iZRE212201909-202009

MASTER KEY,W(*68)

main69515-K0010×2iZWE219202210

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-12500×2iZRE212201909

main89072-K0010×2iZWE219202210

89745CBATTERY, TRANSMITTER

main89745-50020iZRE212201909

CR2032

main89745-K0010iZWE219202210

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-12130iZRE212201909

main8990H-52390iZWE219202210-202306

main8990H-52391iZWE219202307

6 parts on this diagram · 1 diagram in section
