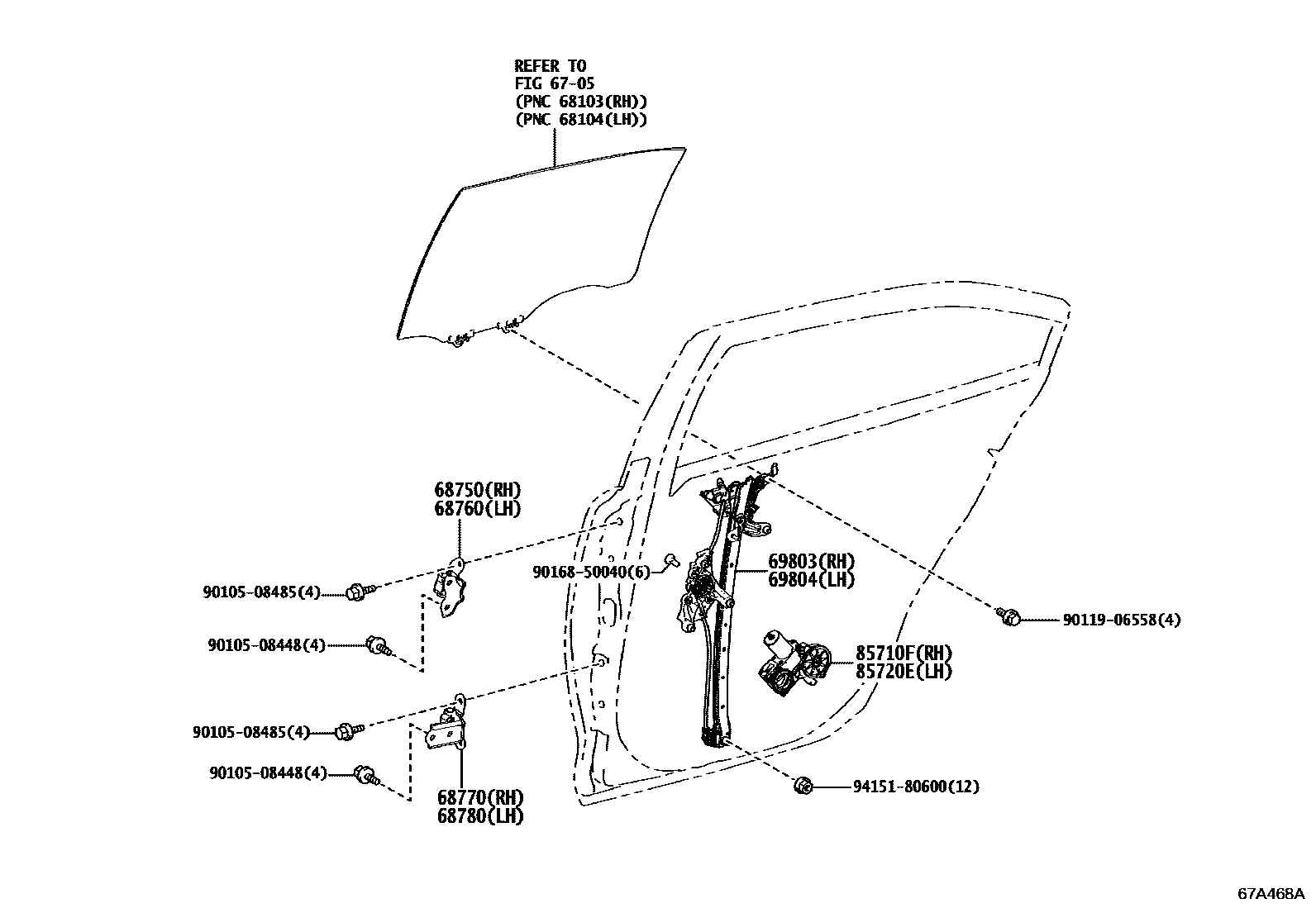

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iZRE212201909

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iZRE212201909

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iZRE212201909

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iZRE212201909

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12211iZRE212201909-202003

main69803-12212iZRE212202004-202104

main69803-12213iZRE212202105

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12211iZRE212201909-202003

main69804-12212iZRE212202004-202104

main69804-12213iZRE212202105

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12540iZRE212201909

main85710-12541iZWE219202210-202306

main85710-12570iZWE219202306

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12530iZRE212201909

main85720-12531iZWE219202210-202306

main85720-12580iZWE219202306

9010508448

main90105-08448

9010508485

main90105-08485

9011906558

main90119-06558

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
