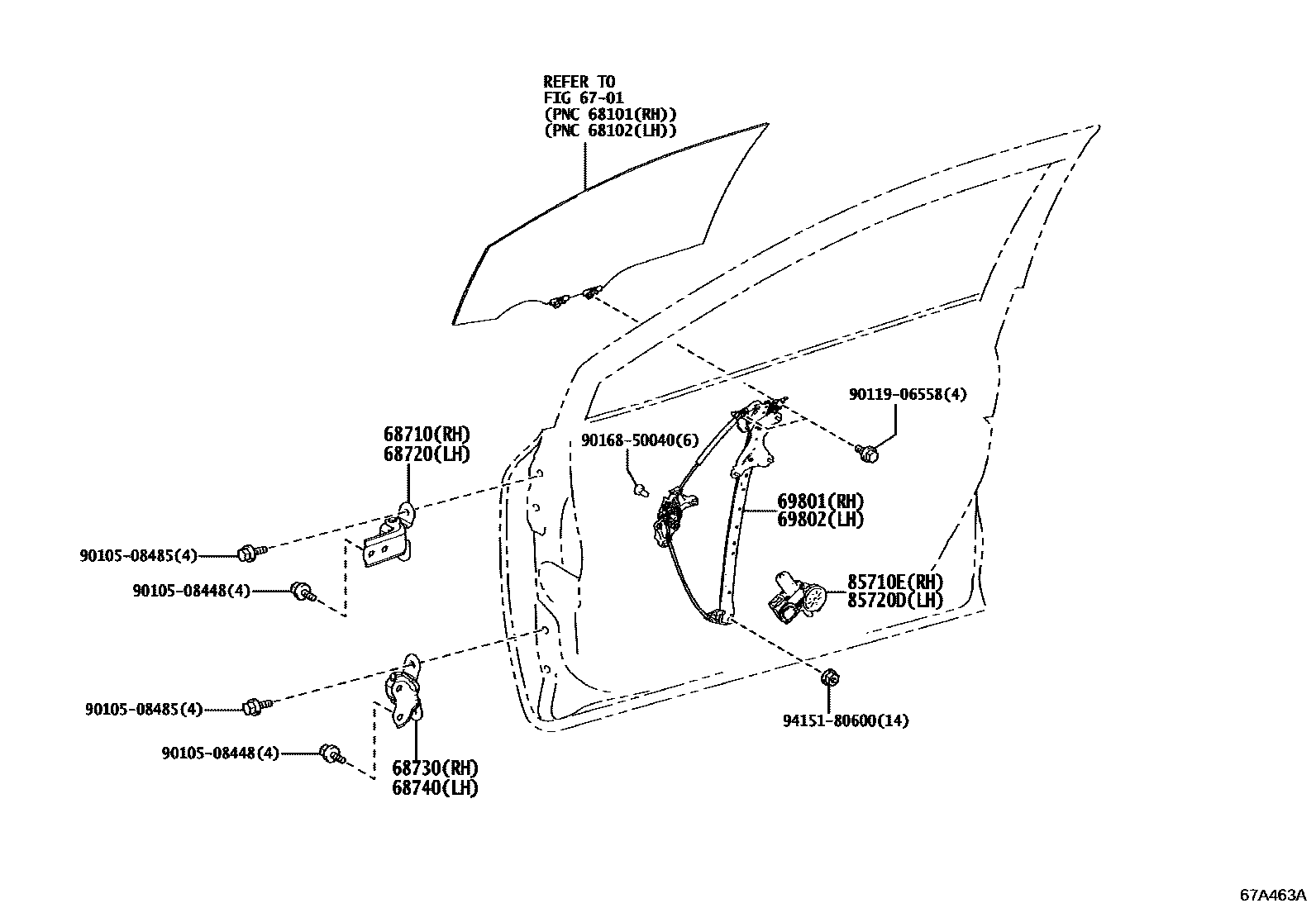

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151201909

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151201909

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120201909

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120201909

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12271201909-202003

main69801-12272202004-202104

main69801-12273202105

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12271201909-202003

main69802-12272202004-202104

main69802-12273202105

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12530201909

main85710-12531202210-202306

main85710-12560202306

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12520201909

main85720-12521202210-202306

main85720-12570202306

9010508448

main90105-08448

9010508485

main90105-08485

9011906558

main90119-06558

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
