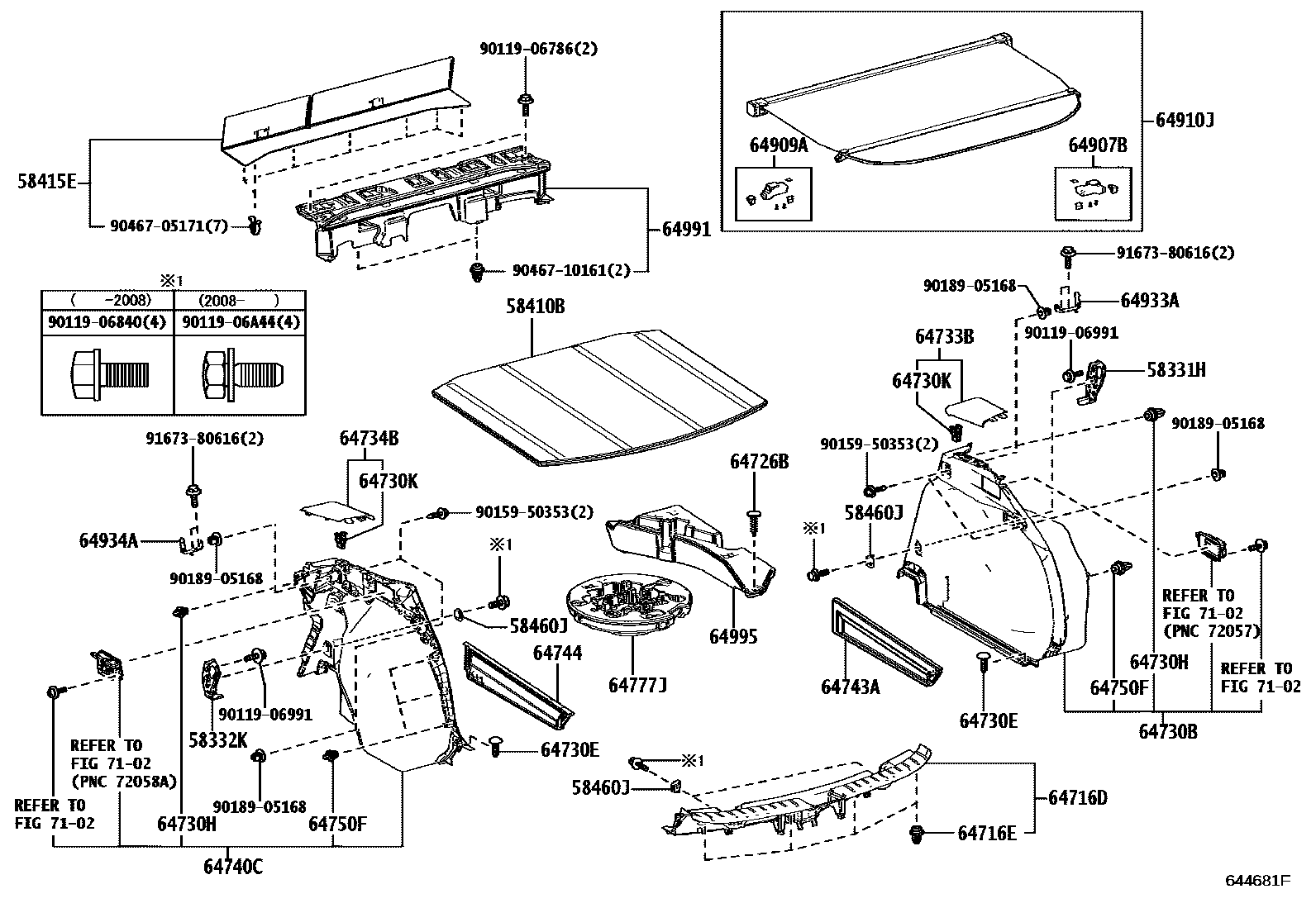

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58410BBOARD ASSY, DECK
BLACK,TRIM2#
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM2#
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64726BCLIP, DECK REAR TRIM
BLACK,TRIM2#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64733BBOARD, DECK TRIM SIDE, UPR RH
BLACK,TRIM2#
64734BBOARD, DECK TRIM SIDE, UPPER LH
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
64743ABOARD, DECK TRIM SIDE, LOWER RH
BLACK,TRIM2#
64744BOARD, DECK TRIM SIDE, LOWER LH
BLACK,TRIM2#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64777JCUSHION, SPARE WHEEL
64907BSTOPPER SUB-ASSY, TONNEAU COVER, RH
64909ASTOPPER SUB-ASSY, TONNEAU COVER, LH
64910JCOVER ASSY, TONNEAU
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64991BOX, DECK FLOOR, FRONT
BLACK,TRIM2#
64995BOX, DECK FLOOR, RH
7102
9011906786
main90119-06786
9011906840
main90119-06840
9011906991
main90119-06991
9011906A44
main90119-06A44
9015950353
main90159-50353
9018905168
main90189-05168
9046705171
main90467-05171
9046710161
main90467-10161
9167380616
main91673-80616
36 parts on this diagram · 1 diagram in section
