ROOF HEADLINING & SILENCER PAD

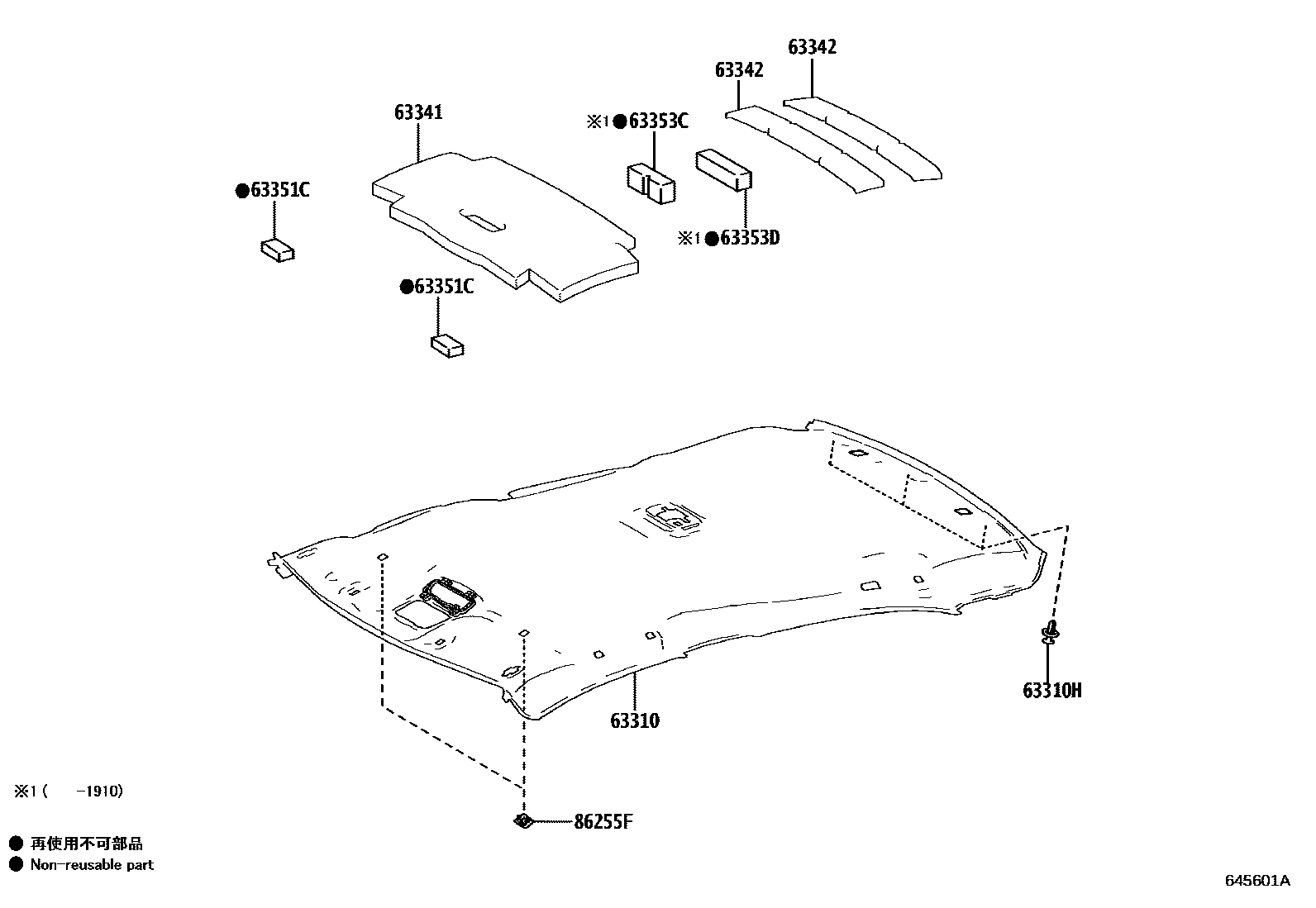

Parts diagram

63310HEADLINING ASSY, ROOF

main63310-12P20-A1i201909-202107

FROMAGE,TRIM2#

main63310-12P21-A1i202107-202108

FROMAGE,TRIM2#

main63310-12P22-A1i202108

FROMAGE,TRIM2#

main63310-12Q51-A0i202210

FROMAGE,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05168-A0×3i201909

FROMAGE,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-12380i201909-202107

main63341-12381i202108

63342PAD, ROOF SILENCER, NO.2

main63342-12460×2i201909

63351CPAD, ROOF HEADLINING

main63351-12120×2i201909

63353CPAD, ROOF HEADLINING, CENTER

main63353-12060i201909-201910

63353DPAD, ROOF HEADLINING, CENTER

main63353-12040i201909-201910

86255FCASE, MICROPHONE

main86255-42010-A0×2i202210

FROMAGE,TRIM2#

8 parts on this diagram · 1 diagram in section
