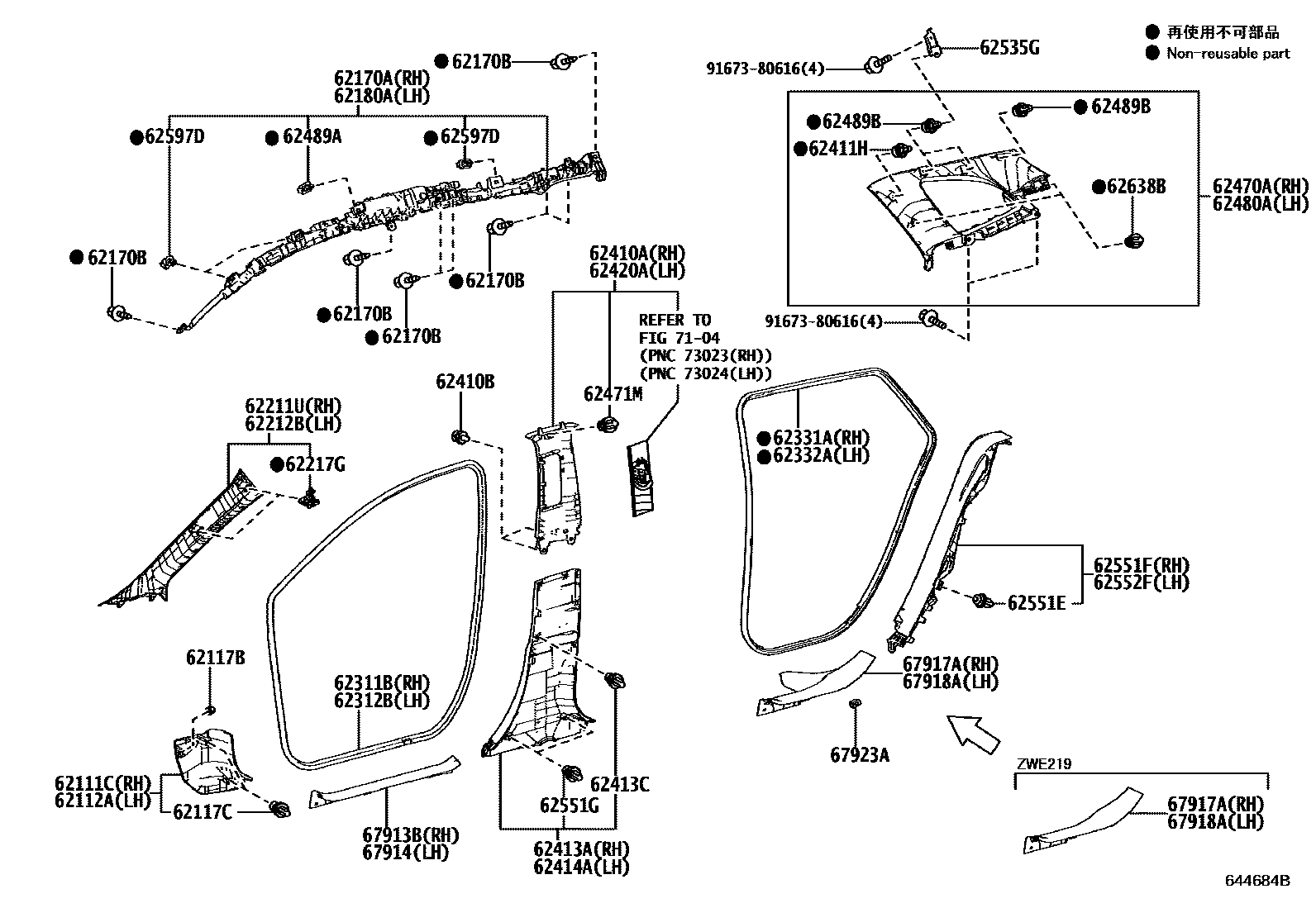

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211UGARNISH ASSY, FRONT PILLAR, RH
FROMAGE,TRIM2#
62212BGARNISH ASSY, FRONT PILLAR, LH
FROMAGE,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
BLACK,TRIM2#
62410BCLIP
62411HCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62420AGARNISH ASSY, CENTER PILLER, LH
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
BLACK,TRIM2#
62471MCLIP
62480AGARNISH ASSY, ROOF SIDE, INNER LH
BLACK,TRIM2#
62489ACLIP, ROOF SIDE INNER GARNISH
62489BCLIP, ROOF SIDE INNER GARNISH
62535GBRACKET, QUARTER TRIM PANEL, NO.2
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM2#
62597DCLIP
62638BCLIP
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
9167380616
main91673-80616
40 parts on this diagram · 1 diagram in section
