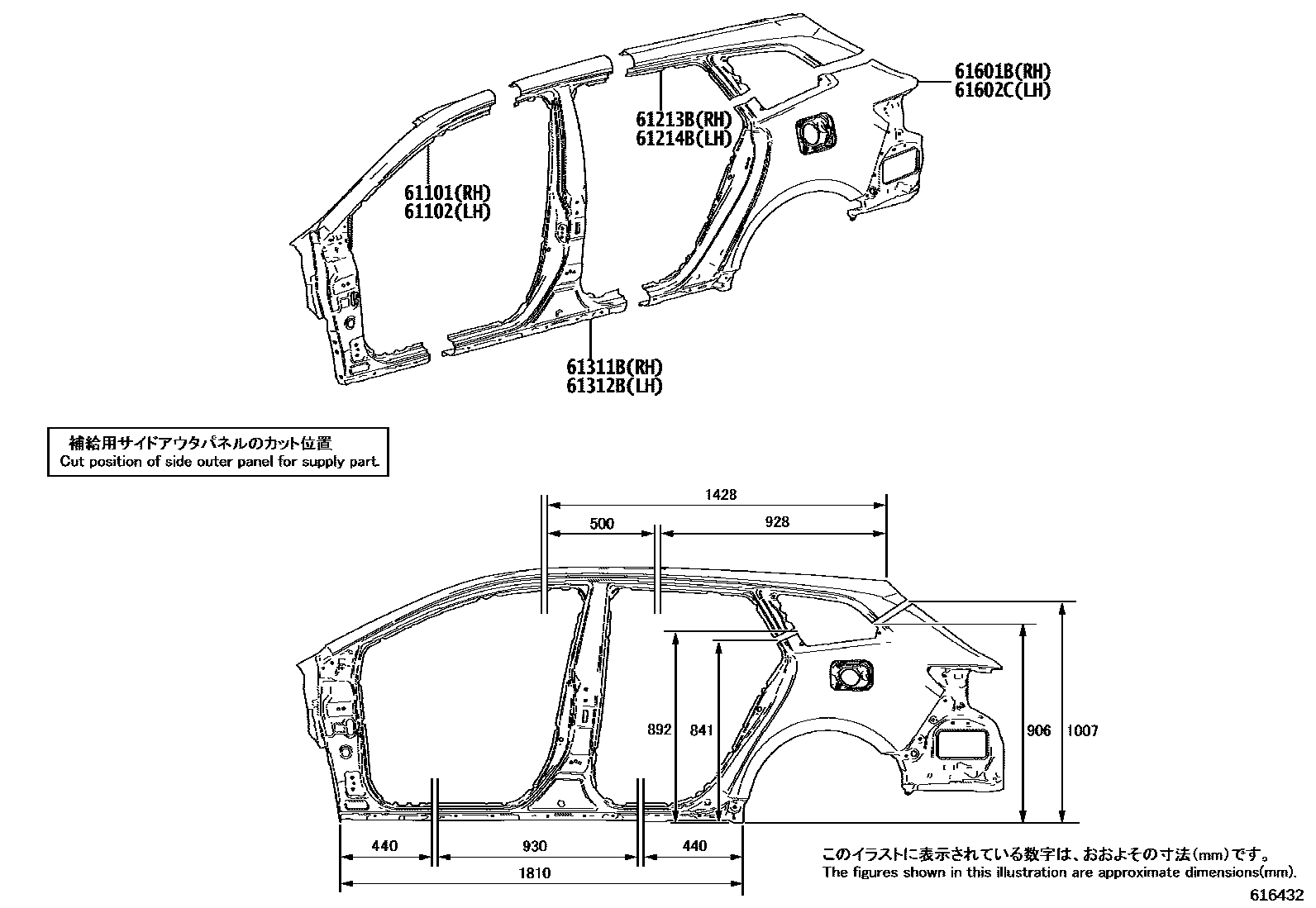

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PNAEL, RH 0003 1INNER PANEL, LH

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-12240iZRE212201909

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-12210iZRE212201909

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12080iZRE212201909

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12080iZRE212201909

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12550iZRE212201909

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12590iZRE212201909

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-12C80iZRE212201909

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-12C80iZRE212201909

8 parts on this diagram · 3 diagrams in section
