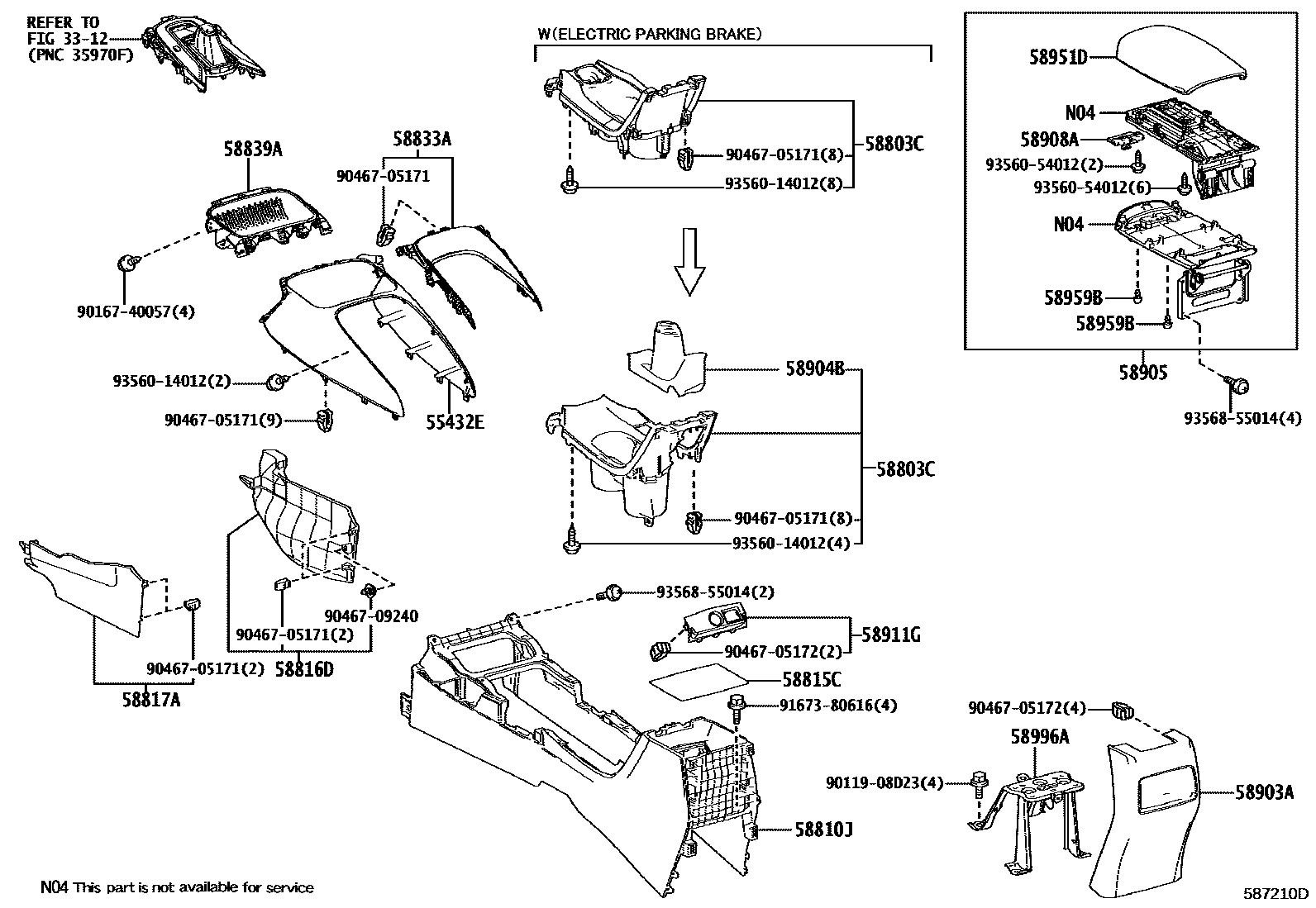

CONSOLE BOX & BRACKET

3312

55432EPANEL, INSTRUMENT PANEL FINISH, LOWER NO.1

main55436-12200-C0iZRE212201909

BLACK,TRIM2#

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-12050iZWE219202210

main58803-12210-C0iZRE212201909

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-12520-C0iZRE212201909

BLACK,TRIM2#

58815CCARPET, CONSOLE BOX

main58815-12240iZRE212201909

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-12160-C0iZRE212201909

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-12170-C0iZRE212201909

BLACK,TRIM2#

58833ACOVER, CONSOLE, UPPER

main58833-12150-C0iZRE212201909

BLACK,TRIM2#

58839ACOVER, CONSOLE BOX HOLE

main58839-12090-C0iZRE212201909

BLACK,TRIM2#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-12100-C0iZRE212201909

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-12160-C0iZRE212201909

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12A90-B1iZRE212201909

GRAY,TRIM20

main58905-12A90-C3iZRE212201909

BLACK,TRIM21

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iZRE212201909

58911GPANEL, BOX, NO.1

main58911-12580-C0iZRE212201909

BLACK,TRIM2#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-12810-B0iZRE212201909

GRAY,TRIM20

main58951-12810-C0iZRE212201909

BLACK,TRIM21

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×4iZRE212201909

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-12240iZRE212201909

9011908D23

main90119-08D23

9016740057

main90167-40057

9046705171

main90467-05171

9046705172

main90467-05172

9046709240

main90467-09240

9167380616

main91673-80616

9356014012

main93560-14012

9356054012

main93560-54012

9356855014

main93568-55014

26 parts on this diagram · 1 diagram in section
