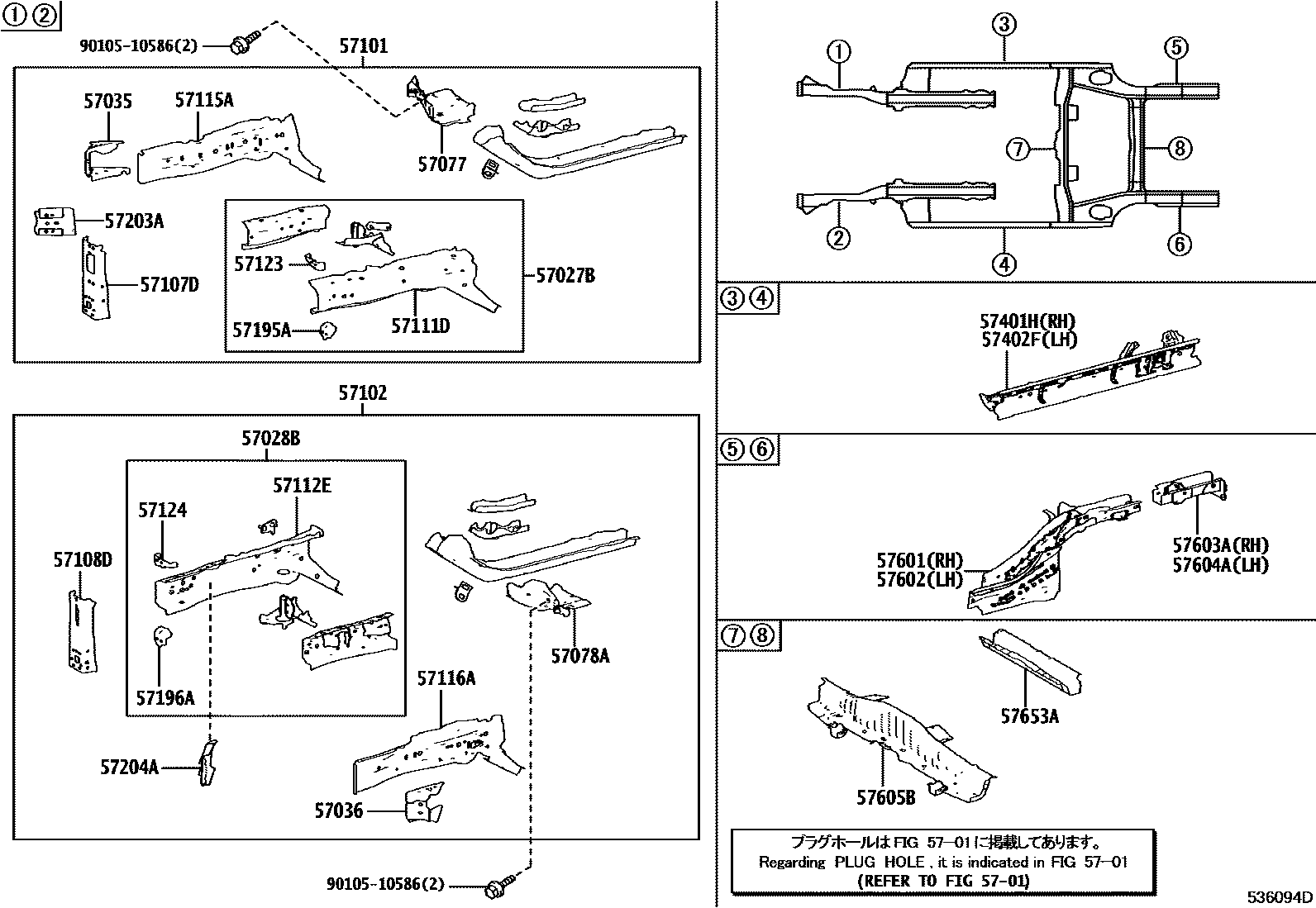

FLOOR SIDE MEMBER

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47021iZRE212201909

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iZRE212201909

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47021iZRE212201909

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47031iZRE212201909

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47041iZRE212201909

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47041iZRE212201909

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47071iZRE212201909

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47091iZRE212201909

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iZRE212201909

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iZRE212201909

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iZRE212201909

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iZRE212201909

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iZRE212201909

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iZRE212201909

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iZRE212201909

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iZRE212201909

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iZRE212201909

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iZRE212201909

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47011iZRE212201909

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47011iZRE212201909

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-12640iZRE212201909

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-12640iZRE212201909

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12B70iZRE212201909-202112

main57601-12C30iZRE212202201

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12C50iZRE212201909-202112

main57602-12D10iZRE212202201

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47060iZRE212201909

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47060iZRE212201909

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-10071iZRE212201909

main57605-47080iZWE219202210

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iZRE212201909

9010510586

main90105-10586

30 parts on this diagram · 2 diagrams in section
