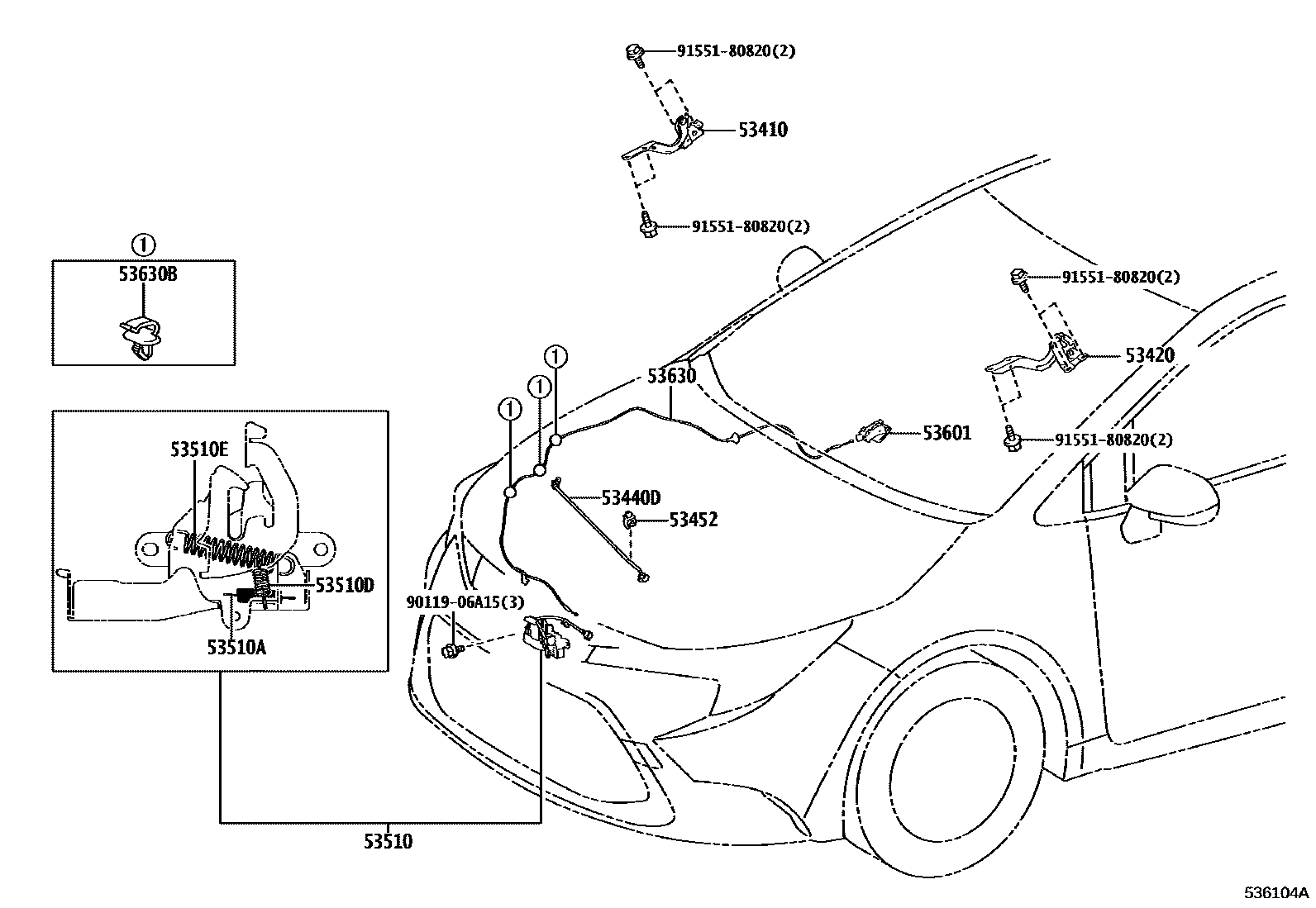

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12740iZRE212201909

53420HINGE ASSY, HOOD, LH

main53420-12730iZRE212201909

53440DSUPPORT ASSY, HOOD

main53440-12220iZRE212201909

53452HOLDER, HOOD STAY

main53452-15020iZRE212201909

53510LOCK ASSY, HOOD

main53510-12C70iZRE212201909

main53510-12C71iZWE219202210

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-18067iZRE212201909

WD=1.8,CW=13

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZRE212201909

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZRE212201909

WD=0.9,CW=21

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iZRE212201909

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12730iZRE212201909

main53630-12731iZWE219202210

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iZRE212201909

9011906A15

main90119-06A15

9155180820

main91551-80820

13 parts on this diagram · 1 diagram in section
