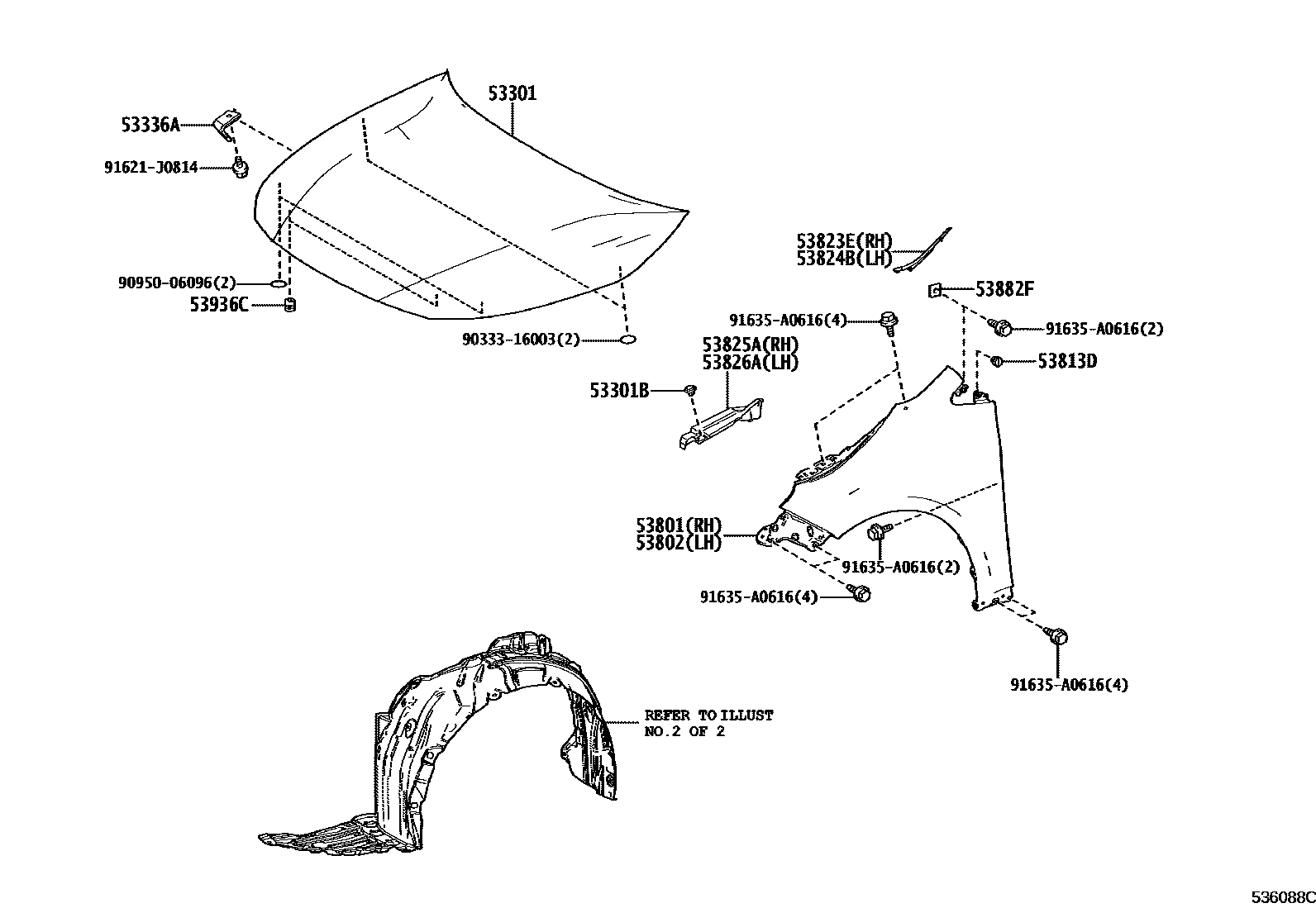

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-12B70iZRE212201909

53301BCUSHION, HOOD BUMPER

main53384-78010iZRE212201909

53336ABRACKET, HOOD STAY

main53336-12030iZRE212201909

53801FENDER SUB-ASSY, FRONT RH

main53801-12B20iZRE212201909

53802FENDER SUB-ASSY, FRONT LH

main53802-12B20iZRE212201909

53813DEXTENSION, FRONT FENDER

main53813-48011iZRE212201909

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-12060iZRE212201909

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-12050iZRE212201909

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-12100iZWE219202210

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-12080iZWE219202210

53882FSEAL, FRONT FENDER

main53882-33060iZRE212201909

53936CCUSHION

main90541-09117iZRE212201909

9033316003

main90333-16003

9095006096

main90950-06096

91621J0814

main91621-J0814

91635A0616

main91635-A0616

16 parts on this diagram · 2 diagrams in section
