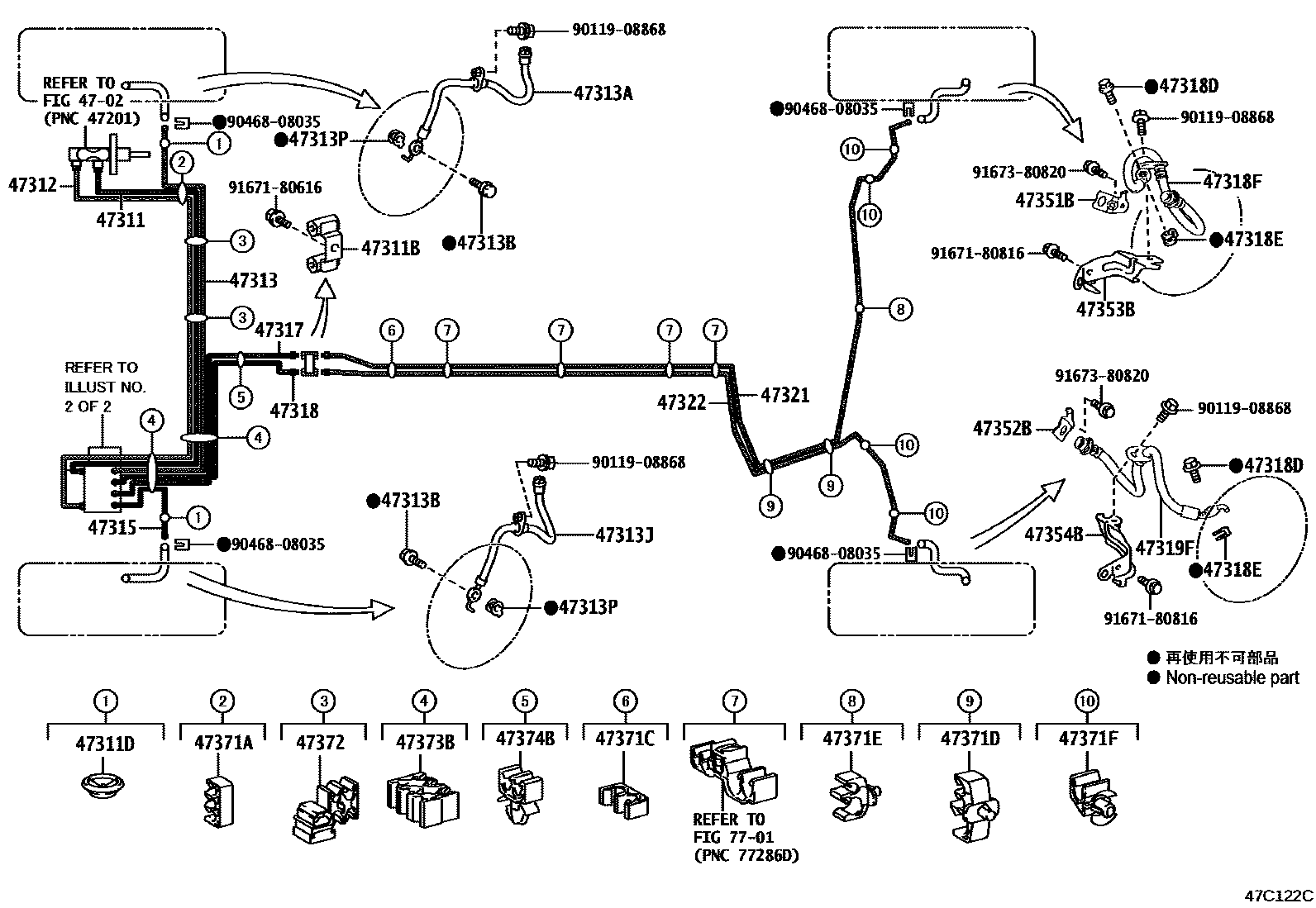

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-12C70iZRE212201909

main47311-12D40iZWE219202210

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZRE212201909

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iZRE212201909

47312TUBE, FRONT BRAKE, NO.2

main47312-12800iZRE212201909

main47312-12870iZWE219202210

47313TUBE, FRONT BRAKE, NO.3

main47313-12A60iZRE212201909

main47313-12B00iZWE219202210

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iZRE212201909-202210

main90947-02K97iZRE212202211

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZWE219202210

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iZRE212201909-202210

main90947-02K98iZRE212202211

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZRE212201909

47315TUBE, FRONT BRAKE, NO.5

main47315-12650iZRE212201909

main47315-12700iZWE219202210

47317TUBE, FRONT BRAKE, NO.7

main47317-12630iZRE212201909

main47317-12670iZWE219202210

47318TUBE, FRONT BRAKE, NO.8

main47318-12760iZRE212201909

main47318-12800iZWE219202210

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZRE212201909

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iZWE219202210

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H48iZRE212201909

main90947-02H95iZWE219202210-202410

main90947-02L64iZWE219202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H48iZRE212201909

main90947-02H98iZWE219202210-202410

main90947-02L65iZWE219202410

47321TUBE, REAR BRAKE, NO.1

main47321-12410iZRE212201909

main47321-12480iZWE219202410

47322TUBE, REAR BRAKE, NO.2

main47322-12570iZRE212201909

main47322-12650iZWE219202410

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iZRE212201909

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iZWE219202210

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-12270iZWE219202210

main47351-47040iZRE212201909

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-12240iZWE219202210

main47352-47040iZRE212201909

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91×2iZWE219202210

main90949-01E43iZRE212201909

47371CCLAMP, BRAKE TUBE, NO.7

main77286-12230×2iZWE219202210

main90464-00904iZRE212201909-202205

47371DCLAMP, BRAKE TUBE, NO.8

main77286-12230×2iZRE212201909

main90949-01E10×4iZWE219202210

47371ECLAMP, BRAKE TUBE, NO.9

main77285-12170iZRE212201909

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E10×4iZRE212201909

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E30×2iZRE212201909

main90949-01E40×2iZWE219202210

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E43×2iZWE219202210

main90949-01E44×2iZRE212201909

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E34iZRE212201909

main90949-01E79×2iZWE219202210

7701

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

9167380820

main91673-80820

37 parts on this diagram · 4 diagrams in section
