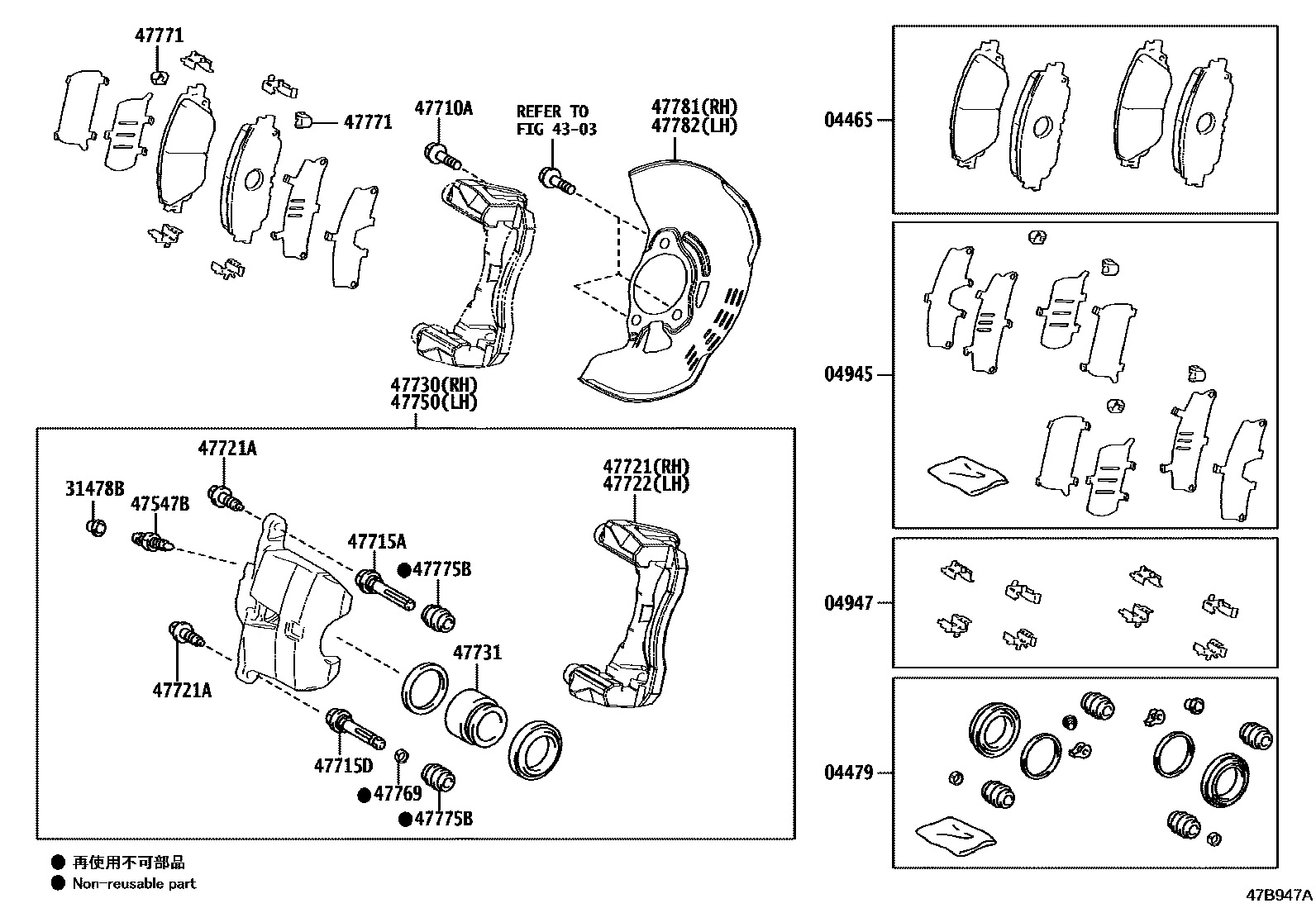

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iZRE212201909

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130iZRE212201909

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12120iZRE212201909

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030iZRE212201909

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRE212201909

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE212201909

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE212201909

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZRE212201909

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZRE212201909

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iZRE212201909

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZRE212201909

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iZRE212201909

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10iZRE212201909

47731PISTON, FRONT DISC BRAKE

main47731-52210iZRE212201909

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10iZRE212201909

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iZRE212201909

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iZRE212201909

47775BBOOT, BUSH DUST, NO.1

main47775-52190iZRE212201909

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iZRE212201909

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iZRE212201909

20 parts on this diagram · 1 diagram in section
