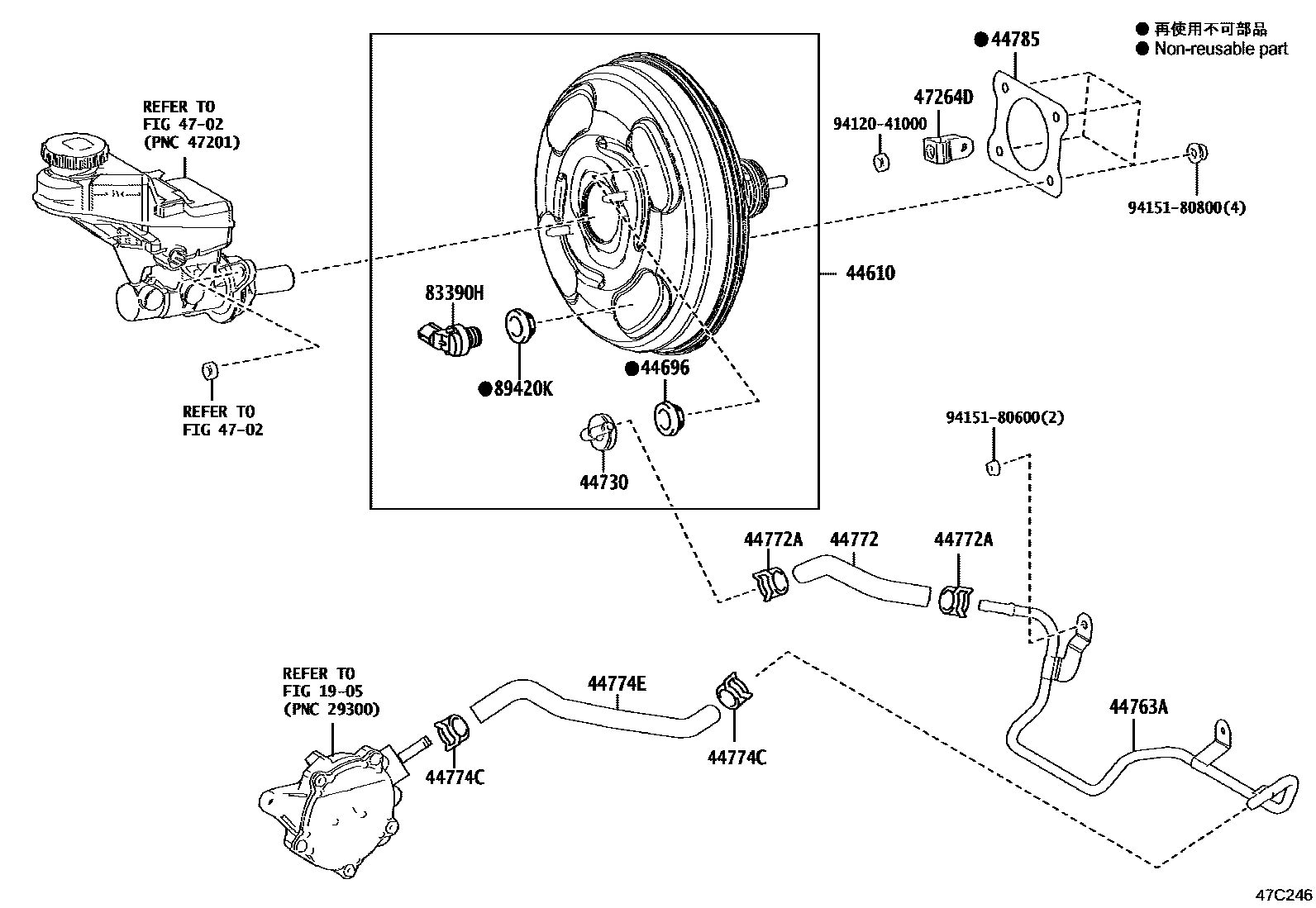

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-12M90iZRE212201909

44696GROMMET, CHECK VALVE

main90480-24439iZRE212201909

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iZRE212201909

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12590iZRE212201909

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810iZRE212201909

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iZRE212201909

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iZRE212201909

44774EHOSE, UNION TO CONNECTOR TUBE

main44774-12870iZRE212201909

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE212201909

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iZRE212201909

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iZRE212201909

89420KGROMMET, VACUUM SENSOR

main90480-24439iZRE212201909

9412041000

main94120-41000

9415180600

main94151-80600

9415180800

main94151-80800

17 parts on this diagram · 1 diagram in section
