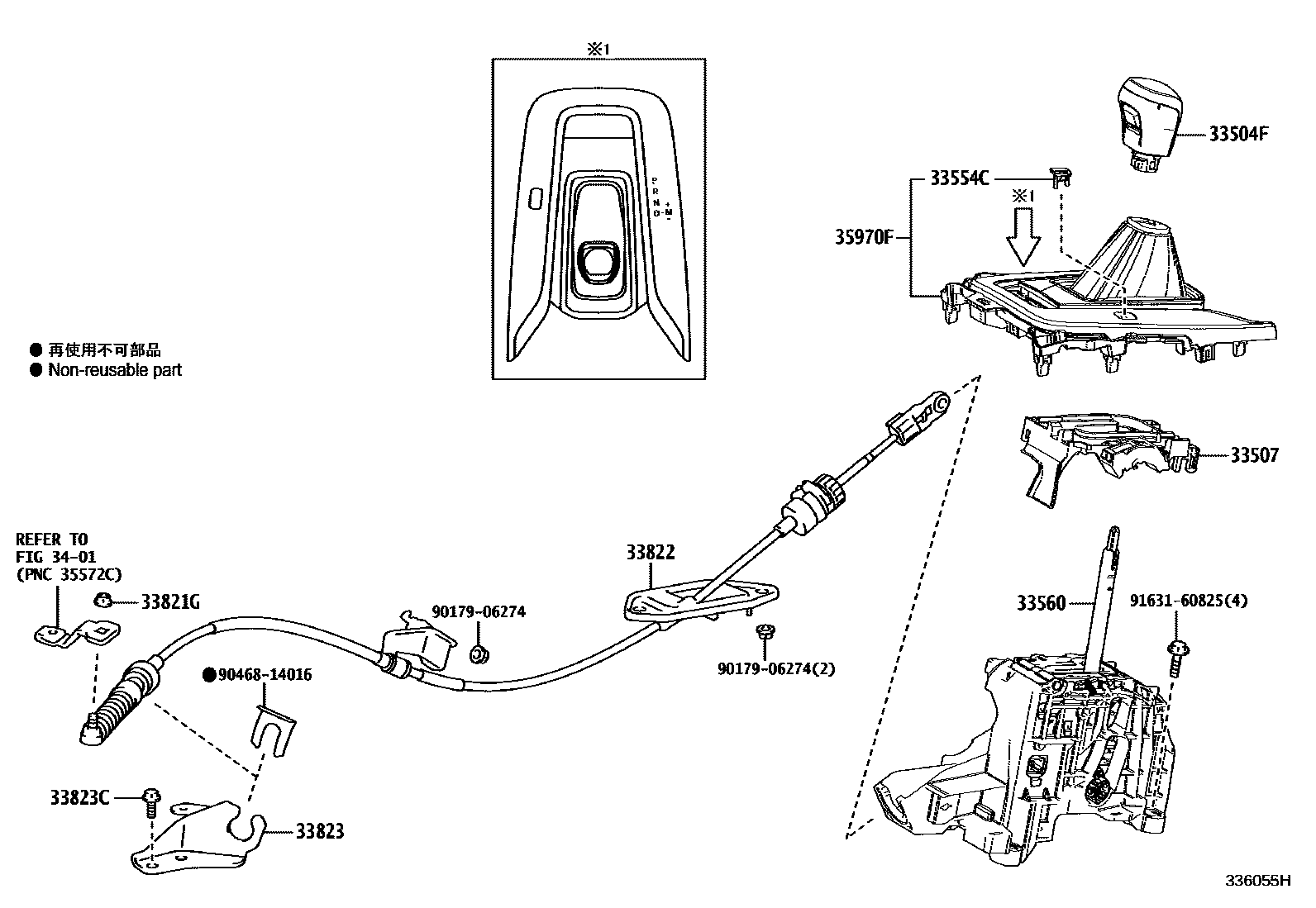

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-33170-C0iZRE212201909

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-12040iZRE212201909

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-12220iZRE212201909

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-10020iZRE212201909

main33560-10030iZWE219202210

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iZRE212201909

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33820-12J50iZRE212201909

main33820-12K00iZWE219202210

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12340iZRE212201909

main33823-12360iZWE219202210

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iZWE219202210

main91671-80820iZRE212201909

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35970FHOUSING ASSY, POSITION INDICATOR

main35970-12470-C3iZRE212201909-202208

BLACK & SILVER,TRIM2#

main35970-12600-C1iZRE212202209

BLACK & SILVER,TRIM2#

main35970-12620-C1iZWE219202210

BLACK & SILVER,TRIM2#

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

13 parts on this diagram · 2 diagrams in section
